Description

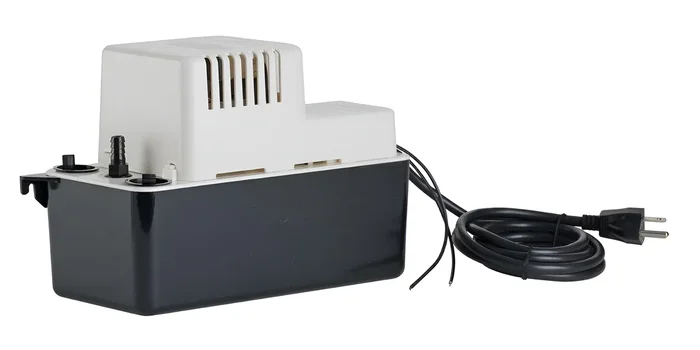

Little Giant 554401 115V Condensate Removal Pump
Little Giant 554401 115V Condensate Removal Pump is engineered for high-efficiency furnace applications, ensuring efficient removal of condensation with automatic operation thanks to its reliable float switch. This pump is a vital component for maintaining optimal performance in HVAC systems, preventing overflow and potential water damage.Designed to handle a capacity of 0.5 gallons, the pump features a robust flow rate of 65 gallons per minute, making it ideal for residential and commercial use. Its compact dimensions-7 inches in height, 11 inches in length, and 5 inches in width-allow for flexible installation in various spaces. Constructed from durable ABS plastic, it boasts a powerful 1/50 horsepower motor that operates on 115 volts, drawing 60 watts of power for efficient performance. The Little Giant Condensate Removal Pump is equipped with a 6-foot power cord, providing ample reach for connection. With a 3/8-inch discharge and a maximum head height of 15 feet, it effectively manages water treatment applications. Safety is paramount; models can be wired to sound an alarm or shut down the air conditioner, safeguarding against overflow issues. Featuring barbed end connections, this pump offers easy integration into existing systems. Its versatility and reliability make it an excellent choice for both builders and knowledgeable homeowners looking to enhance their plumbing solutions. The Little Giant 554401 not only combines innovative design with proven durability but also ensures a comfortable and efficient environment in any setting.
115V Condensate Removal Pump
AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiersTHERMALLY PROTECTED MOTOR: 1/50 HP, 1 Amp, 60 Watts, 115 Volts, 60 Hz, fan-cooled motor; CSA listed in the USA and CanadaBUILT TO LAST: stainless steel motor shaft, thermal overload protected motor; CSA certified to US and Canadian standardsINCLUDES: 3/8-inch O.D. barbed discharge adapter with built-in check valve, three 1/8-inch diameter openings allowing multiple appliances to use one pump; DOES NOT INCLUDE WIRING FOR SAFETY SWITCHSPECIFICATIONS: 1/50 HP; 115 Volts, 1 Amp, 60 Watts, 3/8-inch OD barbed discharge, 65 GPH at 1-ft head, 15-foot shut-off, maximum 6.5 PSI, 3 inlet drain holes, 6-ft cord; max. water temperature: 140 F
Attributes
AMP: 1
Capacity: 0.5 gal
Collection: VCMA-15 Series
Connection Type: Barbed
Cord Length: 6 ft
Depth: 7 in
Discharge: 3/8 in
Discharge Pressure: 6.5
End Connection 1: Barbed
End Connections: Barbed
Flow Rate: 65 gpm
Frequency: 60
Height: 7 in
Horsepower: 1/50 hp
Impeller: Polypropylene
Length: 11 in
Material: Plastic
Material Type: ABS
Maximum Feet of Head: 15
Power Source: AC
Proposition 65: WARNING THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS, INCLUDING CARBON BLACK, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER. FOR MORE INFORMATION GO TO www.P65Warnings.ca.gov
Pump Application: Water Treatment
Pump Body Material: Plastic
Upc: 010121544017
Volts: 115V
Watts: 60 W
Width: 5 in
