Description

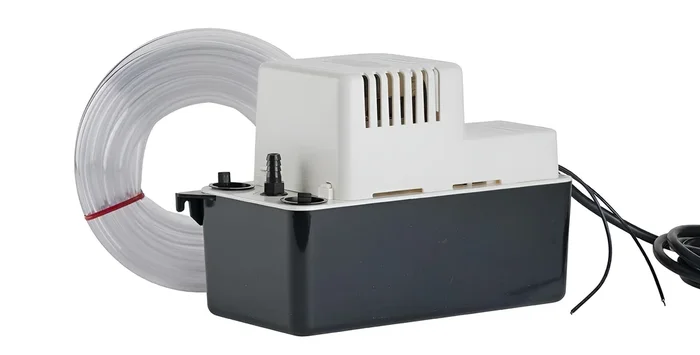

Little Giant 554461 230V Condensate Removal Pump
Little Giant 554461 230V Condensate Removal Pump efficiently removes condensate and wastewater from spaces where gravity drainage is not feasible. Designed with reliability in mind, this pump features a thermally protected, fan-cooled motor that ensures optimal performance while preventing overheating. It is equipped with a backflow preventing check valve and three inlet drain holes, making it suitable for a variety of applications, particularly for high-efficiency furnace condensation. The pump operates automatically using a float switch, providing peace of mind by activating only when needed. For added safety, models can be wired to a safety switch, which can trigger an alarm or shut down the air conditioner to avert overflow situations. This feature is particularly valuable in residential or commercial settings where maintaining optimal functionality is critical. With a flow rate of 80 gallons per hour and a maximum head of 17 feet, the Little Giant 230V Condensate Removal Pump is capable of handling substantial liquid removal demands. Its compact dimensions-measuring 11 inches in length, 5 inches in width, and 7-3/100 inches in height-allow for easy installation in confined spaces. The pump’s durable construction includes a polypropylene impeller and an ABS pump body, ensuring longevity and resistance to wear. Powering the pump is straightforward; it operates on 230V and consumes 75 watts of energy. The 6-foot cord length adds flexibility during installation. For professionals and homeowners alike, the Little Giant 554461 provides a dependable solution for effective condensate removal, combining innovative design with proven durability to enhance the efficiency of your HVAC systems.
230V Condensate Removal Pump
AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiersHIGH PERFORMANCE MOTOR: 1/30 HP, 0.5 Amps, 75 Watts, 230 Volts, 60 Hz, thermally protected, fan-cooled motor; CSA listed in the USA and Canada; note: 230V plug does not fit standard wall outletsBUILT TO LAST: stainless steel motor shaft, thermal overload protected motor; CSA certified to US and Canadian standardsINCLUDES SAFETY SWITCH, 20-FT VINYL TUBING AND CHECK VALVE: safety switch can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflowSPECIFICATIONS: 3/8-inch OD barbed discharge, 80 GPH at 1-ft head, 17-ft shut-off, max 7.4 PSI, 3 drain holes, 6-ft cord with 230V plug; 140 F max water temperature; safety switch; 20-ft. tubingSuitable for high-efficiency furnace condensationSafety switch models can be wired to sound alarm or shut down air conditioner to prevent overflow
Attributes
AMP: 0.5
Collection: VCMA-20 Series
Cord Length: 6 ft
Discharge: 3/8 in
End Connection 1: Barbed
End Connection 2: Barbed
End Connections: Barbed
Flow Rate: 80 gph
Frequency: 60
Height: 7 in
Horsepower: 1/30 hp
Impeller: Polypropylene
Length: 11 in
Maximum Feet of Head: 17
Power Source: Electric
Proposition 65: WARNING THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS, INCLUDING CARBON BLACK, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER. FOR MORE INFORMATION GO TO www.P65Warnings.ca.gov
Pump Application: Furnaces
Pump Body Material: Plastic
Pump Mounting: Vertical
UL Listed: No
Upc: 010121544611
Volts: 230V
Watts: 75 W
Width: 5 in
