Description

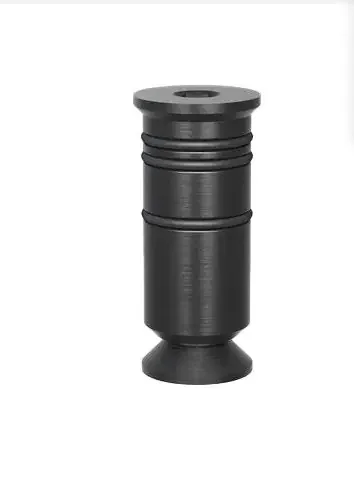

The Siegmund Long Burnished Connecting Bolt was especially designed as a fixed long-term connection of 3 large Siegmund Elements, e.g. tables or U-shaped squares.
The countersunk hexagon socket and the ability of the clamping bolt to center itself, enable easy assembly. The flat head and the flat bolt contain a hexagon socket for clamping. The connecting bolt provides a sturdy screw connection. The Connecting Bolt should not be used in oblong holes.
Specs and Features:
– Item No. 2-280561
– Burnished
– For Connecting 3 Large Siegmund Components
– With Hexagon Socket
– Length: 75mm (2.95”)
– Diameter: 28mm (1.10”)
– Shearing Force: 200kN
– Tightening Torque Steel: 25Nm
– Tensile Force: 10N
– Weight: 0.45 Ibs.
