Description

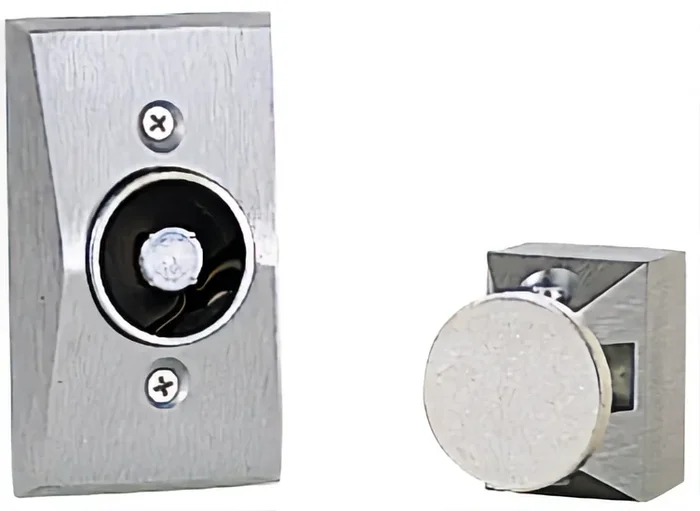

LCN SEM7830AL Low Profile Wall Mount Hold Open Magnet, Aluminum Finish
LCN SEM7830AL Low Profile Wall Mount Hold Open Magnet in a sleek aluminum finish offers a reliable and efficient solution for door control in high-traffic environments. Designed specifically for use with the 7800 Series, this magnet provides a holding force of 35 pounds, ensuring doors remain securely open when needed. Constructed from durable die-cast aluminum, the SEM7830AL is built to last, tested beyond industry standards to guarantee performance and longevity. With dimensions of 2-13/16″ x 4-5/8″ x 2-1/2″, it fits seamlessly in various applications, including schools, hospitals, and government facilities. The fire-rated design ensures safety compliance, while the UL 10C rating provides peace of mind in critical circumstances. This unit operates on a tri-voltage system and requires a wired power supply, making it versatile for different setups. It’s compatible with push buttons, readers, or sensors, further enhancing its functionality. Additionally, LCN backs this product with a limited one-year warranty, reflecting their commitment to quality and customer satisfaction. The SEM7830AL is more than just a magnet; it’s a key component in maintaining safety and security within your facility.
Low Profile Wall Mount Hold Open Magnet 689 Aluminum Finish
LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.
- SEM 7820 Magnet Features
- Tri-voltage design with 35lbs. of holding force
- Floor-mounted
- Now available armature extensions from LCN
- SEM 7820 magnets are shipped with die cast housing, cover, armature(s) and WMS screw pack
- UL listed for smoke barrier or labeled fire doors
- SEM 7820 available in Aluminum and Dark Bronze finishes
- SEM 7830 Magnet Features
- Surface wall-mounted
- SEM 7830 magnets are shipped with die cast housing, cover, armature and WMS screw pack
- Suitable for use in pocket door installations
- SEM 7830 available in Aluminum and Dark Bronze finishes
- SEM 7840 Magnet Features
- Low profile recessed wall-mounted
- SEM 7840 magnets are shipped with die cast housing, cover, armature and WMS screw pack
- SEM 7840 available in Aluminum and Dark Bronze finishes
- SEM 7850 Magnet Features
- Standard profile recessed wall-mounted
- SEM 7850 magnets are shipped with die cast housing, cover, armature and WMS screw pack
- SEM 7850 available in Aluminum and Dark Bronze finishes
- Many LCN Parts or Components Have Casting or Forging Numbers Stamped or Raised on the Surface
- Many Parts are Series Specific, Specify When Ordering
- Many Parts are Finished, Specify When Ordering
- For Use with 7800 Series
- LCN Closers are Made with Premier Materials and are Tested Far Beyond the Industry Requirements
Attributes
Accessories: WMS Screw Pack
Alternate Codes: SEM7830AL
Amp Draw: .020A at 24VACDC/120VAC, .030A at 12VDC
Armature Size: 1-5/8 In. Projection
Baa Qualified: Yes
Category: Commercial Electronic Devices
Certifications: 100 Hour Salt Spray, A156.15, ANSI & UL Listed, Buy American Act, NFPA 101, UL 10C
Current Draw: .020A @ 120VAC, .020A @ 24VAC/DC, .030A @ 12VDC
Dimension: 2-13/16″ x 4-5/8″ x 2-1/2″
Door Application: Stops, Holders & Bumpers
Door Stop Type: Electronic Door Holder
Fasteners: Machine Screws, Wood Screws
Finish: Aluminum
Finish Code: 689
Finish Color: Aluminum
Finish : Aluminum Painted
Fire Rated: Yes
Function: Electrically Locked (Fail Safe)
Grade: Grade 1
Hazardous Material: NO
Holding Force: 35 lbs
Limited Warranty: 2 Years
Magnet Size: 2-13/16″ x 4-5/8″ x 2-1/2″
Manufacturer: LCN Closers
Manufacturer Warranty: Limited 1 Year Warranty
Material: Die Cast Aluminum
Mounting: Recessed Wall Mount
No Of Inners: 1
Operating Voltage: 12VDC/24VACDC/120VAC
Options: Armature, Cover
Order_ Qty: 1
PO date: 2024-09-18
Power Supply: Wired
Product Type Used With: Push Button, Reader, or Sensor
Projection: 4-1/8″
Series: SEM 7800 Series
Size: 2-13/16″ x 4-5/8″
Subcategory: Maglocks
Subtype: Magnetic Door Holders
Type: ACCESS CONTROL
Ul Listing Type: UL 10C Rated
Voltage: 12V AC, 12V DV, 24V AC, 24V DC
Voltage Type: VAC – Alternating, VDC – Direct
