Description
Low Voltage 3 Light Switch LED Touch Plate Mystique

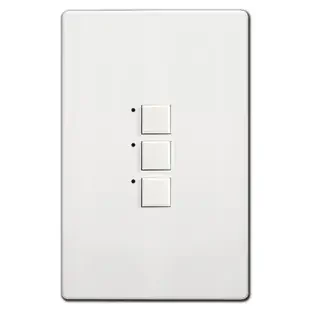

Mystique Touchplate light control has 3 LED switches and comes with a white screwless cover plate. Works in new or vintage Touch Plate systems. Buttons control 3 light locations.
Features
- for 2-wire low voltage Touch Plate system
- 1 amp at 28 volts contact rating
- 3 momentary contact light switches; dry contact
- 3 green LED lights – illuminated when light(s) is on
- 4-7/8″ high x 3-1/8″ wide by 1/4″ deep screwless cover (snaps into sub-plate)
- 4-5/8″ high x 2-13/16″ wide inside sub plate
- sub plate has box-mounted screw hole placement of 3-9/32″
- two 1″ installation screws (for sub plate) included
- American made
Buy Touch-Plate Switches, Controllers, Relays, and Covers.
Not compatible with vintage GE, Bryant, Sierra, or Remcon 3-wire systems – order the 6-Button Classic Low Voltage Unit if you currently have 3 switches to replace in a 3 wire low voltage system – you will have 1 “on” and 1 “off” button for each of these old switches.
