Description
Dormakaba 5010XSWL26D Kaba Schlage C Mechanical Pushbutton Exit Trim with Winston Lever, Satin Chrome
Simplex Dormakaba 5010XSWL26D Mechanical Pushbutton Exit Trim Lock combines convenience and security in a robust design. This lock features a Kaba Schlage C cylinder paired with a stylish Winston lever in a satin chrome finish, making it an ideal choice for both public and private spaces. Designed for ease of use, this fully mechanical lock eliminates the hassles of key management, battery replacements, and complex programming. Users benefit from a single access code, simplifying access for all. The lock can be easily programmed directly via the keypad without the need for removal from the door, facilitating quick changes when needed. Built to withstand heavy use, the Dormakaba 5010XSWL26D includes vandal-resistant, solid metal pushbuttons and extra heavy-duty, solid cast housings that ensure durability in both indoor and outdoor applications. The ADA-compliant levers provide added accessibility, making it a suitable choice for various environments. Measuring 4-1/4″ x 8-7/8″ with a projection of 4-1/16″, this exit trim lock accommodates door thicknesses from 1-3/8″ to 2-1/4″. Backed by a 3-year limited warranty, the Simplex 5000 Series offers reliable performance and peace of mind for building professionals and homeowners alike.

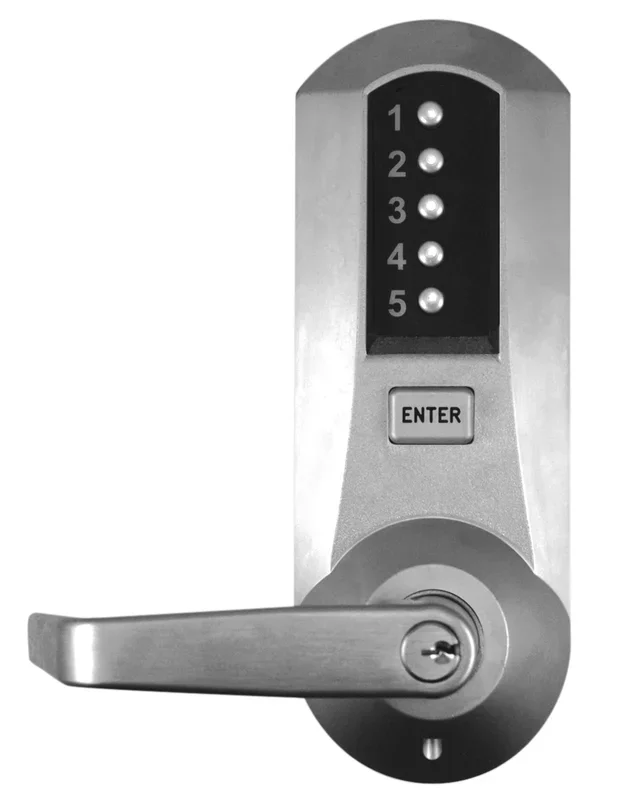

Mechanical Pushbutton Exit Trim Lock with Kaba Schlage C Cylinder and Winston Lever Satin Chrome Finish
Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
- Fully Mechanical Lock Eliminates the Material and Labor Expense of Battery Replacements
- Single Access Code—One Easy-to-Manage Code for All Users
- Vandal Resistant, Solid Metal Pushbuttons
- Extra Heavy-Duty, Solid Cast Housings, Solid Cast; ADA-Compliant Levers, and Wear Tested for Extensive Use in Indoor and Outdoor Applications
- Lock is Easily Programmed Via Keypad Without Removing Lock From the Door
Attributes
Category: Exit Devices
Design: Winston Lever
Dimension: 4-1/4″ x 8-7/8″; 4-1/16″ Projection
Door Thickness: 1-3/8″ to 2-1/4″
Finish: Satin Chrome
Finish Code: 26D
Fire Rated: No
Function: Combination Controlled Lever
Hazardous Material: NO
Includes Cylinder: Yes
Keyway: Schlage C Keyway
Lever Knob Design: Winston Lever
Manufacturer Warranty: 3 Year Limited Warranty
Material: Cast Metal
No Of Inners: 1
Order_ Qty: 1
PO date: 2024-11-01
Series: 5000 Series
Subcategory: Exit Device Trims
Subtype: Exit Device Trims
Type: Exit Devices
Ul Listing Type: UL/ULC
Upc: 036448837700
