Description

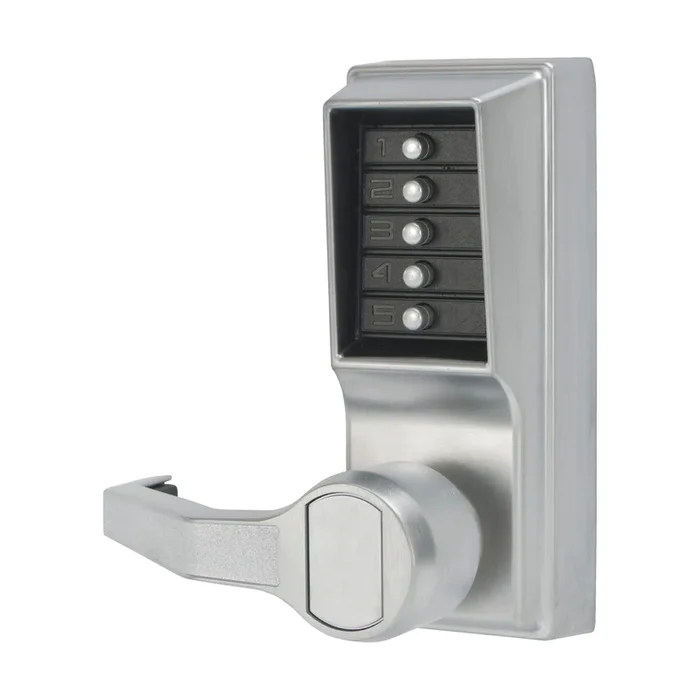

Dormakaba LL1032-26D-41 Pushbutton Mechanical Lock
Kaba Access Dormakaba LL1032-26D-41 Mechanical Pushbutton Lock offers a reliable and efficient solution for controlling access between public and private spaces. This mechanical pushbutton cylindrical lever lock is designed with convenience in mind, eliminating the need for keys or cards. With its combination entry and passage functions, users can easily change access codes in seconds without removing the lock from the door. Constructed with a heavy-duty cylindrical lock housing, the LL1032 features a cast front housing and fixed ADA-compliant levers, ensuring durability and accessibility. It fits doors with a thickness of 1⅜” to 2¼” and can be installed on both wood and metal doors, making it versatile for various applications. The vandal-resistant numeric keypad adds an extra layer of security, while the 2-3/8″ backset ensures compatibility with standard door preparations. This lock is not only weather-resistant but also boasts a 3-hour UL/ULC fire rating for “A” labeled doors, making it a safe choice for commercial environments. With a 3-year warranty and a straightforward installation process, the Kaba Access LL1032-26D-41 is an excellent investment for those seeking a secure and user-friendly locking system.
Mechanical Pushbutton Lock
Pushbutton Cylindrical Lever Lock, Combination Entry/Passage Functions, 2-3/8″ Backset, 1/2″ Throw Latch, Satin Chrome Finish, Left Hand/Left Hand Reverse
Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
Eliminates the material and labor expense of battery replacements and has a single access-code.
- Construction:Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
- Door Preparation:Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
- Door Thickness:1⅜” (35 mm) to 2¼” (57 mm)—Pre-assembled to accommodate 1⅝” (41 mm) to 2″ (51 mm) doors
- Numeric Keypad:Vandal resistant, solid metal pushbuttons
- Handing:Factory-handed; not field reversible
- Backset:2¾” (70 mm), 2⅜” (60 mm)
- Latch:½” (13 mm) throw latch, ¾” (19 mm) throw latch (optional)
- Minimum Stile Recommended:5″ (127 mm)
- Strike:Standard strike plate; ASA strike plate
- Accessibility Standard:Americans with Disabilities Act (ADA); fixed ADA-compliant levers
- Durability:D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
- Fire Rating:3-hour UL/ULC fire rating for “A” labeled doors
- Warranty:3-year warranty
Attributes
Manufacturer surcharge: 7.0%
Access Function: Field Configurable
Accessible: Yes
Ada Compliance: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Door Thickness: 1-3/8″ to 2-1/4″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 3 – Cylindrical Lock, Combination Entry, and Passage
Handing: Left Hand/Left Hand Reverse
Installation: Commercial
Keypad Type: Mechanical
Latch Backset Dimension: 2-3/8″
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Years
Lock Platform: Cylindrical Lock with Keypad Trim
Pack Qty: 1
Series: Simplex L1000 Series
Series Name: Simplex
Ship Weight: 9 lbs.
Std Strike Type: ASA
Subtype: Cylindrical Locks with Trim
Type: Integrated and Pushbutton
Unit of Measure: Each
Resources
- Simplex 1000 / L1000 – How to Reset Unknown Combination – New Style Chamber
- Simplex L1000 Series Cut Sheet
- Simplex Product Catalog
