Description

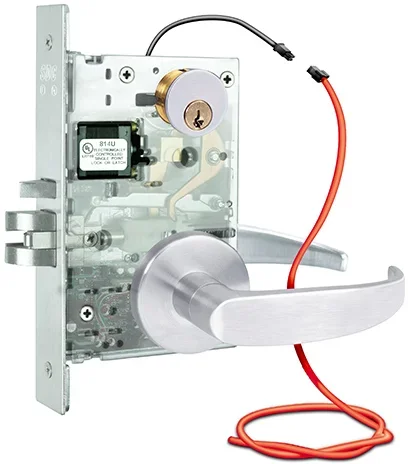

Security Door Controls Z7652-R-Q MLR Motorized Electrified Mortise Lock Body, Fail Secure, 24VDC, Satin Chrome
Security Door Controls Z7652-R-Q (MLR) Motorized Electrified Mortise Lock Body Only offers an exceptional solution for access control in commercial, industrial, and institutional environments. Designed for locked outside-only operation, this fail-secure lock ensures that doors remain secured even when the power is disconnected, making it ideal for high-security applications such as inner offices or equipment rooms. Constructed with a grade 1 heavy-duty mortise design, the Z7652-R-Q features a motorized latch retraction (MLR) system, allowing for seamless integration with automatic door operators while maintaining fire door integrity. Its vandal-resistant clutch enhances durability and reliability, suitable for settings where physical abuse is a concern. With field-reversible handing and compatibility with Schlage trim options, this lockset adapts easily to various installation needs. The satin chrome finish not only provides an attractive appearance but also ensures long-lasting wear resistance. Additional features include a 3/4″ stainless steel anti-friction latchbolt and ANSI-compliant backset, making it a versatile choice for retrofit or new construction projects. Specifications include a door thickness of 1-3/4″, an input voltage of 24 VDC, and weight of 7 lbs. The Z7652-R-Q is UL 10C and ULC-S104 certified, ensuring compliance with safety standards while delivering dependable performance.
(MLR) Motorized Electrified Mortise Lock Body Only, Locked Outside Only, Fail Secure, 24VDC, Right Hand (Field Reversible Handing), 626/US26D Satin Chrome
Notice: The info below is not item specific.
Motorized electric latch retraction (MLR) mortise locksets replace existing mechanical or electrified mortise locksets for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse are required. These code compliant electric mortise locksets stay latched even when unlocked, maintaining fire door integrity. SDC’s 7600 series motorized latch retraction controlled mortise locksets incorporate a grade 1 heavy duty mortise lockset and vandal resistant clutch – proprietary to all SDC locksets. The motorized latch retraction feature is designed for use on fire rated doors to provide access control and building and fire life safety compliance. Door stays latched even when de-energized. Ideal for automatic door operator applications. All SDC mortise locks feature a mortise cylinder to manually retract the latch.
Features:
- Heavy duty mortise design
- New or retrofit construction
- Vandal resistant clutch
- MLR control
- Key latch retraction
- Field selectable function
- Field reversible handing
- Schlage trim compatible
- Optional: Request-to-exit (REX)
- Optional: Latch status (LS)
- Optional: Trim options
Models:
- Z76: Motorized latch retraction controlled mortise lock
Applications:
- Failsecure Operation: Locked when de-energized, the failsecure mode is recommended for security applications, such as inner offices, equipment rooms and security mantraps. Loss of power causes all doors to lock. Battery backup is required for continued operation during a power loss.
Specifications:
- Type: Mortise, MLR control
- Door Thickness: 1-3/4″
- Door Prep: ANSI A156.13
- Backset: 2-3/4″
- Faceplate: 8-1/32″ x 1-5/16″ x 7/32″
- Case: 6″ x 4″ x 1″
- Latchbolt: 3/4″ Throw, stainless steel, anti-friction
- Deadlatch: Above latchbolt
- Strike: Standard ANSI 4-7/8″
- Weight: 7 lbs
- Input: 24 VDC ± 10%
- Current Draw: 620 mA Inrush, 160 mA continuous
- Monitoring Contacts: SPDT 5 Amps @ 30 VDC resistive
Specify Function:
- 32: Locked both sides, failsecure
- 52: Locked outside only, failsecure
- 20: Unlocked both sides, passage
Specify Handing:
- L: Left Hand (LH)
- LR: Left Hand Reverse (LHR)
- R: Right Hand (RH)
- RR: Right Hand Reverse (RHR)
Specify Trim:
- E: Eclipse Rose
- G: Galaxy Rose
- N: Nova Rose
- 07: Schlage 07 Rose
- EE: Eclipse Escutcheon
- GE: Galaxy Escutcheon
- NE: Nova Escutcheon
- 07E: Schlage 07 Escutcheon
Finishes:
- Q/626 – Dull chrome
- P/625 – Bright chrome
- C/605 – Bright brass
- D/606 – Dull brass
- F/611 – Bright bronze
- G/612 – Dull bronze
- H/613 – Dark oil rubbed bronze
- S/629 – Bright stainless
- U/630 – Dull stainless
Attributes
Access Type: Electric Latch Retraction, Keyed Latch Retraction
Alternate Codes: SDCZ7652, SDCZ7652 LR Q LESS TRIM, SDCZ7652RQ, Z7652, Z7652-R-Q, Z7652RQ
Backset: 2-3/4″
Category: Commercial Electric Locks, Deadbolts, Electric Locks, Lock Sets, Mortise Electric, Mortise Electric Locks, Mortise Locks, Standalone/Pushbutton Locks
Certifications: UL 10C, ULC-S104
Current Draw: 160 mA Continuous, 620 mA Inrush
Cylinder Type: 6-Pin, Mortise Cylinder
Door Application: Electric Locks
Door Bore Prep: ANSI A156.13
Door Thickness: 1-3/4″
Faceplate Height: 8-1/32″
Faceplate Width: 1-5/16″
Fail Safe/ Fail Secure: FSE- Fail Secure
Features: Vandal Resistant Lever Clutch Mechanism
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Locked Outside Only
Grade: Grade 1
Handing: Field Reversible, Right Handed
Latch Throw: 3/4″
Latchbolt Type: Anti-Friction
Lock Body Dimensions: 6″ x 4″ x 1″
Lock Category: Electric Unlocking Mortise Lock
Manufacturer: Security Door Controls
Series: 7600
Strike Type: Standard ANSI 4-7/8″
Voltage: 24
Voltage Type: VDC – Direct
Weight: 7lbs
