Description

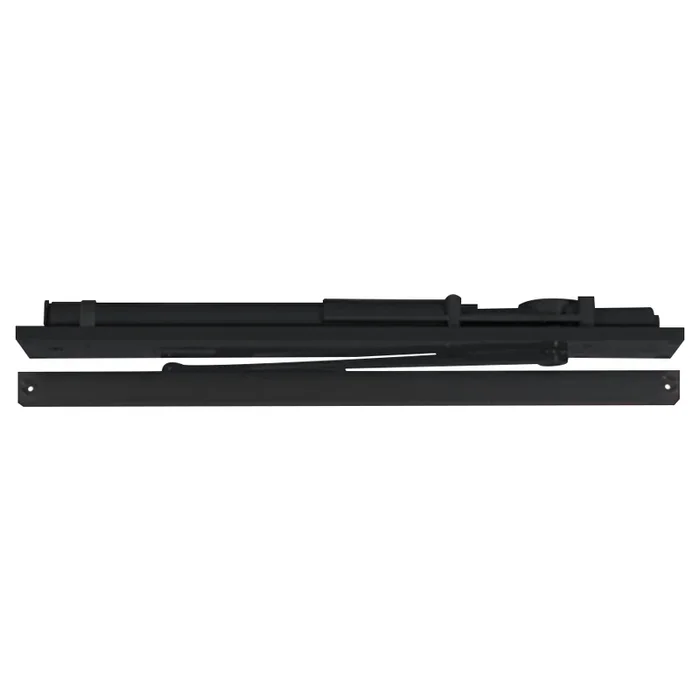

LCN 2033-STD-DKBZ-RH Narrow Concealed Heavy Duty Closer, Right Hand, Grade 1, ADA Size 3, Dark Bronze
LCN Closers 2033-STD-DKBZ-RH Narrow Overhead Concealed Heavy Duty Closer combines functionality with a sleek design. This right-hand model features a standard track arm and meets the stringent ANSI/BHMA A156.4 Grade 1 certification, ensuring top-tier performance and reliability. Designed for concealed installation in a narrow 1-3/4″ aluminum transom, it complies with ADA requirements for reduced opening force, making it ideal for high-traffic areas. The 2033 model utilizes a robust cast iron cylinder and a one-piece forged steel piston, providing durability and smooth operation. With separate regulation for closing and latching speeds, you can expect quiet and efficient door control. This closer is equipped with an all-weather fluid, ensuring consistent performance regardless of environmental conditions.The dark bronze powder coat finish not only enhances its aesthetic appeal but also offers added protection against wear and tear. Additionally, this heavy-duty closer carries a 15-year limited warranty, underscoring its long-term value. Fasteners included in the package allow for easy installation, making it a practical choice for both building professionals and knowledgeable homeowners seeking reliable door control solutions.
Narrow Overhead Concealed Heavy Duty Closer, Right Hand Standard Track Arm, Grade 1, ADA Size 3, WoodMetal WMS Screw Pack, 695/DKBZ Dark Bronze Powder Coat
Notice: The info below is not item specific.
The heavy-duty 2030/5030/6030 series Pacer closers are designed for concealment in a narrow minimum 1-3/4″ aluminum transom, meeting ANSI/BHMA A156.4 grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A forged steel single-lever arm for the 2030 and 6030 series, a forged steel double-lever arm for the 5030 series and roller assembly for all three series provide smooth, quiet door control, with separate regulation of general closing speed and latching speed. The 5030 Series arm joints and shoe adapt to uneven trim. All three series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for all three series include a cast iron cylinder; a one-piece forged steel piston; a high-efficiency, full-complement, low-friction bearing; tamper-resistant regulating screw and all-weather fluid. Optional plated finishes accent the arm, fasteners and finish plate for all three series.
Features:
- Cast iron cylinder
- Full-complement bearing
- 1-1/8″ diameter piston
- All-weather fluid
- Forged steel arm
- 15-year warranty
- Designed to fit in a narrow header
- 2030 and 5030 Series have a handed design, 6030 Series has a non-handed design
- 2030 and 6030 Series have adjustable spring sizes 1-5, 5030 Series has adjustable spring sizes 1 and 3-6
Specifications:
- Certifications: Grade 1 – ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA – buy American Act
- Body Construction:
- Cast iron body
- Full complement bearing
- 1-1⁄8″ diameter piston
- 11⁄16″ diameter double heat treated pinion journal
- Fluid: All weather fluid
- Handing: Handed
- Size: Sized 1-5
- Fasteners: Wood and machine screws (WMS)
- Mounting: Concealed (in tube); aluminum frame requires minimum 1-3/4″ (44 mm) x 4″ (102) mm) tube
Finishes:
- 622 – Matte black
- 689 – Aluminum
- 690 – Statuary bronze
- 691 – Light bronze
- 693 – Gloss black
- 695 – Dark bronze
- 696 – Brass
Attributes
Alternate Codes: 2033-STD-DKBZ-RH, 2033STDDKBZRH
Arm Function: Non-Hold Open
Arm Type: Track Arm
Category: Concealed Overhead Closers, Concealed Overhead Door Closers, Door Closers, Glass Aluminum Hardware, Overhead Concealed Closers
Certifications: A156.4, ANSI, UL Listed
Closer Type: Overhead Concealed
Cylinder Type: Standard
Door Application: Concealed Overhead Closers, Door Closers
Fasteners: Machine Screws, Wood Screws
Finish Code: 695
Finish Color: Dark Bronze, Sprayed Duranotic
Grade: Grade 1
Handing: Right Handed
Manufacturer: LCN Closers
Material: Aluminum
Mounting: Concealed, In Tube (1-3/4in Tube)
Series: 2030
Spring Size: 3
