Description

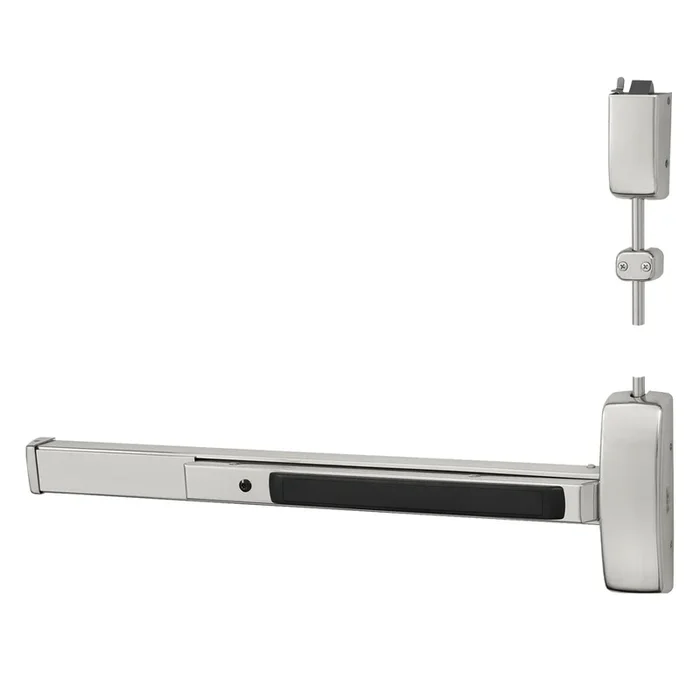

Sargent NB8774F-12V ETL RHR 32D NB-SVR Fail Secure Exit Device
Sargent NB8774F-12V ETL RHR 32D NB-SVR Exit Device, Fail Secure provides robust security and reliable performance for commercial applications. This Grade 1 Surface Vertical Rod Exit Device features a wide stile pushpad and is designed for doors up to 84 inches in height. With a 36-inch device length, it is suitable for standard door widths ranging from 33 to 36 inches, accommodating both wood and metal doors that are 1-3/4 inches to 2-1/4 inches thick. The NB8700 Series exit device excels in durability, exceeding ANSI/BHMA Grade 1 criteria for strength and cycle performance. Its modular construction minimizes maintenance needs, ensuring long-lasting reliability in high-traffic environments. The device accepts electrified trim functions and operates in a fail-secure mode. Hex key dogging allows for easy operation, while the satin stainless steel finish (630/US32D) adds a sleek appearance. Designed with ADA compliance in mind, the Sargent NB8774F is an ideal choice for facilities requiring both aesthetics and security. With a limited warranty of five years, you can trust in its quality and performance. Elevate your building’s safety with this advanced exit device, engineered for peace of mind and functionality.
NB-SVR Exit Dev, Fail Secure
Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36″ Device, 84″ Door Height, Device to Accept Electrified Trim Function, L Non-Keyed Electric Lever, Less Bottom Rod, Fail Secure, Hex Key Dogging, Satin Stainless Steel Finish, Right Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The NB8700 Series is a top latch surface vertical rod exit device.
The NB8700 Series is part ofSargent’s full line of exit devices that provide the best combination ofsimplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.
- Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- Prefix; 4-1/2″ (114mm) minimum stilewith trim and 3-1/2″ (44mm) minimum stile without trim
- Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84″
Door Material: Metal or Wood
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 33″ to 36″
Electric Options: Fail Secure
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Right Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Device to Accept Electrified Trim
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: No
Series: NB8700 Series Surface Vertical Rod Exit Devices
Ship Weight: 18 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 646
Trim Design: Non-Keyed Electric Lever
Trim Part No: 774-8 ETL 12V RHRB 26D
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
Resources
- 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
- NB8700 Series Installation Instructions
