Description

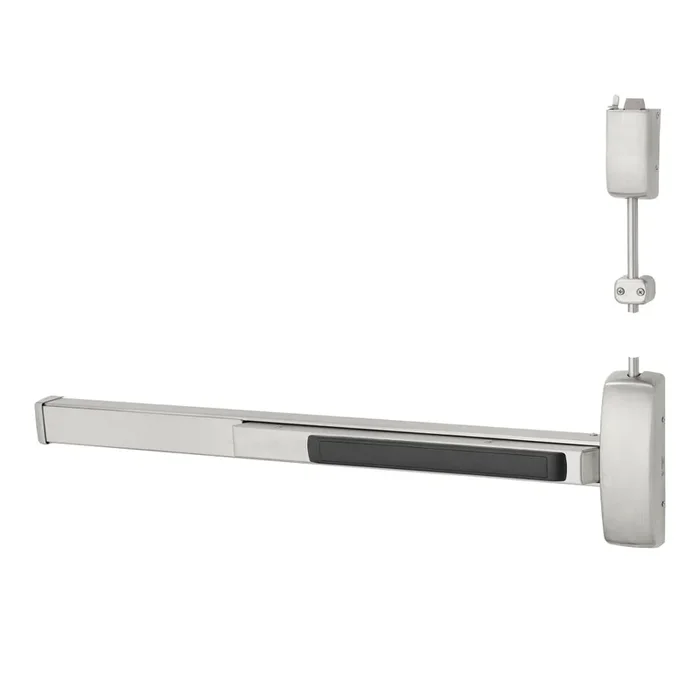

Sargent 56-NB8706G LHR 32D NB-SVR Storeroom Exit Device
Sargent 56-NB8706G LHR 32D NB-SVR Exit Device, Storeroom offers a robust solution for secure egress in commercial settings. This Grade 1 surface vertical rod exit device features a wide stile pushpad and is designed for 48″ devices on doors up to 84″ in height, providing exceptional durability and reliability. The storeroom function ensures that the door remains locked from the outside while allowing free exit, enhancing safety in your building. Crafted with a satin stainless steel finish, this exit device not only meets ANSI/BHMA Grade 1 standards but also boasts electric latch retraction for added convenience. The modular construction minimizes maintenance requirements, making it an ideal choice for high-traffic areas. The device is designed for wood or metal doors with a thickness of 1-3/4″ to 2-1/4″, ensuring versatility across various applications. With a less bottom rod configuration, the Sargent 56-NB8706G is part of the reliable NB8700 Series, known for its strength and innovative design. It also includes essential features such as a 5-year limited warranty and is UL Listed for safety. Elevate your building’s security with this dependable exit device that combines functionality with aesthetic appeal.
NB-SVR Exit Device, Storeroom
Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 48″ Device, 84″ Door Height, Storeroom Function, Less Bottom Rod, Electric Latch Retraction, Less Dogging, Satin Stainless Steel Finish, Left Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The NB8700 Series is a top latch surface vertical rod exit device.
The NB8700 Series is part ofSargent’s full line of exit devices that provide the best combination ofsimplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.
- Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- Prefix; 4-1/2″ (114mm) minimum stilewith trim and 3-1/2″ (44mm) minimum stile without trim
- Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Attributes
Accessible: No
Ada Compliance: No
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 48″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84″
Door Material: Metal or Wood
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 43″ to 48″
Electric Options: Electric Latch Retraction
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Storeroom
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-1/2″
Origin: USA
Pack Height: 6″
Pack Length: 51″
Pack Qty: 1
Pack Volume: 2295 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: No
Series: NB8700 Series Surface Vertical Rod Exit Devices
Ship Weight: 15 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 646
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
Resources
- 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
- NB8700 Series Installation Instructions
