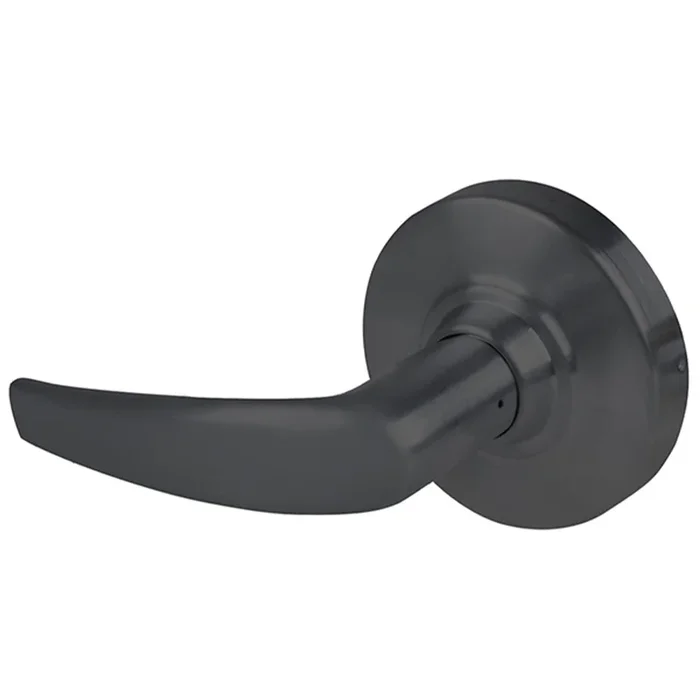

Schlage ND170ATH622 ND Series Single Dummy Lock – Athens Matte Black Finish
Schlage Commercial ND170ATH622 ND Series Single Dummy Athens Matte Black Finish offers a contemporary solution for both functionality and aesthetics in commercial environments. Designed with the striking Athens lever, this single dummy lockset features a sleek matte black finish that complements modern architectural styles, providing a sophisticated touch to any door. Measuring 3-7/16″ in diameter with a 4-9/16″ lever and a 3-5/16″ projection, the ND Series is engineered for easy installation and a seamless fit. Its reversible handing ensures versatility, allowing it to adapt to various door orientations. Manufactured from durable zinc base material, this lockset not only promises longevity but also meets rigorous UL standards, being UL Listed for 3 Hour Fire Doors. The Rhodes Rose escutcheon design adds an elegant flair, making it a perfect choice for upscale commercial spaces. Backed by a 3-year limited mechanical warranty and a 1-year limited electromechanical warranty, the ND170ATH622 guarantees quality and reliability. Whether you’re upgrading existing hardware or designing a new space, the Schlage Commercial ND Series lockset combines style and security, making it an ideal addition to any architectural project.
ND Series Single Dummy Athens Matte Black Finish
- No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
- No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
- No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
- Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
- Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
- Cast steel spindle construction exceeding 16 million cycles
- Withstood aggressive Schlage development testing including lever-snap and abusive cycling
- 31 mechanical functions
- 6 wired functions with:
- Autodetecting 12-24V DC input
- Switch-selectable EL/EU operation
- Modular request to exit (RX)
- 0.230A max/0.010A holding current
- Available in 10 finishes, 5 lever designs, and 2 rose designs
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
- Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ND170ATH622, SCHND170ATH622
Ansi: ANSI A156.2 Series 4000, Grade 1
Baa Qualified: Yes
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Athens
Dimension: 3-7/16″ Rose with 4-9/16″ Lever and 3-5/16″ Projection
Door Application: Cylindrical Levers
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: Matte Black
Finish Code: 622
Finish Color: Black, Flat Black, Flat Black Coated, Matte Black
Finish : Flat Black Coated
Finish Family: Black
Fire Rated: Yes
Fire Rating: 180 min
Function: 170-Single Dummy
Function Family: Dummy
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Lever Design: Athens
Lever Knob: Lever
Lever Knob Design: ATH – Athens
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: Athens
Leverknob Design: ATH – Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Manufacturer Function: Single Dummy Trim
Manufacturer Function : Dummy trim for one side of door. Used for door pull or as matching inactive trim.
Manufacturer Warranty: 3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty
Material: Zinc Base
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75″
Pack Height 2: 10″
Pack Length: 9.5″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25″
Pack Width 2: 14.63″
Product Height: 3.44″
Product Length: 6.28″
Product Width: 3.31″
Projection: 3-5/16 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16″
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: 3-7/16″
Screws: Wood/Machine Screws
Series: ND Series
Ship Weight: 5 lbs.
Structure Function: 170
Structure Outside Finish: 622
Structure Outside Trim: ATH
Structure Series: ND
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
