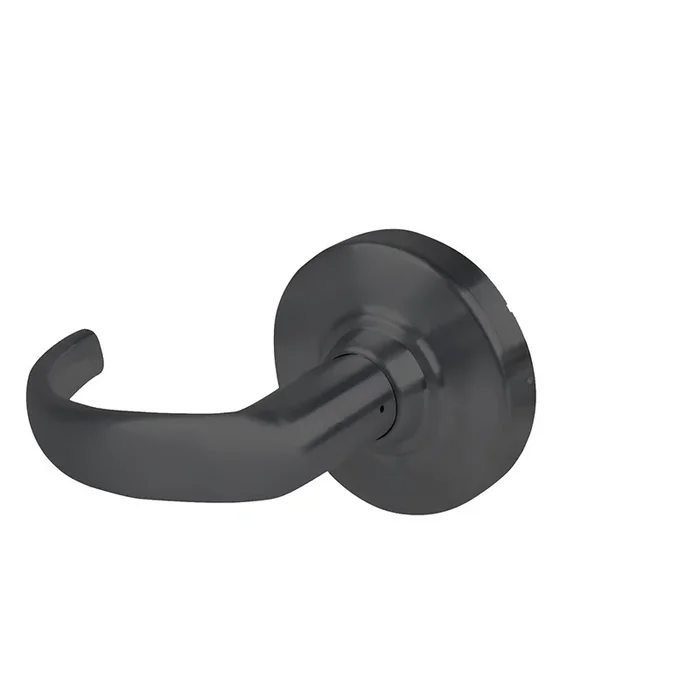

Schlage ND170SPA622 ND Series Single Dummy Lock – Sparta Matte Black Finish
Schlage Commercial ND170SPA622 ND Series Single Dummy Sparta in a sleek Matte Black finish combines style and functionality for any commercial setting. This single dummy trim is designed to serve as an elegant door pull or matching inactive trim, enhancing the aesthetic while providing a practical solution for door applications.Crafted with precision, the ND Series features a robust design that meets ANSI/BHMA Certified A156.2-2011 standards, ensuring durability and reliability. It is suitable for doors ranging from 1-5/8″ to 2-1/8″ in thickness, making it versatile for various installations. The commercial-grade construction is UL Listed for a 3-hour fire door, offering peace of mind in safety-critical environments. The Sparta lever design complements the Rhodes rose escutcheon, presenting a modern look that fits seamlessly into any architectural style. With a reversible handing, installation is simplified, catering to the needs of different door orientations. Made from a sturdy zinc base, this product is built to last, backed by a limited 10-year mechanical and 3-year electro-mechanical warranty.Elevate your door hardware with the Schlage Commercial ND170SPA622, where strength meets sophisticated design.
ND Series Single Dummy Sparta Matte Black Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Single Dummy Trim, Dummy Trim for One Side of Door, Used for Door Pull or As Matching Inactive Trim
- ANSI/BHMA Certified A156.2-2011
- 1-5/8″ to 2-1/8″ Door Range
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
- No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
- No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
- No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
- Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
- Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
- Cast steel spindle construction exceeding 16 million cycles
- Withstood aggressive Schlage development testing including lever-snap and abusive cycling
- 31 mechanical functions
- 6 wired functions with:
- Autodetecting 12-24V DC input
- Switch-selectable EL/EU operation
- Modular request to exit (RX)
- 0.230A max/0.010A holding current
- Available in 10 finishes, 5 lever designs, and 2 rose designs
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
- Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ND170SPA622
Ansi: ANSI A156.2 Series 4000, Grade 1
Baa Qualified: Yes
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Sparta
Dimension: 3-7/16″ Rose with 4-15/16″ Lever and 3-1/2″ Projection
Door Application: Cylindrical Levers
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: Matte Black
Finish Code: 622
Finish Color: Black, Flat Black, Flat Black Coated, Matte Black
Finish : Flat Black Coated
Finish Family: Black
Fire Rated: Yes
Fire Rating: 180 min
Function: 170-Single Dummy
Function Family: Dummy
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Lever Design: Sparta
Lever Knob: Lever
Lever Knob Design: SPA – Sparta
Lever Knob Design Name: Sparta
Leverknob Design: SPA – Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Manufacturer Function: Single Dummy Trim
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75″
Pack Height 2: 10″
Pack Length: 9.5″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25″
Pack Width 2: 14.63″
Product Height: 3.44″
Product Length: 6.66″
Product Width: 3.5″
Projection: 3-1/2 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: 3-7/16″
Screws: Wood/Machine Screws
Series: ND Series
Ship Weight: 5 lbs.
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: LOCK SETS
Ul Listing: UL/cUL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
