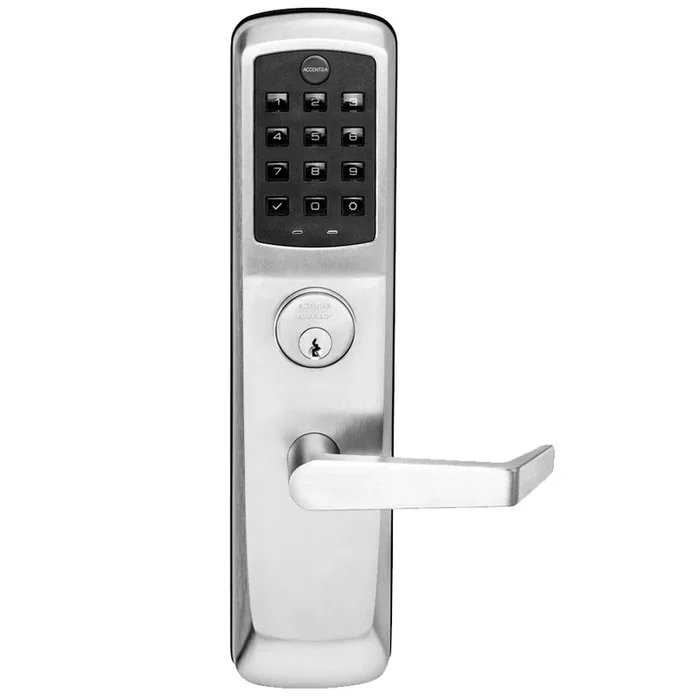

Accentra AU-NTT613-NR-2803-626 nexTouch Exit Trim, Pushbutton Keypad, Augusta Lever, Satin Chrome, Yale Accentra
Accentura Yale nexTouch Keypad Exit Trim offers an innovative solution for enhancing access control in commercial spaces. Designed to fit seamlessly onto existing exit devices, this trim provides key-free entry ideal for delivery doors, stairwells, and other high-traffic areas.Available in both a capacitive touchscreen and pushbutton keypad, the Yale nexTouch ensures compliance with tactile environments and ADA standards. Its patented adjustable mounting posts simplify retrofitting onto numerous exit device models, eliminating the need for additional hardware. The keypad can accommodate up to 500 user codes, while a robust 9V battery backup prevents lockouts during power failures. Engineered for reliability, this exit trim is certified to ANSI/BHMA A156.13, series 1000, operational grade 1, and is field reversible to suit various installations. The Yale nexTouch not only enhances security but also reduces the costs and complexities associated with traditional key management.With multiple finishes-bright brass, dark oxidized satin bronze, satin chrome plated, and black suede powder coat-along with three lever designs (Augusta, Monroe, Pacific Beach), it offers customization for any facility. Backed by a 3-year limited warranty, the Yale nexTouch Keypad Exit Trim is the perfect upgrade for modern security needs.
nexTouch Exit Trim, Pushbutton Keypad, Augusta Lever, No Radio – Standalone, Schlage C Keyway, Grade 1, Weather Resistant, 626/US26D Satin Chrome Yale is Now Accentra
Notice: The info below is not item specific.
Whether for a new opening or an existing door, the Yale nexTouch keypad exit trim is the perfect way to upgrade almost any exit device for easy, key-free access. Perfect for a variety of applications, including delivery doors, stairwells, or on an existing exit device, Yale nexTouch keypad exit trim offers a new level of convenience to your commercial facility.
Features:
- Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA compliance
- Patented adjustable mounting posts enable retrofit onto many exit device models without any additional hardware
- Up to 500 user codes in keypad only operation
- 9V battery power backup prevents lockout even if the batteries fail
- Modular technology allows users to upgrade to data-on-card
- Available in four finishes and three lever designs
- A certified integrator is required to configure this product with Yale Accentra
- Engineered to provide an easy-to use access control solution to protect your facility and personnel
- Able to be installed in place of mechanical exit trim on many pushpad exit devices, including competitor models
- Reduces investment and maintenance costs associated with managing keys
Specifications:
- ANSI/BHMA Series: Series 1000
- Cylinder Format: Conventional
- Handing: Field reversible
- Warranty: 3-year limited warranty
- Certifications: ANSI/BHMA A156.13, series 1000, operational grade 1
Single Cylinder Functions:
- NTT613: Pushbutton – No deadbolt with cylinder override
- For doors that require mechanical key override.
- Bolt retracted by push bar on interior and lever on outside except when outside lever is locked.
- Key override unlocks the outside lever only.
- Deadlocking rim bolt.
- NTT623: Touchscreen – No deadbolt with cylinder override
- For doors that require mechanical key override.
- Bolt retracted by push bar on interior and lever on outside except when outside lever is locked.
- Key override unlocks the outside lever only.
- Deadlocking rim bolt.
Levers:
- AU: Augusta
- MO: Monroe
- PB: Pacific Beach
Finishes:
- 605 – Bright brass
- 613E – Dark oxidized satin bronze
- 626 – Satin chrome plated
- BSP – Black suede powder coat
Attributes
Alternate Codes: AU-NTT610-NR-2803-626, AUNTT610NR2803626, AU-NTT612-NR-2803-626, AUNTT612NR2803626, AU-NTT613-NR-2803-626, AUNTT613NR2803626, YALAU-NTT610-NR-2803-626, YALAU-NTT612-NR-2803-626
Category: Access Control, Commercial Electric Locks, Electric Locks, Lock Sets, Standalone, Standalone Locks, Standalone/Pushbutton Locks
