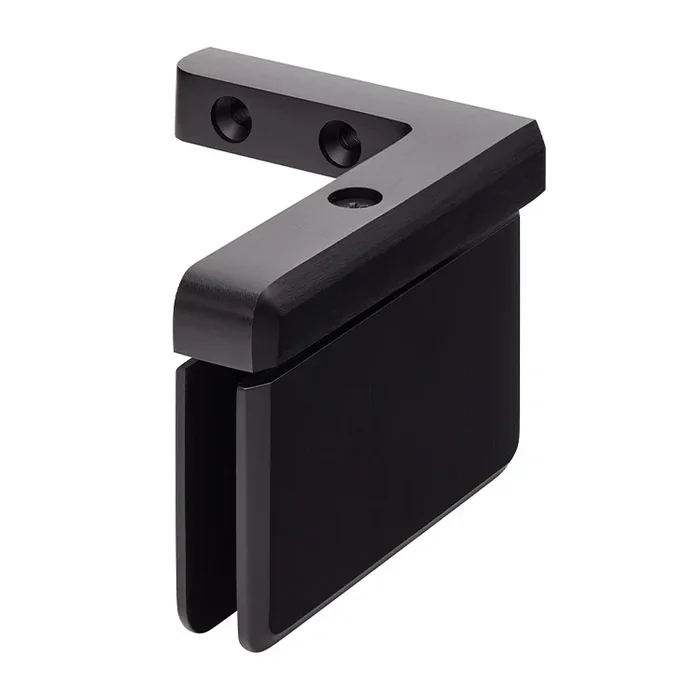

CRL PPH05R0RB Oil Rubbed Bronze Prima 05 Right Hand Offset Mount Hinge
C.R. Laurence PPH05R0RB Oil Rubbed Bronze Prima 05 Series Right Hand Offset Mount Hinge is expertly crafted to enhance your shower enclosure with both style and functionality. Designed for use with 5/16″ to 3/8″ (8 to 10 mm) tempered safety glass, this hinge supports doors weighing up to 100 lbs. (45 kg) and with a maximum width of 31″ (787 mm). The right-hand offset bracket wall mount permits flexibility in design while allowing clearance for towel bars and other projections. This pivot hinge features a self-centering mechanism, ensuring smooth operation every time you use your shower door. With the option to incorporate a 5-degree pivot pin set, you can customize the closing position of your door, making it adaptable to various installation requirements. The solid brass construction not only provides durability but also a sleek, oil-rubbed bronze finish that complements a range of decors. Included with the hinge are gaskets, screws, and fabrication dimensions, streamlining your installation process. Supported by a 3-year warranty and patented design (U.S. Patent 5,297,313), the PPH05R0RB is an excellent choice for both residential and hotel applications. Elevate your space with this reliable and stylish hinge from C.R. Laurence.
Oil Rubbed Bronze Prima 05 Series Right Hand Offset Mount Hinge
- Offset Bracket Wall Mount (Right Hand Mount When Viewed From Outside of Shower)
- Self-Centering with Optional 5 Degree Pivot Pin Set
- Available in Several Beautiful Finishes
- 3 Year Warranty
- Use Monolithic Tempered Glass
- U.S. Patent 5,297,313
CRL Prima Series Pivot Hinges are designed for use with 5/16″ to 3/8″ (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.
Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series): Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.
Using two hinges with 5/16″ to 3/8″ glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31″ (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16″ (8 mm) to 3/8″ (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the CRL Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Design Style: Beveled
Edge Profile: Beveled
Enclosure Type: Corner, Niche, Tailor Made Solutions
Finish/ Color:: Oil Rubbed Bronze
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing: Right Hand
Height: 2 in. (51 mm)
Material: Brass
Maximum Door Weight: 100 lbs. (45.4 kg)
Maximum Door Width: 31 in. (787 mm)
Mounting Type: Wall Mount
Opening Style: Pivot(floor)
Self- Centering: Yes
Series: Prima
Shipping Limitations: None
Width: 3-5/8 in. (92 mm)
