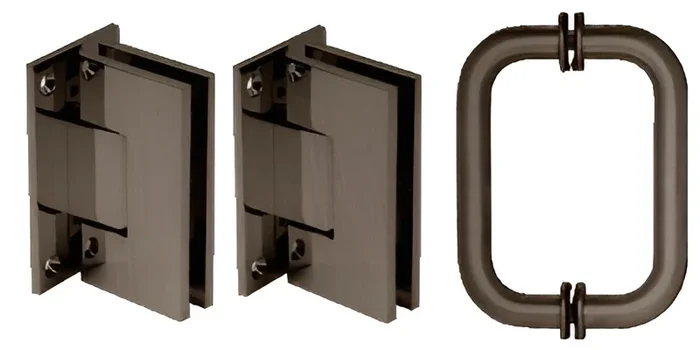

CRL V1ES30RB Oil Rubbed Bronze Vienna Shower Pull Hinge Set
C.R. Laurence V1ES30RB Oil Rubbed Bronze Vienna Shower Pull and Hinge Set provides a seamless blend of elegance and functionality for modern bathroom designs. This comprehensive set includes two robust Vienna 037 Series Wall Mount Hinges and one set of BM6X6 Tubular Back-to-Back Pull Handles, ensuring everything you need is conveniently packaged together. Designed for use with monolithic tempered glass ranging from 5/16″ to 1/2″ (8 mm to 12 mm) in thickness, this set supports a maximum door weight of 110 lbs. (49.9 kg) and accommodates door widths of up to 32″ (813 mm) for 1/2″ glass and 34″ (864 mm) for 3/8″ glass. Crafted from high-quality brass, the oil-rubbed bronze finish adds a touch of sophistication while enhancing durability. These hinges are self-centering, ensuring that your shower door closes securely every time. Ideal for residential or hotel installations, the V1ES30RB set stands out as one of C.R. Laurence’s best-selling combinations, making it a preferred choice among professionals and homeowners alike.Please note that proper installation requires the use of the included template, as dimensions may vary from other brands. For any non-standard applications, consult with the C.R. Laurence Shower Door Technical Sales Department.
Oil Rubbed Bronze Vienna Shower Pull and Hinge Set
- Hinges for 5/16″ to 1/2″ (8 to 12 mm) Glass
- Set Includes Two Hinges and One Set of Pull Handles
- Our Five Most Popular Hinge Series
- Our Four Most Popular Finishes
- Our Best-Selling Pull Handle or Knob
- All Together in Easy-to-Order Sets
- Use Monolithic Tempered Glass
This
CRL Shower Pull and Hinge Set consists of one set of BM6X6 Tubular Back-to-Back Pull Handles with metal washers, and two each Vienna 037 Series Wall Mount Hinges. We’ve made it even easier for you to get two of our most popular Hinges and our best-selling Pull Handle or Knob by combining them in one easy-to-order set.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
5 Degree Pre- Set: No
Adjustable: No
Back Plate: Full
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Oil Rubbed Bronze
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)
Material: Brass
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Maximum Door Weight: 110 lbs. (49.9 kg)
Maximum Door Width – 1/2 Glass: 32 in. (813 mm)
Maximum Door Width – 3/8 Glass: 34 in. (864 mm)
Maximum Door Width -1/2 Glass: 32
Mounting Type: Wall Mount
Self- Centering: Yes
Series: Vienna
Shipping Limitations: None
