Description

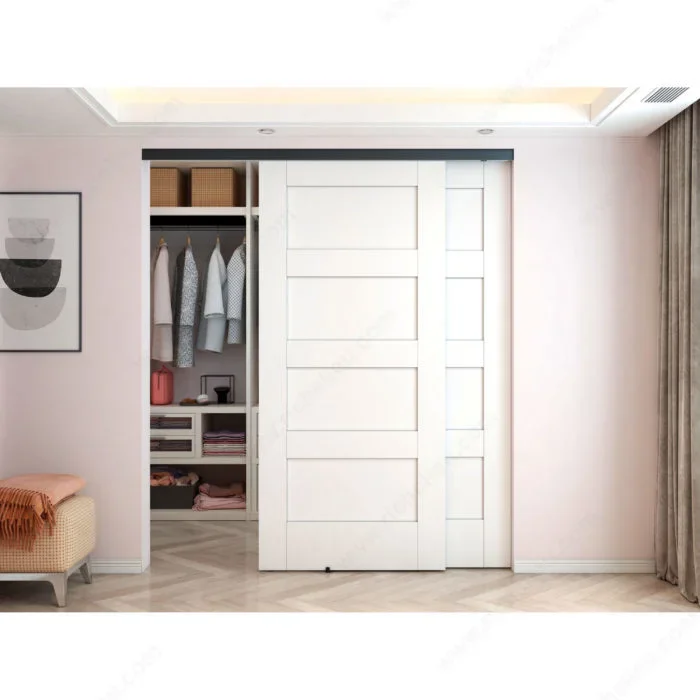

Richelieu 89XC96B90 ONWARD Dome Closet Door Kit
Richelieu 89XC96B90 ONWARD DOME Closet Door KIT is designed for seamless operation of two bypass sliding wood doors, accommodating weights of up to 150 lbs (68 kg). This system features a top-hung design that runs smoothly on a double aluminum track with an integrated fascia, suitable for doors with thicknesses ranging from 1-3/8 to 1-3/4 inches (35 to 45 mm). An additional hardware set is available for configurations involving three or four doors. Key features include adjustable floor guides that eliminate the need for grooves in the door’s bottom, ensuring a clean aesthetic. The kit also comes equipped with a rear-mounted bumper that prevents the doors from bypassing too far or in the wrong direction. With ball bearing wheels for enhanced durability, the system promises longevity and reliable performance. Installation is straightforward, utilizing a toolless lever release for easy mounting. The kit is offered in four track lengths-48, 60, 72, and 96 inches (1219, 1524, 1828, and 2438 mm)-and comes in three attractive finishes: Anodized Gray, Satin Black Powder Coat, and Satin White Powder Coat. Ideal for residential, commercial, and institutional settings, this kit is perfect for bedrooms, offices, storage rooms, and more.
ONWARD DOME Closet Door KIT
The ONWARD DOME Closet Door KIT is for two bypass sliding wood doors weighing up to 150 lbs (68 kg). Doors are top hung and run on a double aluminum track with integrated fascia suitable for door thicknesses of 1-3/8 to 1-3/4 in (35 to 45 mm). An additional hardware set can be purchased separately for three- and four-door applications. The floor guide is adjustable to various door thicknesses and guides the door from the outside. No groove is required in the bottom of the door.
Features:
– Includes hardware for 2 sliding wood doors
– A bumper mounted on the rear of one door prevents doors from bypassing too far or in the wrong direction
– Ball bearing wheels for greater durability and longevity
– Suspension plate surface mounts to the top of the door with a toolless lever release for simple door mounting
– 4 track lengths available: 48, 60, 72, and 96 in (1219, 1524, 1828, and 2438 mm)
– 3 finishes available: Anodized Gray, Satin Black Powder Coat and Satin White Powder Coat
– Includes two ring pulls that match the finish of the track
– Simple, flexible and low-cost installation
Ideal for residential, commercial, and institutional projects for use in bedrooms, offices, storage rooms and a wide range of other applications that require double tracks.
Attributes
Ship via: No UPS – Common Carrier Only
Adjustable: Yes
Application: Closet and Walk-In Closet, Wardrobe, Storage
Brand: Onward
Detailed Door Movement: Bypassing
Door Height: 120 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 38 to 50 in
Finish: Black
Function: Sliding Door
Groove Needed for Guiding System: No
Length: 96 in
Length – Overall Dimensions: 96 in
Load Capacity: 40 to 150 lb
Manufacturing Material: Aluminum, Plastic
Material: Plastic, Aluminum
Number of Doors: 2
Overall Height: 3 1/2 in
Overall Length: 97 1/4 in
Overall Width: 5 7/8 in
Packaging Format: White Cardboard with Photo Label
Product #: 89XC96B90
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Finish: Black
Track Material: Aluminum
Track Mounting: Ceiling Mount
Weight Capacity per Door: 40 to 150 lb
Resources
- Instructions
- Line art
