Description

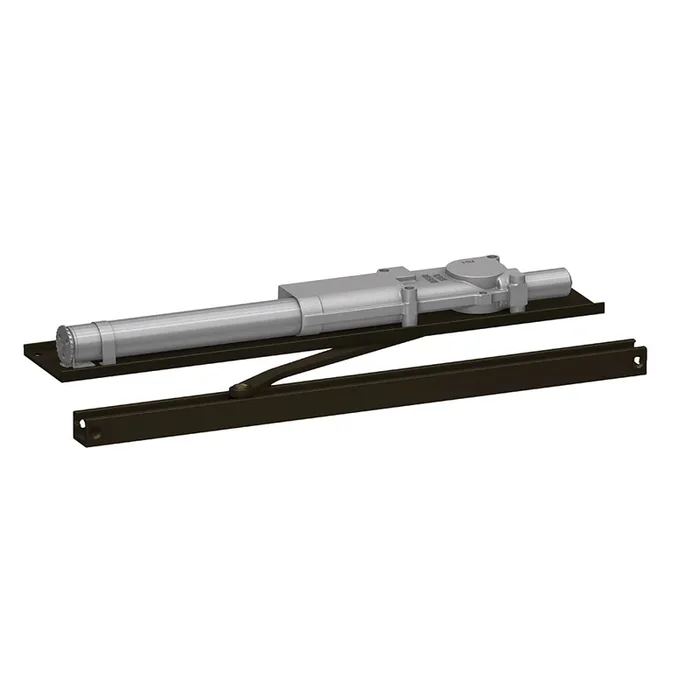

LCN 2031-H RH 695 DKBRZ Overhead Concealed Closer
LCN 2031-H RH 695 Overhead Conceal Closer DKBRZ offers a robust Grade 1 performance, making it an ideal choice for heavy-duty applications. Designed for installation in narrow aluminum transoms with a minimum clearance of 1-3/4″, this concealed closer features a hydraulic slide track mounting system that ensures seamless door operation. The single lever arm combined with a roller assembly delivers smooth and quiet control, enhancing the overall user experience while maintaining functionality. This model accommodates a 110-degree swing and includes an adjustable backcheck to prevent damage from uncontrolled door movements. The right-handed configuration allows for versatile installation options, making it suitable for both commercial and residential settings. With a dark bronze painted finish, the LCN 2031-H complements various architectural designs while offering durability. Engineered to meet ADA requirements, this closer is not only functional but also compliant with accessibility standards. The standard arm and mounting plate come included, along with a wood and machine screw pack for easy installation. Backed by a 15-year limited warranty, the LCN 2031-H RH provides long-lasting reliability for any entrance. Choose this overhead concealed closer to enhance your door’s performance and aesthetic appeal.
Overhead Conceal Closer DKBRZ
Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm with Hold Open, 110 Deg. Swing, Adjustable Backcheck, Size 1, Dark Bronze Painted Finish, Right-Handed
The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4″ Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.
The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4″ aluminum transom.
The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.
- Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
- Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
- Handed for right or left swinging doors
- Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on arm, fasteners and finish plate
Attributes
Manufacturer surcharge: 4.5%
Arm Type: Slide Track Arm, Standard with Hold Open
Baa Qualified: Yes
Base Material: Varies
Closer Size: 1
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Degree Hold Open: 110 Deg.
Degree Swing: 110 Deg.
Finish: 695
Finish Family: Dark Bronze
Grade: Grade 1
Handing: Right-Handed
Hold Open: Yes
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Header
Mounting Style: Slide Track
Pack Qty: 1
Series: 2030 Series Concealed Closers
Ship Weight: 14 lbs.
Subtype: Concealed-in-Door Closers
Type: Concealed Overhead
Unit of Measure: Each
Resources
- 2030 Series Concealed Closers Cut Sheet
- LCN 2030 Series Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- LCN Concealed Closer Series Product Guide
- LCN Concealed Closers Catalog
- Overhead Concealed Closer Cross-Reference Sheet
- Von Duprin Finishes Chart
