Description

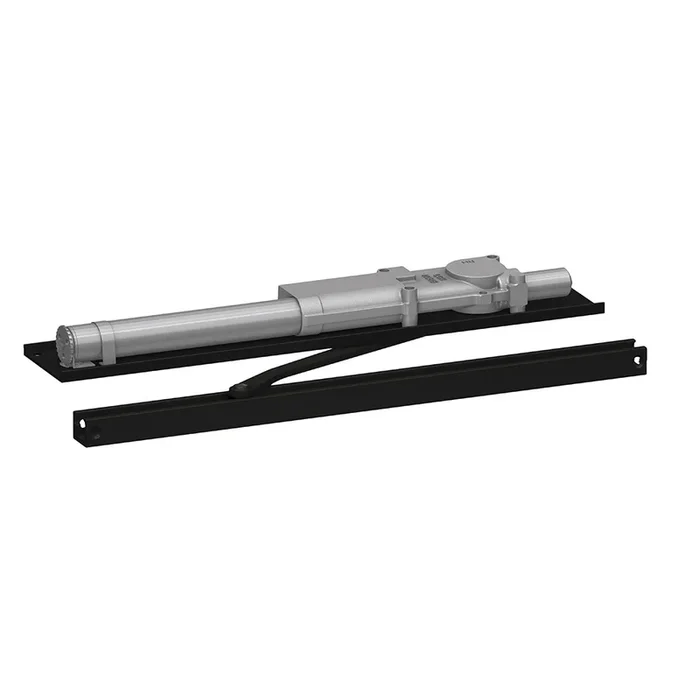

LCN 2033-STD LH 693 Overhead Concealed Closer GLBLK
LCN 2033-STD LH 693 Overhead Concealed Closer GLBLK delivers exceptional performance and reliability in a sleek, concealed design. This Grade 1 standard single lever closer is engineered for heavy-duty use, making it ideal for commercial applications. With a hydraulic slide track mounting system and a left-handed configuration, the LCN 2033-STD fits seamlessly into narrow aluminum transoms with a minimum clearance of 1-3/4 inches. Designed for smooth and quiet door operation, the single lever arm and roller assembly ensure optimal control. The 2030 Series Pacer® features an adjustable backcheck and accommodates doors with a swing of up to 180 degrees. Suitable for both interior doors up to 4’6″ and exterior doors up to 3’6″, this closer meets ADA requirements and is available in a striking black painted finish. The unit comes complete with a standard arm, mounting plate, and a pack of wood and machine screws, simplifying installation. The LCN 2033-STD is built to last, backed by a 15-year limited warranty. Whether you’re a building professional or a knowledgeable homeowner, this concealed closer provides both functionality and style for your door hardware needs.
Overhead Conceal Closer GLBLK
Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm, 180 Deg. Swing, Adjustable Backcheck, Size 3, Black Painted Finish, Left-Handed
The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4″ Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.
The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4″ aluminum transom.
The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.
- Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
- Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
- Handed for right or left swinging doors
- Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on arm, fasteners and finish plate
Attributes
Manufacturer surcharge: 4.5%
Arm Type: Slide Track Arm, Low Profile
Baa Qualified: Yes
Base Material: Varies
Closer Size: 3
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Degree Swing: 180 Deg.
Finish: 693
Finish Family: Black
Grade: Grade 1
Handing: Left-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Header
Mounting Style: Slide Track
Pack Qty: 1
Series: 2030 Series Concealed Closers
Ship Weight: 14 lbs.
Subtype: Concealed-in-Door Closers
Type: Concealed Overhead
Unit of Measure: Each
Resources
- 2030 Series Concealed Closers Cut Sheet
- LCN 2030 Series Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- LCN Concealed Closer Series Product Guide
- LCN Concealed Closers Catalog
- Overhead Concealed Closer Cross-Reference Sheet
- Von Duprin Finishes Chart
