Description

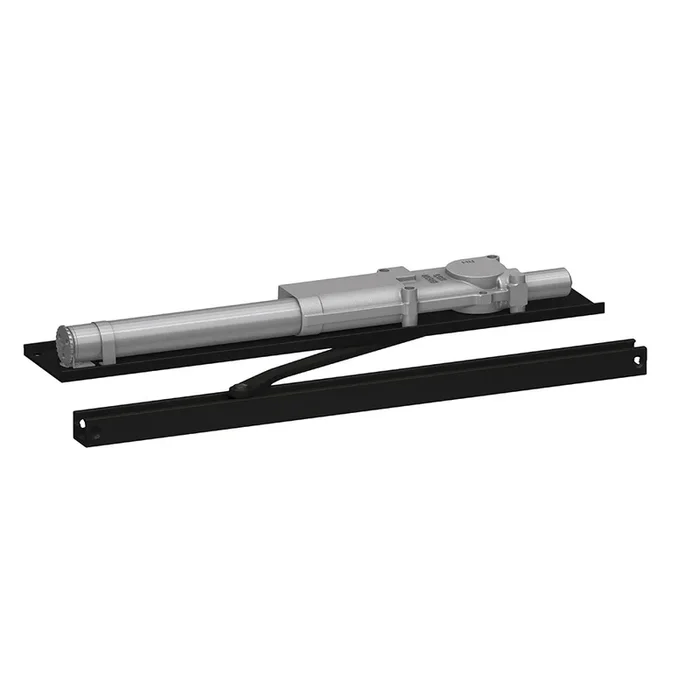

LCN 2035-STD LH 693 Overhead Concealed Closer – GLBLK
LCN 2035-STD LH 693 Overhead Concealed Closer GLBLK offers a blend of durability and sleek design for commercial applications. This Grade 1 standard single lever overhead concealed closer is engineered with a hydraulic slide track mounting system, allowing for a low-profile appearance while delivering reliable performance. Designed for left-handed installations, it accommodates doors with a swing range of 180 degrees. The 2030 Series PACER excels in tight spaces, fitting into narrow aluminum transoms with a minimum clearance of just 1-3/4 inches. Its single lever arm and roller assembly ensure smooth and quiet door operation, making it an ideal choice for high-traffic environments. This closer is not only functional but also customizable, available in standard or optional custom powder coat finishes to match any architectural style. With adjustable backcheck and a size 5 rating, it meets ADA requirements and is suitable for interior doors up to 4’6″ and exterior doors up to 3’6″. The LCN 2035-STD LH also includes a comprehensive installation package with necessary screws and mounting plates, ensuring a straightforward setup. Backed by a 15-year limited warranty, this concealed closer is a dependable solution for enhancing door control and security in commercial spaces.
Overhead Conceal Closer GLBLK
Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm Low Profile with 180 Deg. Swing, Adjustable Backcheck, Size 5, Black Painted Finish, Left-Handed
The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4″ Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.
The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4″ aluminum transom.
The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.
- Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
- Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
- Handed for right or left swinging doors
- Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on arm, fasteners and finish plate
Attributes
Manufacturer surcharge: 4.5%
Ansi: ANSI A156.4
Arm Type: Slide Track Arm, Low Profile
Back Check: Adjustable
Closer Size: 5
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: No
Degree Swing: 180 Deg.
Delay: No
Finish: 693
Finish Family: Black
Grade: Grade 1
Handing: Left-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Header
Mounting Style: Slide Track
Pack Qty: 1
Screw Type: Machine and Wood
Series: 2030 Series Concealed Closers
Ship Weight: 14 lbs.
Subtype: Concealed Overhead Closers
Type: Concealed Overhead
Ul Listing: UL10C
Unit of Measure: Each
Resources
- 2030 Series Concealed Closers Cut Sheet
- LCN 2030 Series Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- LCN Concealed Closer Series Product Guide
- LCN Concealed Closers Catalog
- Overhead Concealed Closer Cross-Reference Sheet
- Von Duprin Finishes Chart
