Description

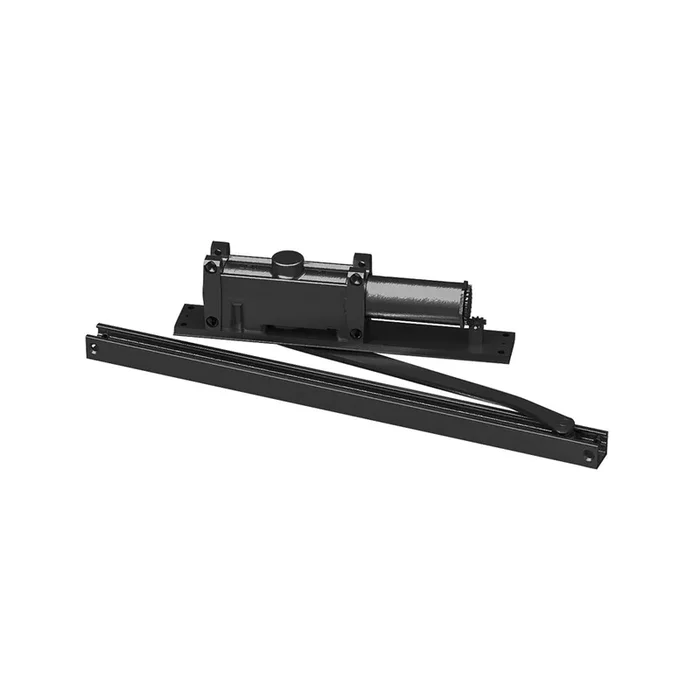

LCN 2011-STD LH 693 Overhead Concealed Closer – GLBLK
LCN 2011-STD LH 693 Overhead Conceal Closer GLBLK is a heavy-duty concealed door closer engineered for both functionality and aesthetics. Designed to be mounted in the header of the door frame, this left-handed model ensures complete concealment while delivering smooth and quiet door operation. Featuring a robust cast iron body and all-weather fluid, it is built to withstand various environmental conditions, making it suitable for commercial applications. This closer is part of the 2010 Series, which accommodates doors up to 5’0″ for interior use and 4’0″ for exterior applications. It is compatible with aluminum, hollow metal, or wood doors and frames, requiring a minimum 4″ x 4″ tube for installation. The single lever arm and roller assembly contribute to its reliable performance, while the ADA-compliant design ensures accessibility. With a variety of finishes available, including the standard black finish (693) and optional custom powder coats, the LCN 2011-STD can seamlessly blend with any architectural style. This product comes with a 15-year limited warranty, reflecting its durability and quality, and ships conveniently via UPS, making it a smart choice for professionals looking for dependable door hardware solutions.
Overhead Conceal Closer GLBLK
Standard Track Door Closer, Left Hand, Black
The 2010 Series is a heavy duty concealed door closer designed to provide complete concealment. The single lever arm and roller assembly provide smooth, quiet door control. The 2010 Series features a cast iron body with all weather fluid. Designed to be concealed in the fram, it requires a minimum 4 In. x 4 In. tube.
The 2010 Series by LCN is a concealed heavy duty closer.
The 2010 Series is designed to provide complete concealment.The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.
- Standard 2010 series closer shipped with standard arm, standard track, metal finish plate and wood and machine screw pack
- Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
- Handed for right or left swinging doors
- For aluminum, hollow metal, or wood, doors and frames
- Aluminum frame requires minimum 4” x 4” (102 mm) tube
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on arm, fasteners and finish plate
- Optional SRI primer for installations in corrosive conditions
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Degree Swing: 180 Deg.
Finish: 693
Finish Family: Black
Grade: Grade 1
Handing: Left-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Header
Pack Qty: 1
Series: 2010 Series Concealed Closers
Ship Weight: 13 lbs.
Subtype: Concealed-in-Door Closers
Type: Concealed Overhead
Unit of Measure: Each
Resources
- 2010 Series Concealed Closers Cut Sheet
- LCN 2010 Series Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Concealed Closer Series Product Guide
- LCN Concealed Closers Catalog
- Overhead Concealed Closer Cross-Reference Sheet
- Von Duprin Finishes Chart
