Description

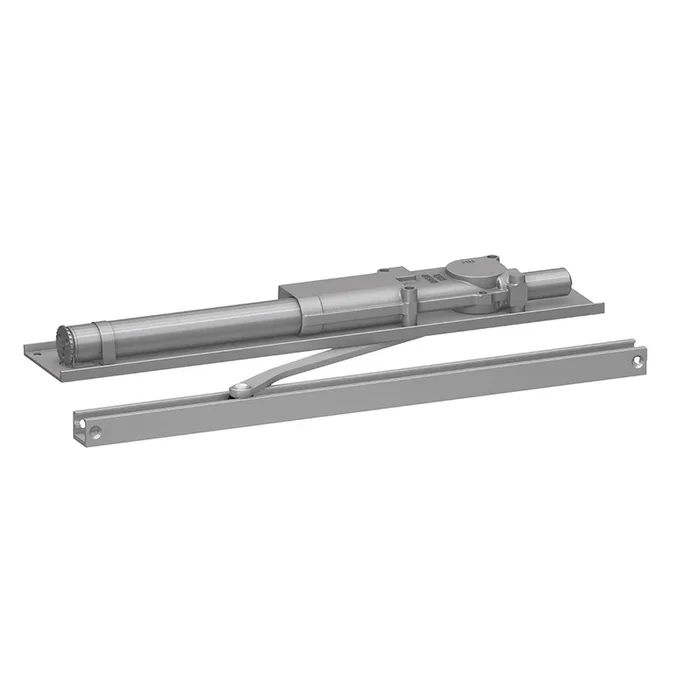

LCN 2031-H BUMPER LH 689 Concealed Overhead Door Closer AL
LCN 2031-H BUMPER LH 689 Overhead Concealed Closer AL is a Grade 1 standard single lever overhead concealed closer engineered for durability and performance. Designed for left-handed doors, this heavy-duty closer features a hydraulic slide track mounting system that ensures smooth and quiet operation. With a swing capacity of 110 degrees and adjustable backcheck, it provides the versatility needed for various architectural settings, making it ideal for commercial applications. The LCN 2031-H is crafted to fit into narrow aluminum transoms, requiring a minimum clearance of just 1-3/4 inches. The single lever arm and roller assembly enhance door control, while the standard arm and track facilitate easy installation. This model complies with ADA requirements, ensuring accessibility and convenience. Available in a sleek aluminum painted finish, the closer also offers optional custom powder coat finishes and plated accents for added aesthetic appeal. With a limited warranty of 15 years, you can trust the reliability of this product for long-term use. Weighing in at 14 lbs., the LCN 2031-H BUMPER is a robust solution for managing high-traffic areas, providing both functionality and style in one package.
Overhead Concealed Closer AL
Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm with Bumper and Hold, 110 Deg. Swing, Adjustable Backcheck, Size 1, Aluminum Painted Finish, Left-Handed
The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4″ Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.
The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4″ aluminum transom.
The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.
- Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
- Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
- Handed for right or left swinging doors
- Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on arm, fasteners and finish plate
Attributes
Manufacturer surcharge: 4.5%
Arm Type: Slide Track Arm, Low Profile with Bump and Hold
Baa Qualified: Yes
Base Material: Varies
Closer Size: 1
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Degree Hold Open: 110 Deg.
Degree Swing: 110 Deg.
Finish: 689/US28
Finish Family: Matte Silver
Grade: Grade 1
Handing: Left-Handed
Hold Open: Yes
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Header
Mounting Style: Slide Track
Pack Qty: 1
Series: 2030 Series Concealed Closers
Ship Weight: 14 lbs.
Subtype: Concealed-in-Door Closers
Type: Concealed Overhead
Unit of Measure: Each
Resources
- 2030 Series Concealed Closers Cut Sheet
- LCN 2030 Series Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- LCN Concealed Closer Series Product Guide
- LCN Concealed Closers Catalog
- Overhead Concealed Closer Cross-Reference Sheet
- Von Duprin Finishes Chart
