Description

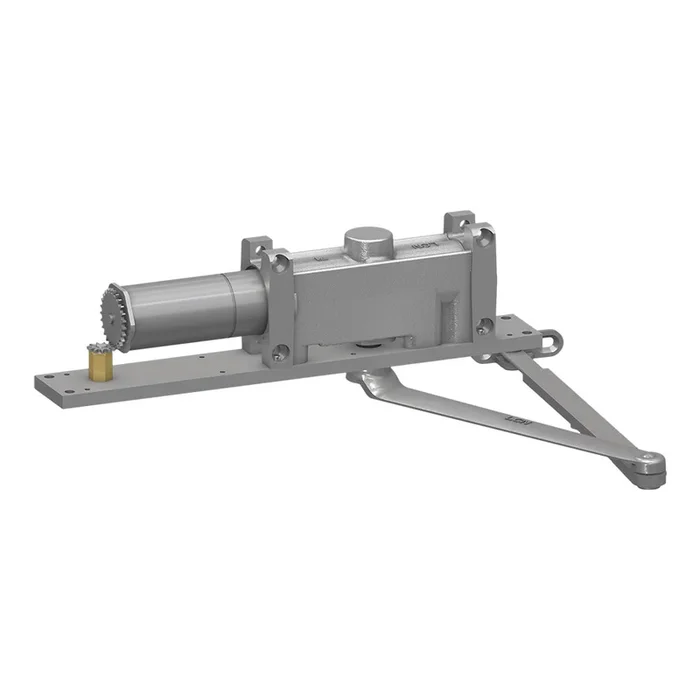

LCN 5011-REG LH 689 Concealed Overhead Closer AL
LCN 5011-REG LH 689 Overhead Concealed Closer AL offers a robust solution for high-traffic environments. This concealed door closer is designed specifically for institutional applications and is built to withstand weather and heavy use. With a size 1 rating, it features a left-hand configuration and is made from durable aluminum, ensuring long-lasting performance. The 5010 Series is equipped with a double lever arm that delivers superior door control, making it ideal for both commercial and residential settings. It accommodates interior doors up to 5 feet and exterior doors up to 4 feet, providing versatility for various installations. The standard model ships with a regular arm, metal finish plate, and a comprehensive screw pack for easy installation. This closer meets ADA requirements and is suitable for both hollow metal and wood doors. It requires a minimum 4″ x 4″ tube for aluminum frames, ensuring a secure fit. Additionally, it is available in a matte silver finish (689/US28) and offers optional custom powder coat finishes for aesthetic flexibility. With a 15-year limited warranty, the LCN 5011-REG LH 689 is a reliable choice for professionals seeking quality and durability in door hardware.
Overhead Concealed Closer AL
Regular Arm Concealed Door Closer, Size 1, Left Hand, Aluminum
The 5010 Series is a concealed heavy duty door closer designed for institutional, high traffic or other applications exposed to weather or abuse.
The 5010 Series is a concealed heavy duty closer designed for institutional, high traffic, or other applications exposed to weather or abuse.
The 5010 Series features the double lever arm that provides superior door control and a choice of finishes, cylinder functions, and arm functions that meet virtually all architectural requirements.
- Standard 5010 series closer shipped with regular arm, metal finish plate, and wood and machine screw pack
- Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
- Handed for right or left swinging doors
- For hollow metal or wood, door and frame
- Aluminum frame requires minimum 4” (102 mm) x 4” tube
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on finish plate, arm, and fasteners
- Optional SRI primer for installations in corrosive conditions
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Degree Swing: 180 Deg.
Finish: 689/US28
Finish Family: Matte Silver
Grade: Grade 1
Handing: Left-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Header
Pack Qty: 1
Series: 5010 Series Concealed Closers
Ship Weight: 12 lbs.
Subtype: Concealed-in-Door Closers
Type: Concealed Overhead
Unit of Measure: Each
Resources
- 5010 Series Concealed Closers Cut Sheet
- LCN 5010 Series Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- LCN Concealed Closer Series Product Guide
- LCN Concealed Closers Catalog
- Overhead Concealed Closer Cross-Reference Sheet
- Von Duprin Finishes Chart
