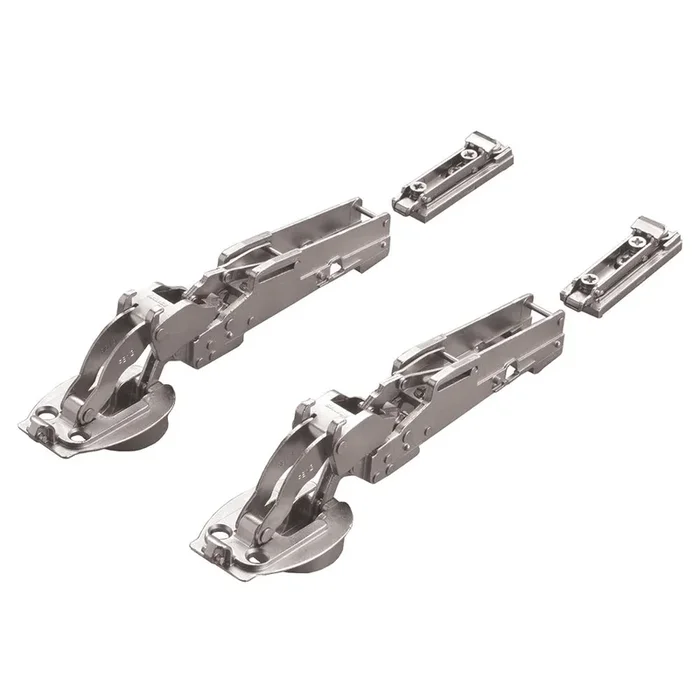

Salice FRBKFEPWSN9 Pacta Push W Smove Gray Hardware
SALICE FRBKFEPWSN9 Pacta Push W Smove Gray is an innovative solution designed for fall flaps, combining functionality and style in one compact hinge. This versatile hinge operates seamlessly without the need for additional stays or cables, making it an ideal choice for modern cabinetry. The decelerated opening action ensures that doors open gradually and with control, enhancing the user experience. In its fully-open position, the Pacta hinge aligns the door and base panel, resulting in a uniform and flat surface that adds to the sleek aesthetics of your furniture. Compatible with doors ranging from a minimum height of 11 inches (279mm) to a maximum of 16 inches (406mm), and with a thickness between 5/8 inch (16mm) and 1-3/32 inches (28mm), the FRBKFEPWSN9 provides flexibility for various applications.With a load rating of 55 pounds and a 90° opening angle, this hinge is both robust and efficient. The standard 35mm drilling and bottom overlay of 17mm ensure easy installation. Elevate your cabinetry with the SALICE Pacta Push W Smove Gray, where quality meets cutting-edge design.
Pacta Push W Smove Gray
Salice Pacta Push To Open W Series GRAY FRBKFEPWSN9
Pacta is a compact hinge for fall flaps which operates without the need for additional stays or cables.
- Decelerated opening action so the fall of the door is gradual and controlled
- Maximum door height 16″ (406mm)
- Maximum door thickness 1-3/32″ (28mm)
- Smove = decelerating strength
- 90° opening angle
- Cup depth of 13mm, boring distance 4.5mm
- Center hinge required for doors 30″ or wider
- In the fully-open position, the door and base panel are aligned, creating a uniform and flat surface
- Standard 35mm drilling on the door
- Bottom overlay of 17mm (fixed)
- Minimum door height 11″ (279mm)
- Minimum door thickness 5/8″ (16mm)
- 55 pound load rating
Attributes
: Gray – W series
Length: 8
Manufacturer: Salice
Monthly Special: No
Type: Lift System
Weight: 1.350000
