Description

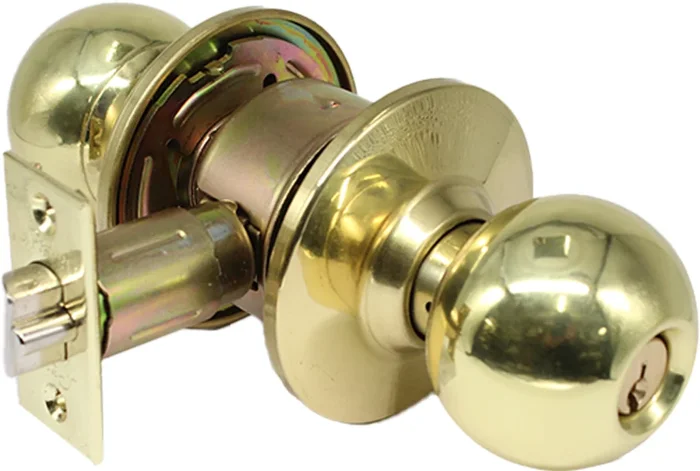

Parker Hardware B9160P32D-2 3/4 BS Privacy Knob Grade 2
Parker Hardware B9160P32D-2 3/4 BS Privacy Knob Grade 2 offers a robust solution for maintaining privacy in both residential and commercial spaces. This heavy-duty cylindrical lock meets ANSI-A156-2, Series 4000, Grade 2 specifications, ensuring reliability and security. Its six-pin solid brass cylinder features an SC-1 keyway, providing enhanced protection with the option for master keying. Designed for doors with a thickness ranging from 1-3/8″ to 1-3/4″, this privacy knob is versatile, accommodating a backset of either 2-3/4″ or the optional 2-3/8″. The brass latch boasts a 1/2″ throw, ensuring a secure closure, while the non-handed design allows for easy installation on either side of the door. The included 4-7/8″ A.S.A strike plate enhances its compatibility with various door frames. Each lock comes with two keys, making it easy to manage access. Ideal for private spaces such as bathrooms or offices, the B9160 series provides peace of mind with its immediate exit feature, making it panic-resistant. With color-coded packaging, all installation hardware and instructions are included, streamlining the setup process. Choose Parker Hardware B9160P32D-2 for a dependable privacy solution that blends functionality with ease of use.
Privacy Knob Grade 2
Notice: The info below is not item specific.
Heavy duty cylindrical locks are available in entry, passage, privacy and storeroom/classroom functions. These locks meet ANSI-A156-2, Series 4000, grade 2 specifications, and include SC-1 keyway #1145, or Arrow keyway K. The tumbler is a six pin keyed to five pins, and the exit from the inside is immediate, for panic-resistant use. The locks will accept AWI or Lori plugs, and the keyed alike numbering system allows the buyer to keep and repeat the same key order for later orders. All parts, screws and installation instruction are included in the color coded packaging that makes stock-keeping easy.
Specifications:
- Backset: 2-3/4″, optional- 2-3/8″
- Door Thickness: 1-3/8″ to 1-3/4″
- Latch: Brass 1/2″ throw
- Latch Front: 1″ X 2-1/4″ for 2-3/8″ backset or 1-1/8″ X 2-1/4″ for 2-3/4″ backset.
- Strike: 4-7/8″ A.S.A, option—2-3/4″ T strike, or 2-1/4″ full lip strike.
- Cylinder: Solid brass 6 pin keyed 5, SC-1 keyway, #1145 or AR-1 keyway. Locks will accept Lori plugs. Master key and grand master key available.
- Keys: 2 per lock
- Handed: Non-handed
Series Functions:
- Entry lock
- Passage
- Privacy lock
- Storeroom lock
- Classroom lock
- Dummy knobs
Finishes:
- 03 – Polished brass
- 32 – Stainless steel
Features
- Latch: Brass 1/2″ throw
- Backset: 2-3/4″, optional- 2-3/8″
- Latch Front: 1″ X 2-1/4″ for 2-3/8″ backset or 1-1/8″ X 2-1/4″ for 2-3/4″ backset.
- Keys: 2 per lock
- Handed: Non-handed
- Cylinder: Solid brass 6 pin keyed 5, SC-1 keyway, #1145 or AR-1 keyway. Locks will accept Lori plugs. Master key and grand master key available.
- Door Thickness: 1-3/8″ to 1-3/4″
- Strike: 4-7/8″ A.S.A, option—2-3/4″ T strike, or 2-1/4″ full lip strike.
Attributes
Alternate Codes: 116370, 210L/32D-4, 210L32D4, A40SORB626-34, A40SORB62634, A40SORB626-38, A40SORB62638, B9160P32D-2 3/4 BS, B9160P32D234BS, B9160P32D-34, B9160P32D34, B9160P32D-38, B9160P32D38, MK02BD26D, PARB9160P32D-34
Backset: 2-3/4″
Category: Commercial Locks, Cylindrical Knobs, Lock Sets
Cylinder Included: No
Cylinder Type: None
Door Bore Size: 2-1/8″
Door Thickness Max: 1-3/4″
Door Thickness Min: 1-3/8″
Finish: Satin Stainless Steel
Function: Privacy
Grade: Grade 2
Handing: Field Reversible
Knob Style: Ball Knob
Knob/ Lever Design: Ball
Knob/ Lever Style: Knob
Latch Bolt Face Type: Connectivity
Latch Bolt Faceplate Size: 2-1/4″ x 1-1/8″
Latch Bolt Throw: 1/2″
Latch Bolt Type: Springlatch
Lock Category: Cylindrical Lock
Rose/ Escutcheon Size: 3″
Rose/ Escutcheon Style: Rose
Series: B9160 Series
Strike Size: 4-7/8″ x 1-1/4″
