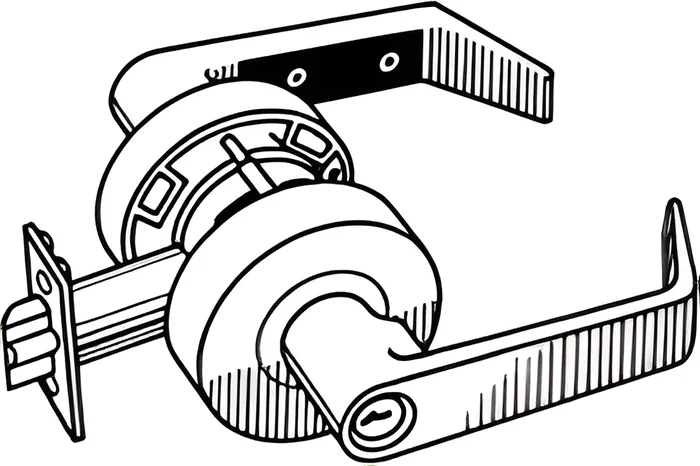

Parker Hardware SL8160P26D Privacy Lever Grade 2
Parker Hardware SL8160P26D Privacy Lever Grade 2 offers a robust solution for securing spaces while ensuring ease of access. Designed to meet both ADA requirements and ANSI A156.2 series 4000 grade standards, this UL-listed leverset is perfect for passage, privacy, storeroom, and classroom functions.Crafted from cold-rolled steel, the SL8160P26D features a single step rose design and a reversible, non-handed installation, making it adaptable for various door configurations. It fits doors ranging from 1-3/8″ to 1-3/4″ thick and comes with a standard 2-3/4″ backset UL listed latch bolt. The latch bolt has a 1⁄2″ throw and is UL listed for three-hour fire resistance, providing an additional layer of safety. Furthermore, this privacy lever includes a solid brass 6-pin SC-1 ILCO #1145 keyway, providing secure keying options with the possibility for special keying like master and grand master systems. Each leverset comes with two keys and is designed with separate lever spring mechanisms to prevent sagging over time. With its elegant satin chrome finish and full 5″ long handles, the Parker Hardware SL8160P26D combines functionality with style, making it an ideal choice for commercial and residential applications alike.
Privacy Lever Grade 2
Notice: The info below is not item specific.
UL listed, ADA approved grade 2 barrier-free leversets are ready for all ADA and other needs in passage, privacy, storeroom, classroom and dummy functions, in addition to entry models. The customer may provide the lock cylinder and key. Leversets meet ANSI A156.2 series 4000 grade standards and more than fulfill ADA requirements. The ANSI series 4000 standard exceeds 400,000 operating cycles.
Features:
- Single step roses
- Cold rolled steel housing
- Reversible, non-handed
- Fits doors from 1-3⁄8″ to 1-3⁄4″ thick
- 2-3⁄4″ backset UL listed latch bolt. Standard for all functions.
- 2-3⁄8″ BS available upon request
- 1-1⁄4″ x 4-7⁄8″ ANSI strike. Standard for all leversets, all functions.
- 6 pin solid brass SC-1 ILCO #1145 keyway, keyed to 5 pins
- Special keying available (master and grand master)
- 2 keys
- Separate lever spring mechanisms help prevent sag
- 1⁄2″ throw solid brass latch-bolt, UL listed, three hour fire rated
- Full 5″ long handles on all levers in all functions
- Accepts Lori 1539/1590; ILCO 7035; DOM 1x5HT Medeco 20-200A1 or ASSA cylinder plugs
- Convertible posts
SL8160 Series with Single Step Roses:
- Entry Lock Boxed:
- SL8160A03KD: Polished brass keyed different
- SL8160A03KU: Polished brass KU
- SL8160A04KD: Satin brass plated keyed different
- CSL8160A03KD: Polished brass (Clutch)
- SL8160A04KU: Satin brass plated key #U
- SL8160A10BKD: Oil rubbed bronze keyed different
- CSL8160A10BKD: Oil rubbed bronze (clutch)
- SL8160A10BK_ (add KA#): Oil rubbed bronze key #U, #W, #X
- SL8160A26DKD: Dull chrome keyed different
- CSL8160A26DKD: Dull chrome (clutch)
- SL8160A26DK_ (add KA#): Dull chrome key #U, #W, #X
- SL8160A26DMKD: Dull chrome master keyed
- SL8160A26DK2: Dull chrome keyed alike in 2
- SL8160A26DIC: Dull chrome accepts IC
- SL8160A26KD: Polished chrome keyed different
- SL8160A26KU: Polished chrome key #U
- Passage Set Boxed:
- SL8160N03: Polished brass
- SL8160N10B: Oil rubbed bronze
- SL8160N26: Polished chrome
- SL8160N26D: Dull chrome
- SL8160N04: Satin brass plated
- Privacy Lock Boxed:
- SL8160P03: Polished brass
- SL8160P10B: Oil rubbed bronze
- SL8160P26: Polished chrome
- SL8160P26D: Dull chrome
- SL8160P04: Satin brass plated
- Storeroom Lock Boxed:
- SL8160D03: Polished brass
- CSL8160D03: Polished brass (clutch)
- SL8160D10B: Oil rubbed bronze
- CSL8160D10B: Oil rubbed bronze (clutch)
- SL8160D10BIC: Oil rubbed bronze accepts IC
- SL8160D26: Polished chrome
- SL8160D26D: Dull chrome
- CSL8160D26D: Dull chrome (clutch)
- SL8160D26DIC: Dull chrome accepts IC
- SL8160D04: Satin Brass Plated
- SL8160R26DINT: Intruder dull chrome
- SL8160R26DINTIC: Intruder dull chrome for IC
- SL816RDC26D: Double cylinder dull chrome
- Classroom Lock Boxed:
- SL8160R03: Polished brass
- SL8160R10B: Oil rubbed bronze
- CSL81600R10B: Oil rubbed bronze (clutch)
- SL8160R26: Polished chrome
- SL8160R26D: Dull chrome
- CSL8160R26D: Dull chrome (clutch)
- SL8160R26DIC: Dull chrome accepts IC
- SL8160R04: Satin brass plated
- SL8160RDC26D: Double cylinder dull chrome
- Dummy Levers Boxed:
- SL8160Y03: Polished brass
- SL8160Y10B: Oil rubbed bronze
- SL8160Y26: Polished chrome
- SL8160Y26D: Dull chrome
- Dummy Levers Boxed:
- SL8160TC03: Polished brass
- SL8160TC10B: Oil rubbed bronze
- SL8160TC26D: Dull chrome
Attributes
Backset: 2-3/4″
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Cylinder Included: No
Cylinder Type: N/A
Door Bore Size: 2-1/8″
Door Thickness Max: 2″
Door Thickness Min: 1-3/8″
Finish Code: US26D
Finish Color: Satin Chrome
Function: Privacy
Grade: Grade 2
Handing: Field Reversible
Knob/ Lever Design: SL
Knob/ Lever Style: Lever
Latch Bolt Face Type: Connectivity
Latch Bolt Faceplate Size: 2-1/4″ x 1-1/8″
Latch Bolt Throw: 1/2″
Latch Bolt Type: Springlatch
Lock Category: Cylindrical Lock
Rose/ Escutcheon Size: 3-3/8″
Rose/ Escutcheon Style: Rose
Series: SL8160 Series
Strike Size: 4-7/8″ x 1-1/4″
