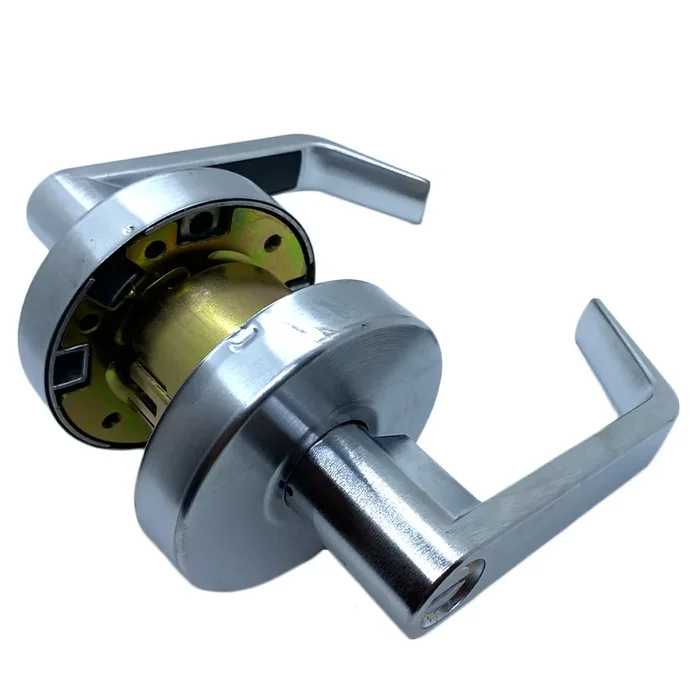

Accentra AU4601LN-626-497 Augusta Passage Lever Lock, 2-3/4″ Backset, ANSI Strike, Grade 2, Satin Chrome
Accentura 4600LN Cylindrical Locks offer a reliable locking solution designed for a variety of commercial applications. These locks are certified to ANSI/BHMA grade 2 standards and UL fire-listed for all functions, ensuring both quality and safety. Their field-reversible handing simplifies installation, making them suitable for various door configurations. With a range of five trims and six finishes, the 4600LN series is not only functional but also aesthetically pleasing, allowing for seamless integration into any commercial environment. The ADA-compliant lever enhances accessibility, making these locks user-friendly for all individuals. Their fire rating of up to three hours provides additional peace of mind. Engineered for flexibility, the locks accommodate standard backset depths of 2 3/4″ and door thicknesses from 1 3/8″ to 1 3/4″. The 6-pin cylinder format and ANSI curved lip strike type guarantee secure operation. Additionally, the 4600LN series comes with a 3-year mechanical warranty, reflecting Accentra’s commitment to durability. Available in various functions such as passage, privacy, and entry, the 4600LN series caters to diverse locking needs. Whether for office, classroom, or storeroom use, these locks are a cost-effective choice for any budget-conscious project.
Passage Augusta Lever Lock, 2-3/4in Backset, ANSI Strike, Grade 2, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The 4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN series is certified to ANSI/BHMA grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.
Features:
- Field reversible handing for easy installation
- Range of functions and other options for a wide variety of commercial applications
- Available in 5 trims and 6 finishes
- ADA compliant lever for ease of accessibility
- UL/cUL fire rated up to 3-hours
- Field reversible handing and other product options offer flexibility in many commercial applications
- Priced affordably to suit projects of all budgets
- Certified grade 2, ANSI/BHMA A156.2, Series 4000
- Windstorm certified (refer to local codes)
- 3-year mechanical warranty
Specifications:
- Backset Depth (Standard): 2 3/4″
- Cylinder Format: Conventional, small format
- Cylinder Pins: 6 pin
- Door Thickness (Standard): 1 3/4″
- Handing: Non-handed
- Latchbolt Throw: 1/2″
- Maximum Backset: 2 3/4″
- Minimum Backset: 2 3/8″
- Maximum Door Thickness: 1 3/4″
- Minimum Door Thickness: 1 3/8″
- Number of Keys: 2
- Strike Type: ANSI curved lip
- UL Listed: Yes
- ULC Listed: Yes
Non-Cylinder Functions:
- 4601LN: Passage, Closet
- ANSI No. F75
- For doors that do not require locking.
- Either lever operates latchbolt at all times.
- 4602LN: Privacy Bath/Bedroom
- ANSI No. F76A
- For lavatory or other privacy doors.
- Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
- Button automatically releases when inside lever is turned or door is closed.
- Emergency release in outside lever.
- Inside lever always active.
- 4628LN: Communicating Passage Lock
- ANSI No. F111
- For twin communicating or exit doors where one side operation is required.
- Also when space is limited between door and switch panel.
- Deadlocking latchbolt.
- One lever operation.
- Blank rose.
- Should be used only where rooms have more than one entrance.
- 4655LN: Dummy Trim
- ANSI No. NA
- For non-operational levers used for decorative trim.
- Rigid lever.
Single Cylinder Functions:
- 4604LN: Entry, Office
- ANSI No. F82A
- For entrance or office doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked from inside).
- Pushing button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
- Latchbolt is operated by key in outside lever or by rotating inside lever.
- Inside lever always active.
- 4605LN: Storeroom or Closet
- ANSI No. F86
- For use on storeroom, utility, exit doors.
- Deadlocking latchbolt.
- Latchbolt operated by lever inside, key in outside lever.
- Outside lever always rigid.
- Inside lever always active.
- 4607LN: Entrance or Office
- ANSI No. F109
- For entrance, general home or office doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked from inside).
- Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
- Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
- Latchbolt is operated by key in outside lever or by rotating inside lever.
- Inside lever always active
- 4608LN: Classroom
- ANSI No. F84
- For classroom or utility room doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked by key).
- Inside lever always active.
- Key releases outside lever.
Levers:
- AU: Augusta
- PB: Pacific Beach
- MO: Monroe
- TB: Reflections – Hudson series
- UB: Reflections – Hudson series
Finishes:
- 605 – Bright brass, clear coated
- 606 – Satin brass, clear coated
- 613E – Dark oxidized satin bronze-equivalent
- 625 – Bright chromium plated over nickel
- 626 – Satin chromium plated over nickel
- BSP – Black suede powder coat, sprayed
Attributes
Alternate Codes: AU4601LN26D-497, AU4601LN26D497, AU4601LN 497 626, AU4601LN-626-497, AU4601LN626497, YALAU4601LN26D-497, YALAU4601LN 497 626
Category: Commercial Locks, Lock Sets
