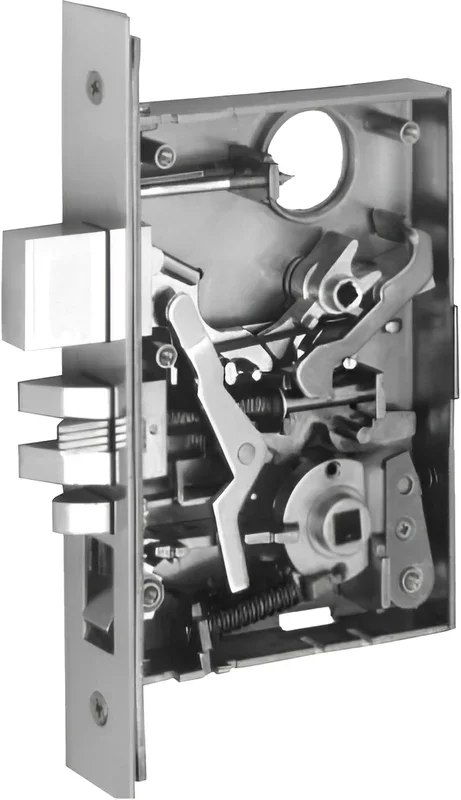

Marks Hardware 5N/32DLH-B4 Passage Mortise Body for Lever Sets, 2-3/4″ Backset, Grade 1, Stainless Steel
Marks Hardware 5N/32DLH-B4 Passage Mortise Body Only is designed for high-traffic environments, offering exceptional durability and reliability. Engineered by Marks USA, a leader in mortise lock technology for over 30 years, this model guarantees maintenance-free performance and has been tested to exceed 6 million cycles of continuous use. This Grade 1 mortise lock meets ANSI-A156.13 specifications, ensuring it withstands rigorous demands. Its robust construction features stainless steel bolts and latches, providing a secure 1-inch bolt throw and a 3/4-inch anti-friction latch throw. The case is crafted from stamped steel with a zinc dichromate finish, ensuring longevity and resistance to wear.With a backset of 2-3/4 inches, the Marks Hardware 5N/32DLH-B4 is compatible with various lever sets, making it a versatile choice for both residential and commercial applications. The adjustable bevel front measures 1-1/4 inches by 8 inches, allowing for easy installation and adaptability to different door styles.This model also boasts a 3-hour fire rating certified by Underwriters Laboratories and comes with a lifetime mechanical warranty, underscoring its reliability and safety. Upgrade your security with the trusted performance of Marks Hardware’s 5N/32DLH-B4 Passage Mortise Body.
Passage Mortise Body Only, for Lever Sets, 2-3/4in Backset, Latch Only, Front 1-1/4 x 8in, Grade 1, 630/US32D Stainless Steel
Notice: The info below is not item specific.
Marks USA has been making mortise locks for over 30 years. From their introduction, our mortise locks have enjoyed a reputation for long life and their ability to excel in high traffic, high abuse areas. Marks USA mortise locks are engineered to provide years of maintenance-free performance. Our Nova series mortise locks exceed 6 million cycles of continuous use.
Features:
- Meets ANSI grade 1 specification: ANSI-A156.13
- Underwriters laboratories 3-hour fire rating
- BHMA Certified
- Lifetime mechanical warranty
- Available in 2-1/2″ and 2-3/4″ backset
- Stainless steel bolts, latches, independent lever support springs (on lever sets)
Specifications:
- Backset: 5 Series 2-3/4″; 55 series 2-1/2″
- Bolt throw: Stainless steel full 1″ throw
- Latch throw: 3/4″ (anti-friction)
- Auxiliary latch: 1/2″ throw
- Case: Stamped steel 090 thick, zinc dichromate finish
- Front: 1-1/4″ x 8″, adjustable bevel
- Hubs: Steel, 9/32″ on diamond 5/16″ on square w/security separator
Keyed Single Cylinder, No Deadbolt Functions:
- D: Office/vestibule
- DW: Vestibule
- E/Q/QH/K: Office, ANSI F04
- EW: Storeroom, ANSI F07
- J: Classroom, ANSI F05
- JM/JR: Hospital (holdback), ANSI F06
- GL: Inst. privacy, ANSI F26
- MT: ArchiTech
- EL: Electrically locked
- EU: Electrically unlocked
Keyed Single Cylinder, with Deadbolt Functions:
- A: Entrance, ANSI F08, F10
- B: Entrance, ANSI F21
- F: Dormitory, ANSI F12
- FS: Dormitory
- FW: Dormitory, ANSI F13
- FD: Apartment, ANSI F20
- H: Hotel, ANSI F15
- LH: Spec. privacy
Keyed Double Cylinder, No Deadbolt Functions:
- G: Entrance, ANSI F09
- GC: Intruder latchbolt, ANSI F32
- GG: Classroom security
- GR: Classroom security w/holdback
- WW: Institution, ANSI F30
Keyed Double Cylinder, with Deadbolt Functions:
- AC: Entrance, ANSI F35
- C: Storeroom, ANSI F14
- FC: Intruder deadbolt, ANSI F34
- FA: Dormitory, ANSI F11
- FX: Dormitory, ANSI F33
Keyless Functions:
- N: Passage
- L: Bathroom, ANSI F02
- LF/LJ: Privacy, ANSI F19
- EX: Exit, ANSI F31
Finishes:
- 3 – Bright brass
- 32D – Stainless steel
- 10B – Dark bronze
- 26D – Satin chrome
Attributes
Alternate Codes: 113208, 5N/32DLH-B4, 5N32DLHB4
Backset: 2-3/4″
Bolt Throw: 1″
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Certifications: A156.13, ANSI, BHMA
Cylinder Type: Less Cylinder
Door Application: Mortise Locks
Faceplate Height: 8″
Faceplate Width: 1-1/4″
Finish Code: 630
Finish Color: Satin Stainless Steel
Function: Keyless, Passage
Grade: Grade 1
Handing: Left Handed
Latch Throw: 3/4″
Manufacturer: Marks USA
Mechanical Option: Lever Springs
Series: Series 5
