Description

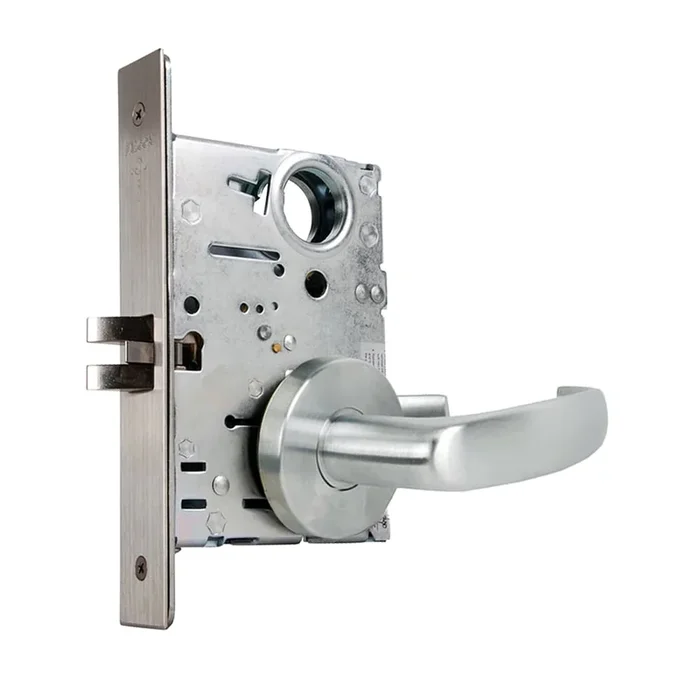

Falcon Lock MA101 QG 630 Passage Mortise Knob Lock
Falcon MA101 QG 630 Passage Mortise Knob Lock offers reliable performance ideal for various commercial applications, including offices, hospitals, and educational facilities. This Grade 1 mortise lock features a non-keyed Quantum lever design with an elegant Gala Rose and a durable satin stainless steel finish, ensuring both security and style. Engineered for high traffic areas, the MA Series lock is built to withstand constant use while maintaining its integrity. Its field-reversible handing allows for easy installation, accommodating door thicknesses ranging from 1-3/8″ to 2-1/2″. The case is constructed from cold-formed steel, zinc dichromate plated for enhanced durability, while the hardened steel hubs provide added strength. The lock features a heavy-duty, two-piece stainless steel latch bolt with a 3/4″ projection, ensuring smooth operation. The deadbolt offers a 1″ throw, complete with a saw-resistant roller for increased security. Additionally, the lock is compatible with SFIC products, making retrofitting straightforward with interchangeable core options. Certified to meet ANSI/BHMA 156.13 standards and UL Listed for up to 3 hours of fire rating, the Falcon MA101 lock combines functionality with robust security. Trust in one of the industry’s leading brands for your door hardware needs.
Passage Mortise Knob Lock
Grade 1 Passage/Closet Mortise Lock, Non-Keyed, Quantum Lever, Gala Rose, Satin Stainless Steel Finish, Field Reversible
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1
Ansi Function: F01 – Passage
Base Material: Stainless Steel
Bolt Projection: 3/4″ Latch
Bolt Throw: 3/4″ Latch
Commercial Residential: Commercial
Cylinder Type: Non-Keyed
Door Thickness: 1-3/4″ to 1-7/8″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: MA101-Passage/Closet
Function Family: Passage
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Backset Dimension: 2-3/4″
Lever Knob: Lever
Leverknob Design: Q – Quantum Lever
Leverknob Design Family: Curved Return Lever
Lock Face Size: 8″ x 1-1/4″
Pack Height: 5″
Pack Length: 10.25″
Pack Qty: 1
Pack Width: 9″
Projection: 2-11/16″
Rose Escutcheon: Rose
Roseescutcheon Design: G – Gala Rose
Roseescutcheon Dimensions: 2-9/16″ Diameter
Screws: Combination
Series: MA Series Grade 1 Mortise Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Anti-Friction Latch
Std Strike Height: 4-7/8″
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Resources
- MA Series Grade 1 Mortise Locks Cut Sheet
- MA-Series Installation Instructions
- MA-Series Sell Sheet
- MA-Series Service Manual
- Video: Falcon MA Mortise Lock Installation
- Von Duprin Finishes Chart
