Description

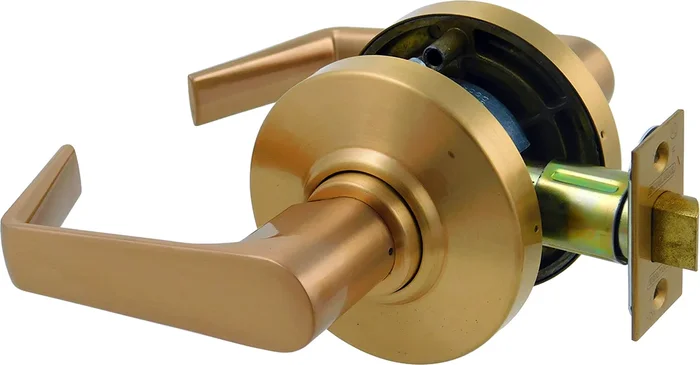

Schlage AL10SSAT612 Lock Cylindrical Lock
Both levers always unlocked
- Cold-rolled steel, machined and threaded hubs, and locking nuts prevent loosening of the lockset by securely bolting chassis to the door
- Large diameter of mounting plate and rose covers new ANSI hollow metal door cutout
- Patented door range adjuster allows quick and easy adjustment for doors ranging from 1-3/8″ to 1-7/8″ (35 mm to 48 mm) thick
- Key removable outside lever for quick re keying and easy cylinder replacement and keying
- Cold rolled steel, machined, threaded hubs and locking nuts prevent loosening of the lockset by bolting chassis to the door
- True through-bolting of door prevents lock chassis rotation and disengagement from latch
- Stainless steel interlocking spindle design for added strength against excess force when lever is in locked position or latch has been fully retracted
- Heavy duty cast mounting plate with specially tapped holes reduces loosening of through-bolting and lockset on the door
- Heavy duty compression springs extend the life of the spring cage and minimizes lever droop
- Patented door range adjuster allows quick and easy adjustment of the AL series for 35mm to 48mm thick doors
- Tested in excess of 400,000 operating cycles
Attributes
Alternate Codes: 118277, 121984, 170N/10, 170N10, AL10SSAT612
Ansi Function: F75 – Passage
Ansi Function : Passage
Baa Qualified: Yes
Backset: 2-3/4″
Bolt Protection: 1/2″
Bore Hole Diameter: 2-1/8″
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Mexico
Cylinder Included: No
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Bore Size: 2-1/8″
Door Thickness: 1-3/8 In. – 1-7/8 In.
Door Thickness Max: 1-7/8″
Door Thickness Min: 1-3/8″
Finish: Satin Bronze
Finish Color: Satin Bronze
Finish : Satin Bronze Clear Coated
Fire Rated: 3 Hours {A}
Function: 10-Passage Latch
Function Family: Passage
Grade: Grade 2
Hand: Not Handed
Handing: Field Reversible
Knob/ Lever Design: Saturn
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4″
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4″ x 1-1/8″
Latch Bolt Throw: 1/2″
Latch Bolt Type: Springlatch
Latch Bore Diameter: 1″
Latch Number: 11-116
Latch Type: Spring Latch (Unguarded)
Lever Knob: Lever
Lever Knob Design: SAT – Saturn
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Saturn
Lever Style: Angled Return Lever
Limited Warranty: 3 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4″ x 1-1/8″
Manufacturer Function: Passage
Manufacturer Function : Both levers always unlocked.
Maximum Door Thickness: 1-7/8″
Minimum Door Thickness: 1-3/8″
Projection: 2-1/2″
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16″
Rose/ Escutcheon Size: 3-7/16″
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: AL Series
Strike Dimensions: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8″
Strike Number: 10-025
Strike Size: 2-3/4″ x 1-1/8″
Strike Type: ASA
Strike Width: 1-1/4″
Structure Function: 10
Structure Latch: S
Structure Latch Number: 11-116
Structure Outside Finish: 612
Structure Outside Trim: SAT
Structure Series: AL
Structure Strike Number: 10-025
Subtype: Cylindrical Lock
Supplier: Schlage
Type: LOCK SETS
