Description

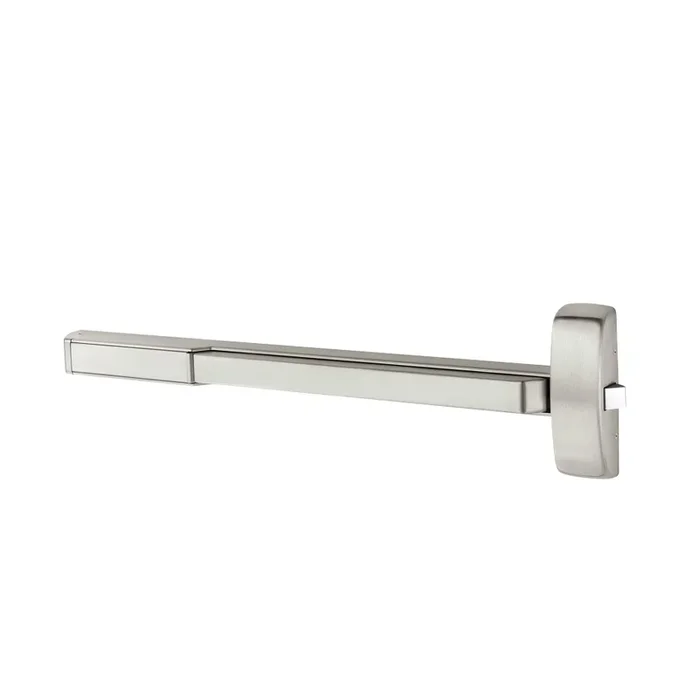

Sargent 56-PE8810F 32D PE 36″ Rim Exit Device
Sargent 56-PE8810F 32D PE Rim Exit Device 36″ delivers exceptional security and reliability for commercial applications. This Grade 1 Rim Exit Device features a wide stile pushpad and a robust design suitable for wood, metal, and aluminum doors. Engineered with innovation, the device includes hex key dogging and electric latch retraction, enhancing ease of use and functionality. The Sargent PE80 Series is built to exceed ANSI/BHMA Grade 1 standards, ensuring durability in high-impact environments. Its hidden dogging mechanism and large chassis indicator viewing window add to its user-friendly features. The device is designed for strength, capable of withstanding abusive conditions while providing a sleek aesthetic with a satin stainless steel finish. Security is paramount, with options such as pushrail dogging and a lock status indicator available. Additionally, the master keying options with Sargent Security Key systems offer further customization for enhanced access control.With a 10-year warranty backing its robust construction, the Sargent 56-PE8810F not only meets safety regulations but also contributes to sustainability efforts through its long life and high post-consumer recycled content. Ideal for any commercial setting, this exit device seamlessly blends strength, security, and style.
PE Rim Exit Device 36″
Grade 1 Rim Exit Device, Wide Stile Pushpad, 36″ Device, Dummy Function, For Wood, Metal, and Aluminum Doors, Hex Key Dogging, Electric Latch Retraction, Satin Stainless Steel Finish
The Sargent PE80 Series is the next generation of exit devices. Designed with innovation in mind, the powerful and exquisite exit device introduces new and enhanced features.
Designed with innovation in mind, this next generation of exit devices introduces new and enhanced features.
The SARGENT PE80 Series is the next generation of exit devices. Designed with innovation in mind, the powerful and exquisite exit device introduces new and enhanced features. Ideal for environments that require maximum strength and durable security solutions, all configurations (rim, mortise, surface vertical and concealed vertical rod) exceed ANSI/BHMA Grade 1 requirements.
Features
Innovation
- All wires for electromechanical options are routed through the rail
- Vertical rods adjusted at the center case on CVR and SVR devices
- Hidden dogging mechanism
- Large chassis indicator viewing window
- EcoFlex® technology on all electrified trim
- Improved Delayed Egress functionality
- Enhanced Motorized Electric Latch Retraction features
- Motorized Electric Latch Retraction available with FEMA certified devices
- 5lb pressure latch release optional on all rim and concealed vertical rod device types to comply with California building codes
Security
- Pushrail dogging option available, with or without indicators
- Lock Status Indicator option available for rim devices
- Torx® screws
- Master keying with Sargent Security Key systems available (Degree®, Signature, Keso F1, Keso and XC)
Strength and Durability
- ANSI/BHMA A156.3 Grade 1 certified
- Robust end cap design for high impact environments
- Built to withstand abusive conditions and designed to deflect impacts from carts
- Heavy duty mounting construction
- 10-year warranty
Aesthetics
- Multiple trim options for wide and narrow stile applications
- Flush pushbar and rail carrier design to minimize catch points
- No visible fasteners on rail assembly
- Mixed finish options
- Available with Studio Collection decorative lever trim
- Available with MicroShield or CuVerro Shield coating
Benefits
- Strength & Reliability: Independently-verified cycle and strength testing proves an extended life of the PE80 Series
- Security: Multiple security features provide additional resistance against vandalism and unauthorized entry
- Aesthetics: Attractive, minimalist design featuring many levers and architectural finishes to blend with any décor
- Sustainable: Contributes to your sustainability efforts – less product replacements due to long life and high post-consumer recycled content.
Attributes
Ansi: A156.3 A156.41
Commercial Residential: Commercial
Device Length: 36″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Wood, Metal, Aluminum
Door Thickness: 1-3/4″
Door Width: 36″
Electric Options: Electric Latch Retraction
Finish: 630/US32D
Finish Family: Matte Silver
Grade: Grade 1
Includes Trim: No
Installation: Commercial
Mechanical Function: Dummy
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Series: PE80 Series Exit Devices
Strike Standard: 649
Subtype: Rim Exit Devices
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
