Compx C8101-KA915-26D Pin Cam Lock 15/16in

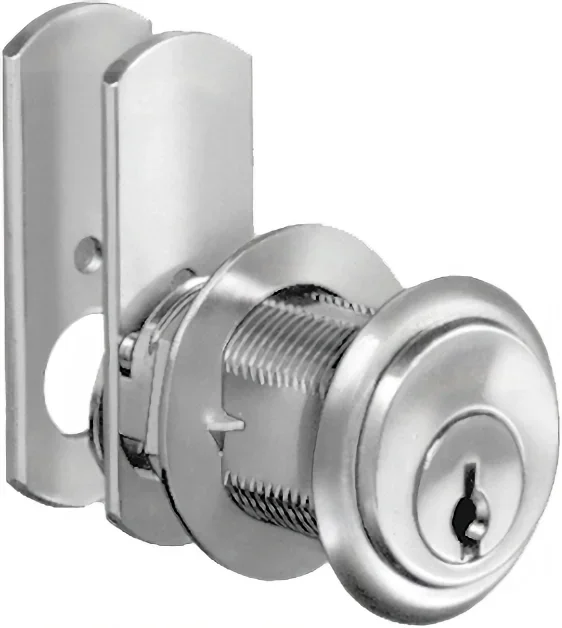

Compx Security Products C8101-KA915-26D Pin Cam Lock 15/16″ offers a robust solution for securing drawers and doors with lipped or overlay construction. Designed for versatility, this multi-functional pin tumbler lock features a 15/16″ cylinder length and accommodates a maximum material thickness of 5/8″. The innovative shifter mechanism allows for a 360° key turn, which rotates the cam 90° in either direction, making it adaptable to various applications. With the C8101, you receive two keys, a trim washer, a spur washer for wood, a mounting nut, and two cams, ensuring you have everything needed for installation. The lock’s design permits key removal in both locked and unlocked positions, enhancing convenience. Additionally, the lock is compatible with the D4291 key blank, allowing for easy keying to other pin tumbler locks.Finished in satin chrome (US26D), this lock not only provides security but also adds a sleek appearance to your furniture or fixtures. Ideal for both right-hand and left-hand door configurations, the C8101 is an excellent choice for professionals and homeowners alike seeking reliable and stylish security solutions.
Pin Cam Lock 15/16in
Notice: The info below is not item specific.
C8101, C8102, C8103, C8106, C8108, C8109:
- Through the use of a shifter, the 360° key turn turns the cam 90° in either direction. Actual application determines which cam position is the locked position. Each lock is furnished with an alternate cam for opposite cam turn.
- Note: The C8102, is a Multi-Functional Pin Tumbler Cam Lock with a 1-1/16″ Cylinder Length. The lock is packaged with four (4) cams, two straight and two double formed. This allows the lock to be used for multiple applications for either drawer or right hand/left hand doors with lipped or overlay construction.
- Application: For drawer, R.H. or L.H. doors. C8103 and C8109 are for lipped or overlay construction. For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail below. The other locks are for flush application.
- Operation: 90° cam turn, key removable in both locked and unlocked positions.
- Keying: Will key together in most cases with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
- Packaging: Supplied with two keys, trim washer, spur washer for wood, mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately.
| Part No. | Type of Mounting | Cylinder Length | Max. Material Thickness | KACodes | KD Changes | MKKD Changes | Case QTY | Reference Number | Key Blank |
| C8101-26D | Lipped/Overlay | 15/16″ | 5/8″ | 4 | 850 | 650 | 10 | M2-0106B | D4291 |
| C8101-4 | Lipped/Overlay | 15/16″ | 5/8″ | 2 | 850 | – | 10 | M2-0106B | D4291 |
| C8102-26D | Flush | 1-1/16″ | 3/4″ | 4 | 850 | 650 | 10 | M2-0106DF | D4291 |
| C8102-4 | Flush | 1-1/16″ | 3/4″ | 2 | 850 | – | 10 | M2-0106DF | D4291 |
| C8103-26D | Lipped/Overlay | 1-3/16″ | 7/8″ | 4 | 850 | 650 | 10 | M2-0106L | D4291 |
| C8103-3 | Lipped/Overlay | 1-3/16″ | 7/8″ | 2 | 850 | – | 10 | M2-0106L | D4291 |
| C8106-26D | Flush | 1-7/16″ | 1-1/8″ | 4 | 850 | 650 | 10 | M2-0106MF | D4291 |
| C8106-4 | Flush | 1-7/16″ | 1-1/8″ | 2 | 850 | – | 10 | M2-0106MF | D4291 |
| C8108-26D | Flush | 1-3/4″ | 1-3/8″ | 4 | 850 | 650 | 10 | M2-0106NF | D4291 |
| C8108-4 | Flush | 1-3/4″ | 1-3/8″ | 2 | 850 | – | 10 | M2-0106NF | D4291 |
| C8109-26D | Lipped/Overlay | 1-3/4″ | 1-1/2″ | 4 | 850 | 650 | 10 | M2-0106N | D4291 |
| C8109-4 | Lipped/Overlay | 1-3/4″ | 1-1/2″ | 2 | 850 | – | 10 | M2-0106N | D4291 |
Key Codes Used:
- 2 Codes – 107 and 915.
- 4 Codes – 101, 103, 107 and 915.
Features
- Operation: 90° cam turn, key removable in both locked and unlocked positions.
- Keying: Will key together in most cases with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
- Note: The C8102, is a Multi-Functional Pin Tumbler Cam Lock with a 1-1/16″ Cylinder Length. The lock is packaged with four (4) cams, two straight and two double formed. This allows the lock to be used for multiple applications for either drawer or right hand/left hand doors with lipped or overlay construction.
- Packaging: Supplied with two keys, trim washer, spur washer for wood, mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately.
- Through the use of a shifter, the 360° key turn turns the cam 90° in either direction. Actual application determines which cam position is the locked position. Each lock is furnished with an alternate cam for opposite cam turn.
- Application: For drawer, R.H. or L.H. doors. C8103 and C8109 are for lipped or overlay construction. For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail below. The other locks are for flush application.
Attributes
Alternate Codes: 138899, C8101-KA915-26D, C8101KA91526D, COMC8101KA91526D
Category: Cam & Drawer, Cam & Drawer Locks Etc., Lock Sets
Finish Code: US26D
Finish Color: Satin Chrome
Lock Style: Cam Lock
Size: 15/16″
