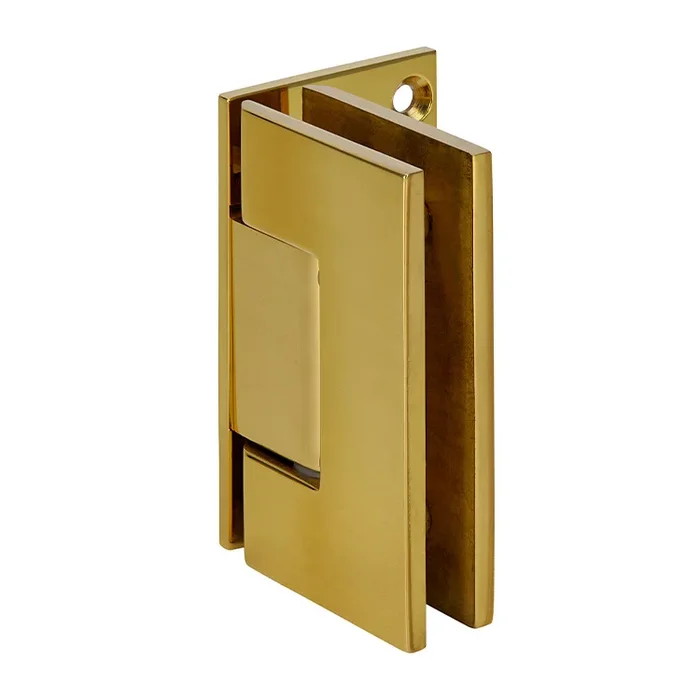

CRL V1E044BR Polished Brass Vienna 044 Wall Mount Offset Back Plate Hinge
C.R. Laurence V1E044BR Polished Brass Vienna 044 Series Wall Mount Offset Back Plate Hinge is expertly designed to support wider and heavier glass doors, making it ideal for both residential and hotel shower applications. Accommodating 3/8″ to 1/2″ (10 to 12 mm) tempered safety glass, this hinge can hold up to 100 lbs. (45 kg) with two hinges, or up to 130 lbs. (59 kg) when using three hinges. Crafted from solid brass and finished in a luxurious polished brass, the Vienna hinge not only offers exceptional strength but also enhances aesthetic appeal. The hinge features a standard reversible pivot pin, marked for 90-degree and 85-degree activation, allowing for flexibility in installation. Additionally, custom pivot pins can be specified for non-standard angles, ensuring a precise fit for unique installations. Included with the hinge are gaskets, screws, and glass fabrication dimensions, streamlining the installation process. With a self-centering mechanism that activates within 15 degrees of the closed position, this hinge guarantees reliable operation. Available in multiple beautiful finishes, the CRL Vienna hinge is a smart choice for creating elegant, functional spaces while providing a three-year warranty for peace of mind.
Polished Brass Vienna 044 Series Wall Mount Offset Back Plate Hinge
- Accommodates 3/8″ to 1/2″ (10 to 12 mm) Glass
- Available in Several Beautiful Finishes
- 3 Year Warranty
- Wall Mount Offset Back Plate Standard Model
- Use Monolithic Tempered Glass
CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of “mouse-ears” type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it’s own CRL “mouse-ears” cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it’s own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.
STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate “off-angle” installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 3/8″ glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34″ (864 mm).
Using two hinges with 1/2″ glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32″ (813 mm).
Using three hinges with 3/8″ glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34″ (864 mm).
Using three hinges with 1/2″ glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32″ (813 mm).
SPECIFICATIONS:
Glass Thickness: 3/8″ (10 mm) to 1/2″ (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required – Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
5 Degree Pre- Set: No
Adjustable: No
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Design Style: Squared
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in. to 1/2 in. (10 mm to 12 mm)
Height: 3-15/16 in. (100 mm)
Material: Brass
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Maximum Door Weight – 2 Hinges: 100 lbs. (45.4 kg)
Maximum Door Weight – 3 Hinges: 130 lbs. (59 kg)
Maximum Door Width – 1/2 Glass: 32 in. (813 mm)
Maximum Door Width – 3/8 Glass: 34 in. (864 mm)
Maximum Door Width -1/2 Glass: 32
Mounting Type: Wall Mount
Opening Style: Swing(side)
Self- Centering: Yes
Series: Vienna
Shipping Limitations: None
Width: 2-1/4 in. (57 mm)
