Description

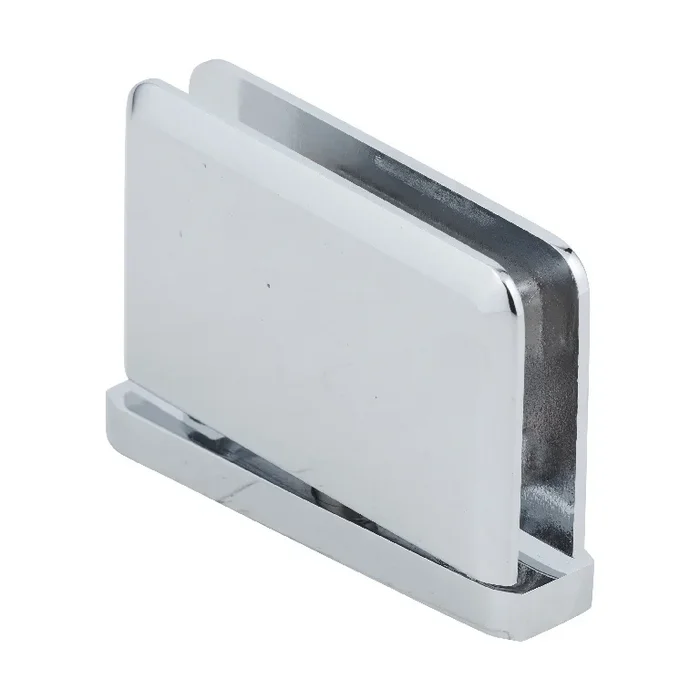

CRL PPH0151CH Polished Chrome Prima 01 Series Pin Top Left/Bottom Right Mount Hinge
C.R. Laurence PPH0151CH Polished Chrome Prima 01 Series 1 Pin Top Left or Bottom Right Mount Hinge offers a sophisticated solution for your shower door installations. Specifically designed for use with 5/16″ (8 mm) to 3/8″ (10 mm) thick tempered safety glass, this hinge features a patented 5-degree pre-set pivot pin. This innovative design allows the door to close an additional 5 degrees into the enclosure, ensuring a snug fit against the strike jamb. Manufactured from solid brass, the hinge combines durability with elegance, available in a variety of beautiful finishes to suit any bathroom aesthetic. The hinge supports a maximum door weight of 100 lbs. (45.4 kg) and accommodates door widths up to 31 inches (787 mm), making it versatile for a range of designs. It includes all necessary gaskets and screws, as well as glass fabrication dimensions for straightforward installation. With a self-centering feature when within 15 degrees of closing, the C.R. Laurence Prima hinge ensures smooth operation and reliability. Backed by a 3-year warranty, this hinge is perfect for residential or hotel shower applications. Please note, proper installation requires both the #1 and #2 Pivot Pin models. For custom finishes, contact the CRL Technical Sales Shower Door Department.
Polished Chrome Prima 01 Series 1 Pin Top Left or Bottom Right Mount Hinge
- Number One Pivot Pin Model for Mounting at Top Left or Bottom Right of Door (Viewed from Outside)
- Pre-Set 5 Degree Pin for Tighter Door Closure
- Available in Several Beautiful Finishes
- 3 Year Warranty
- Use Monolithic Tempered Glass
- U.S. Patent 5,297,313
CRL Prima 5 degree Pre-Set Hinges are designed for use with 5/16″ (8 mm) to 3/8″ (10 mm) thick tempered safety glass. All door installations using these 5° pre-set hinges will require the use of both, the #1 Pin & the #2 Pin hinges per opening, one for the top and the other for the bottom. The #1 Pivot Pin Model is to be used at the top left or bottom right of the door. The #2 Pivot Pin Model is to be used at the top right or bottom left of the door. They can then be positioned with the options described herein. The 5 degree Pivot Pins allow the door to close 5 degree further into the shower enclosure. This is especially helpful when closing the door tightly against a strike jamb. These hinges may be mounted floor and ceiling, or into our Deluxe Header System.
Using two hinges with 5/16″ to 3/8″ glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 31″ (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16″ (8 mm) to 3/8″ (10 mm) Tempered Safety Glass
Special Features: Contains Pre-Set 5 degree Pivot Pin, which allows the door to close 5 degree further into the shower enclosure (see Ordering Tip*).
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
*ORDERING TIP: When ordering Prima 5 degree Pre-Set Hinges, you should order one each of the Number One Pivot Pin Model, and one each of the Number Two Pivot Pin Model per door.
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
5 Degree Pre- Set: Yes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Edge Profile: Beveled
Finish/ Color:: Polished Chrome
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 2 in. (51 mm)
Material: Brass
Maximum Door Weight: 100 lbs. (45.4 kg)
Maximum Door Width: 31 in. (787 mm)
Mounting Type: Head & Sill Mount
Self- Centering: Yes
Series: Prima
Shipping Limitations: None
Width: 3-5/8 in. (92 mm)
Resources
- Frameless Shower Door Glass and Hardware Cleaning Instructions
- Frameless Shower Door Hardware Catalog
- Frameless Shower Door Quote Request Form
- PPH01 Detailed CAD Drawings.dwg
- PPH01 Detailed CAD Drawings.pdf
- PPH0151 Template
