CRL GCB335CH Polished Chrome 135 Movable Transom Clamp
C.R. Laurence GCB335CH Polished Chrome Traditional Style 135 Degree Movable Transom Clamp is expertly designed for modern architectural applications. This clamp accommodates glass thicknesses ranging from 5/16″ to 1/2″ (8 to 12 mm) and is ideal for use with monolithic tempered glass. Its innovative movable transom feature allows for the release of steam, enhancing the functionality of glass installations, particularly in shower and steam environments. Crafted from solid brass, the GCB335CH boasts a polished chrome finish that not only adds a touch of elegance but also ensures durability and resistance to corrosion. This clamp can be used in conjunction with other CRL movable transom clamps, providing versatility and ease of installation. For optimal performance, the clamp should be centered on the glass, with a proper miter cut on the fixed panel. Additionally, the maximum transom size supported is 12″ x 30″ (305 x 762 mm), making it suitable for various project scales. The product includes necessary gaskets and requires specific glass fabrication with a 5/8″ or 3/4″ (16 or 19 mm) diameter hole in the movable transom. Whether for residential or commercial projects, the CRL GCB335CH is a reliable choice for creating stunning glass installations with ease and style.
Polished Chrome Traditional Style 135 Degree Movable Transom Clamp
- For 5/16″ to 1/2″ (8 to 12 mm) Thick Glass
- Use Monolithic Tempered Glass
- Glass Transom Swivels to Allow Release of Steam
- Can Be Used in Conjunction with Other CRL Movable Transom Clamps
These

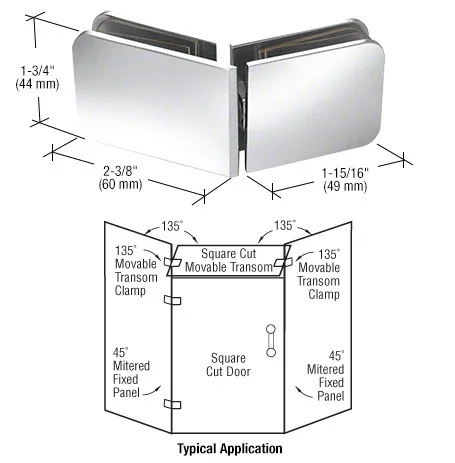

CRL Clamps can also be used in combination with our Wall Mount Movable Transom Clamp (Cat. No. GCB186), or our 180 Degree Glass-to-Glass Movable Transom Clamp (Cat. No. GCB188). The movable transom and the door should be square cut, while the fixed panel using the 135 Degree Movable Transom Clamp should be mitered at 45 degrees. Clamp should be centered on glass for optimum performance. Replacement parts are Cat. Nos. 90295A120 (Nylon Washer), 193004 (Nylon Lock Nut), 211039 (Flat Head Screw), and UCG77 (Gaskets).
SPECIFICATIONS:
Glass Thickness: 5/16″ to 1/2″ (8 to 12 mm)
Material: Solid Brass
Glass Fabrication Required: 5/8″ or 3/4″ (16 or 19 mm) diameter hole in movable transom, notch in the fixed panel.
Includes: Gaskets
NOTE: Maximum transom size is 12″ x 30″ (305 x 762 mm) wide. Larger transoms require the use of Square or Beveled Transom Clamps, or pivot hinges used as movable transom clamps. Call for details.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glass To Glass Angle: 135
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)
Material: Brass
Mounting Type: Glass To Glass
Series: Traditional
Shipping Limitations: None
