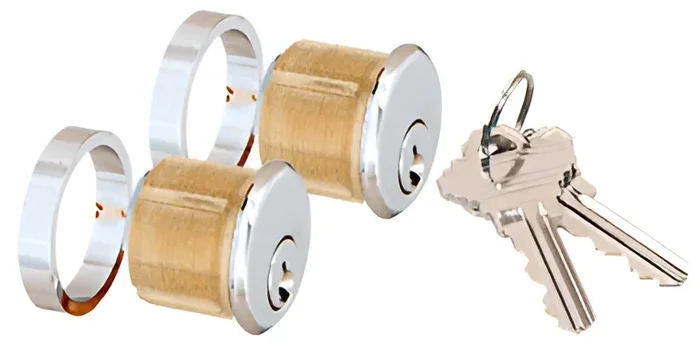

CRL AMR205CCPS Polished Stainless AMR Double Keyed Cylinders
C.R. Laurence AMR205CCPS Polished Stainless AMR Series Double Keyed Cylinders offer a sophisticated solution for securing glass doors and panels. Crafted with a high-density cast body, this durable locking mechanism ensures robust performance and reliability in a variety of applications. Designed for use with 3/8″ or 1/2″ (10 or 12 mm) glass, these cylinders come with gaskets that facilitate seamless integration into your projects. Available in five architectural finishes, the AMR205CCPS is not only functional but also enhances the aesthetic appeal of your installations. These cylinders can be mounted on the top or bottom of doors, or even on the vertical edge, making them versatile for diverse architectural needs. They can be secured to a jamb with the included keeper or attached to glass panels using optional keepers like the AMR206 Sidelite Mount Keeper. For double door applications, a bottom patch lock is required on the inactive leaf, ensuring complete security for the pair of doors. The product comes with a template and instructions for easy installation, although keepers and keyed options must be ordered separately. With a diameter of 1-5/32 in. (29 mm) and a polished stainless steel finish, the AMR205CCPS cylinders blend durability with elegance, perfect for professional-grade glazing projects.
Polished Stainless AMR Series Double Keyed Cylinders
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8″ or 1/2″ (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using theAMR206 Sidelite Mount Keeper. A variety of optional keepers, such as AMR207 and AMR208 are available to accommodate most types of installations.
Optional Cylinders include either AMR205CC Double Keyed Cylinders or AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4″ (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4″ (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Diameter: 1-5/32 in. (29 mm)
Finish/ Color:: Polished Stainless Steel
Shipping Limitations: None
Resources
- AMR205 Template for Door Jamb Mounting.dwg
- AMR205 Template for Door Jamb Mounting.pdf
- AMR205 Template.dwg
- AMR205 Template.pdf
- CRL Stainless Steel Disclaimer
