CRL PMR2V90PS Polished Stainless 90 Spider Fitting, Regular Duty, 2V Arm Column Mount
C.R. Laurence PMR2V90PS Polished Stainless Regular Duty Spider Fitting 90 Degree 2V Arm Column Mount offers a robust solution for joining two glass panels at a 90-degree angle. Designed for use with monolithic tempered glass up to 1/2″ (12 mm) thick, this fitting is ideal for creating sleek, modern installations in both commercial and residential settings. Each fitting comes with the necessary hardware to securely mount to a post or column, ensuring a reliable connection. The included M16-2.0 x 99.5 mm (3-7/8″) stainless steel threaded stud, along with three matching nuts and washers, simplifies the installation process. For added versatility, replacement stud sets are available, allowing for easy maintenance or adjustments. The polished stainless steel finish not only enhances the aesthetic appeal but also provides a durable and corrosion-resistant surface. However, periodic maintenance is recommended to maintain its factory finish, as stainless steel is not entirely rust or stain-proof.For optimal performance, consider pairing this fitting with companion models PMR490BS or PMR490PS. With a regular load capacity and a clean design, the PMR2V90PS is an excellent choice for your architectural glass projects.
Polished Stainless Regular Duty Spider Fitting 90 Degree 2V Arm Column Mount
- For Use with Glass Up to 1/2″ (12 mm)
- Complete with Hardware to Mount to Post or Column
- Glass Attachments Sold Separately
- Use Monolithic Tempered Glass
This
CRL Double Arm Fitting is used to attach two 90 degree glass panels at the top or bottom of a structural corner post. Comes with a M16-2.0 x 99.5 mm (3-7/8″) stainless steel threaded stud and three matching nuts with washers. Replacement Stud Set is available.
For companion fitting use Cat. No. PMR490BS or PMR490PS Fittings.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Arms: 2
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Load Capacity: Regular
Material: Stainless Steel (Alloy 316)
Mounting Application: Post
Shipping Limitations: None
Resources
- CRL Stainless Steel Disclaimer
- CRL Stainless Steel Spider Fittings Test Report

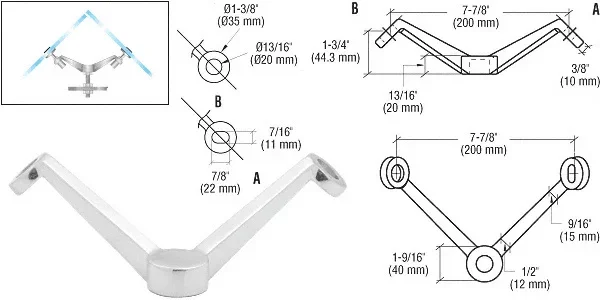

- PMR2V90 Detailed CAD Drawings.dwg
- PMR2V90 Detailed CAD Drawings.pdf
- Regular Duty Spider Fittings CAD Drawings.dwg
- Regular Duty Spider Fittings CAD Drawings.pdf
- Spider Fitting Glass Awning System CAD Drawings.dwg
- Spider Fitting Glass Awning System CAD Drawings.pdf
- Spider Fitting Installation Instructions
