Description

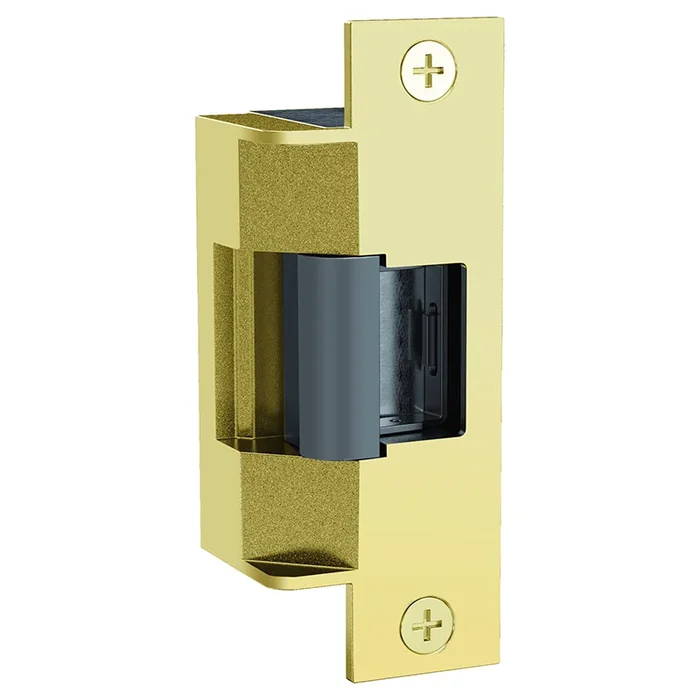

HES 7501 605 Electric Strike
The 7501 series electric strike is ideal for fire-rated applications with pre-load conditions which may be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The heavy duty stainless steel construction provides the strength and durability required to accommodate fire-rated latchbolts up to 3/4″ throw.
Attributes
Adjustability: Horizontal
Amp Draw: .45 Amps @ 12VDC, .25 Amps @ 24VDC
Baa Qualified: Yes
Commercial Residential: Commercial
Configuration: Centered
Country of Origin: Usa
Country of origin: USA
Dynamic Strength (ft-lbs): 70
Endurance (cycles): 1,000,000
Face Shape: Flat Face, Square Corners
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8 In. X 1-1/4 In.
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 605 Bright Brass, clear coated
Finish : Bright Brass
Finish Family: Polished Brass
Fire Rated: Yes
For Use With: Cylindrical Locks
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Installation: Commercial
Keeper Size: 3/4 In.
Latchbolt Accommodation: Up to 3/4″
Limited Warranty: 5 Years
Lock Type: Cylindrical Lock
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring
Operating Voltage: 12/24VDC
Origin: USA
Pack Qty: 1
Pre Load: 15 Lbs
Series: 7501 Series Electric Strikes
Shim Type: Field Adjustable
Strike Base Width (in): NA
Strike Body Depth (in): 1.6875
Strike Body Height (in): 4.87
Subtype: Electric Strike
Surface Mounting: Cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Use With: Cylindrical Locks
Voltage: 12/24
Warranty: SecuriCare five-year, no fault, no questions asked warranty
