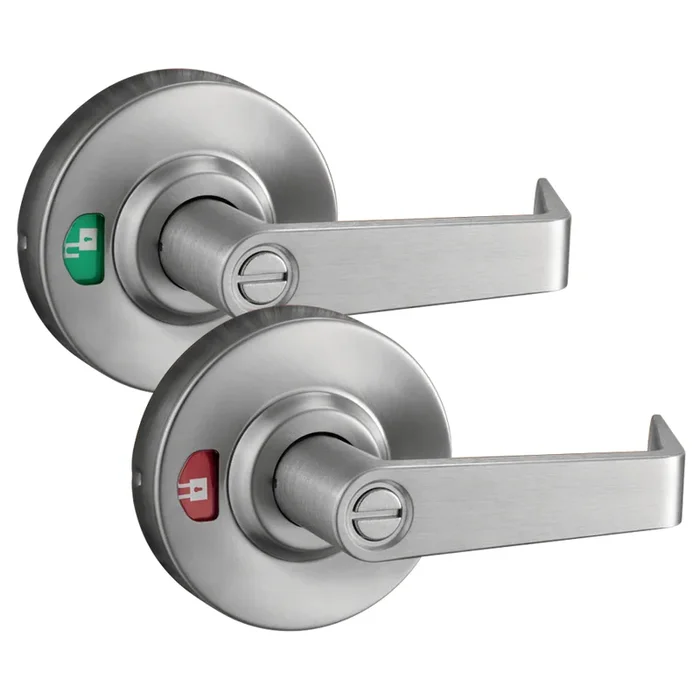

Arrow Lock APL02-ST-626-Q73 Sierra Lever Privacy Indicator Grade 1, 2-3/4in Backset, Satin Chrome
Arrow Lock Company APL02-ST-626-Q73 Privacy Indicator Sierra Lever Grade 1 is the ideal solution for enhancing privacy in commercial environments. This cylindrical lock features a user-friendly design with bright red and green status indicators, allowing users to easily check the lock status at a glance. Certified ANSI/BHMA A156.2 Grade 1 and UL/cUL listed for 3-hour doors, the APL02-ST delivers exceptional durability and performance. Its privacy function provides automatic unlocking when the inside lever is turned or the door is closed, ensuring seamless operation. The lock is suitable for a variety of applications, including restrooms, quiet rooms, nursing mothers’ rooms, dressing rooms, and conference rooms. Installation is straightforward, accommodating standard door preparations with a 2-1/8″ bore and through bolts. Designed to fit doors from 1-3/8″ to 1-3/4″ thick, the lock requires spacers for 1-3/8″ doors. The stainless steel latch features a 1/2″ throw and is engineered for high-use scenarios.Available in a sleek Satin Chromium Plated finish (626/US26D), this lock combines aesthetic appeal with functionality, making it an excellent choice for any professional setting. With a 3-year mechanical warranty, the APL02-ST is a reliable investment in security and privacy.
Privacy Indicator Sierra Lever Grade 1, 2-3/4in Backset, 626/US26D Satin Chrome (Use ARRAPL02-ST-626-UNV Universal Version with Both BacksetSpacer Plate if this Item is Out of Stock)
Notice: The info below is not item specific.
Arrow’s APL Series cylindrical lock with status indicators provides enhanced privacy at a glance with it’s bold green and red status symbols. This cylindrical lock is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.
Features:
- Bright red or green window display with padlock icon
- Ideal for retrofit applications
- Privacy function with automatic unlock when rotating inside lever or closing door
- Patent pending design
- Suitable for multiple applications
- Certified ANSI/BHMA A156.2 Grade 1 and UL/cUL listed for 3 hour doors
- 3-year mechanical warranty
- Status indicator window allows the user to clearly see if the door is locked or unlocked at a glance
- Quick and easy installation makes upgrading to accommodate a status indicator simple and cost effective
- Allows for one motion egress and prevents lockouts of unoccupied rooms
- Incorporating indicator in the lock, eliminates the need for a separate deadbolt and allows for one motion egress
- Meets strength and durability standards for high use applications
Applications:
- Restrooms
- Quiet Rooms
- Nursing Mother’s Rooms
- Dressing Rooms
- Conference Rooms
Specifications:
- Door Preparation: Requires standard 2-1/8″ (54mm) bore with through bolts.
- Backset: 2-3/8″ (60mm) or 2-3/4″ (70mm)
- Door Thickness: Fits 1-3/8″ to 1-3/4″, factory set for 1-3/4″. 1-3/8″ doors require the use of spacers.
- Latch: Stainless Steel 1/2″ (13mm) throw, UL Listed, spring latch
- Latch Front: 1-1/8″ x 2-1/4″ for 2-3/4″ (70mm) backset
- Strike: 4-7/8″ (ANSI (124mm)
- Handing: Non-handed
Finishes:
- 605/US3 – Bright Brass
- 613E/US10BE – Dark Oxidized Satin Bronze Equivalent
- 626/US26D – Satin Chromium Plated
- BSP – Black Suede Powder Coat
Attributes
Alternate Codes: APL02-ST-626-Q73, APL02ST626Q73
Category: Commercial Locks, Lock Sets
Door Application: Cylindrical Levers
Door Indicators: Exterior Indicator Padlock Icon – Locked/Unlocked, Interior Indicator Padlock Icon – Locked/Unlocked
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Privacy
Latchbolt Type: Springlatch
