Description

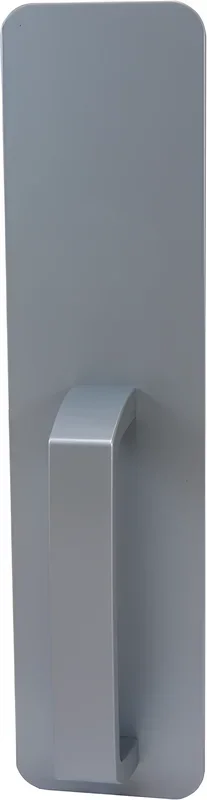

Von Duprin 230DT-689 22 Series 689 Aluminum Pull Dummy Trim
Von Duprin 230DT689 Pull Dummy Trim for 22 Series 689 Aluminum Finish delivers a robust solution for enhancing the functionality and aesthetic appeal of exit devices in public buildings. This dummy trim is expertly designed to be used with Von Duprin’s 22 Series devices, providing an effective pull option when dogged. Crafted from durable cast aluminum, it combines strength with a sleek aluminum finish that integrates seamlessly into various architectural styles. Measuring 3″ x 12-1/16″ x 3/32″ with a 2″ projection, the trim suits standard door thicknesses of 1-3/4″, making it an ideal choice for commercial applications. The non-handed design allows for versatile installation, accommodating a range of door orientations without the need for specific handedness considerations.While the 230DT689 is classified as a dummy trim and does not include a cylinder, it is backed by a limited warranty of 5 years for mechanical parts and 2 years for electro-mechanical components, ensuring peace of mind in your investment. This product exemplifies Von Duprin’s commitment to quality, having been proven to require significantly less maintenance over a 30-year period compared to other brands. Trust Von Duprin for reliable, high-performance hardware solutions that prioritize security and ease of use.
Pull Dummy Trim for 22 Series 689 Aluminum Finish
A mainstay in public buildings for decades Von Duprin’s safety products are known for their unparalleled quality and performance. From innovative exit devices to electronic access control solutions and accessories, Von Duprin never compromises when security is at stake. In fact, an independent study of more than 100 commercial facilities across the U.S. documented that Von Duprin exit devices require significantly less maintenance over a 30-year period than any other brand. The quality of Von Duprin’s exit devices provides confidence and peace of mind in critical moments.
- EO – No Outside Trim / Exit Only
- ANSI Function: 01
- DT – Dummy Trim / Pull When Dogged
- Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
- Projection: 1-31/32″ (42 mm)
- ANSI Function: 02
- NL – Nightlatch / Key Retracts Latchbolt
- ANSI Function: 03
- Cylinder Type: Rim
- NL-OP Night latch / Key retracts latchbolt optional pull required
- TP – Thumbpiece / Key Locks & Unlocks
- Escutcheon Plate Size: 3″ x 12-1/16″ x 3/32″ (76 x 306 x 2 mm)
- Pull Center to Center: 5-1/2″ (140 mm)
- Projection: 2″ (51 mm)
- ANSI Function: 05
- Cylinder Type: 1-1/4″ Mortise
- K – Knob / Key Locks & Unlocks
- Escutcheon Plate Size: 3″ x 4-25/32″ x 3/32″ (76 x 121 x 2 mm)
- Projection: 2-15/16″ (75 mm)
- ANSI Function: 08
- Cylinder Type: Furnished
- L – Lever / Key Locks & Unlocks
- Escutcheon Plate Size: 3″ x 6-3/8″ x 15/16″ (76 x 162 x 24 mm)
- Projection: 2-5/8″ (67 mm)
- Cylinder Type: 1-1/4″
- Cast Aluminum
- Pull When Dogged
- Used with the 22 Series Devices
- Non Handed
- Dummy Trim
Features
- Projection: 2 5⁄8″ (67 mm)
- DT: Dummy Trim
- ANSI Function: 15
- L-BE: Lever-blank escutcheon
- ANSI Function: 14
- NL: Nightlatch
- L: Lever
- Pull center to center: 5 1⁄2″ (140 mm)
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Projection: 2″ (51 mm)
- EO: Exit Only Plate
- Escutcheon Plate Size: 3″ x 12 1⁄16″ x 3⁄32″ (76 x 306 x 2 mm)
- ANSI Function: 05
- ANSI Function: 08
- Projection: 5 1⁄2″ (140 mm)
- ANSI Function: 02
- ANSI Function: 01
- TP: Thumbpiece
- Pull when dogged (not recommended for fire device)
- ANSI Function: 03
- Key retracts latch bolt
- Electrified lever operation available
- Escutcheon Plate Size: 3″ x 6 3⁄8″ x 15⁄16″ (76 x 162 x 24 mm)
- TP-BE: Thumbpiece blank escutcheon
- Blank escutcheon always operable (no cylinder, use with DT trim)
- Key locks and unlocks
- Always operable, no cylinder
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Alternate Codes: 121035, 230DT-28, 230DT-SP28, 230DT28, 230DTSP28, 894247, VON230DT-28, VON230DT-SP28, VON230DT28
Ansi: A156.3 2008
Application: 22 Series Devices
Baa Qualified: Yes
Burglar Rated: No
Category: Exit Devices
Commercial Residential: Commercial
Compatibility: 22 Series Exit Device
Country of origin: USA
Cylinder Type: Non-Keyed
Device Type: Trim
Dimension: 3″ x 12-1/16″ x 3/32″ with 2″ Projection
Door Application: Panic Device Trims
Door Material: Metal or Wood
Door Thickness: 1-3/4″
Door Type: Hollow Metal, Wood
Exit Device Type: Exit Trim
Finish: Aluminum
Finish Code: 689 (AL)
Finish Color: Satin Aluminum
Finish Family: Matte Silver
Fire Rated: No
Function: Dummy
Grade: Grade 1
Handing: Non-Handed
Hazardous Material: NO
Includes Cylinder: No
Installation: Commercial
Limited Warranty: 3 Years
Manufacturer: Von Duprin
Manufacturer Warranty: Limited 5 Year Mechanical and 2 Year Electro Mechanical Warranty
Material: Cast Aluminum
Mechanical Function: Dummy
No Of Inners: 1
Order_ Qty: 1
Origin: USA
PO date: 2024-09-03
Pack Height: 4.5″
Pack Length: 11″
Pack Qty: 1
Pack Volume: 297 in³
Pack Width: 6″
Restrictions: No
Reversible: Yes
Series: 22 Series
Ship Weight: 5 lbs.
Subcategory: Exit Device Trims
Subtype: Exit Device Trim
Supplier: Von Duprin
Trim Design: Escutcheon Pull
Trim Type: Pull
Type: PANIC DEVICES & EXIT ALARMS
Unit of Measure: Each
Resources
- 110, 210, 230 Series Trim Service Manual
- 110NL Cylinder Preparation Wood Door Template
- 210K Trim Wood Door Template
- 210NL Trim Wood Door Template
- 230L & 230L-BE Lever Control Wood Door Template
- 230NL Trim Wood Door Template
- 230TP & 230TP-BE Trim Wood Door Template
- 33A/35A Rim Device Trims Data Sheet
- 360/370 Series Control Trim Service Manual
- 360T, 360L, 360T-BE Control Wood Door Template
- 373-L & 373-L-BE Control Wood Door Template
- 374-T & 374-T-BE Control Wood Door Template
- 375-L & 375-L-BE Control for 5575 & 5575-F WDC Wood Door Template
- 376-T & 376-T-BE Control Wood Door Template
- 377-T & 377-T-BE Control Wood Door Template
- 386NL Trim Wood Door Template
- 388NL Cylinder Control Wood Door Template
- 392-6 Pull Wood Door Template
- 392-7 Pull Wood Door Template
- 550 DT Trim for 33/3550AWDC Wood Door Template
- 550NL Trim Wood Door Template
- 556NL Trim Wood Door Template
- 55NL Series Wood Door Template
- 606K & 606K-BE Trim Wood Door Template
- 606K-DT Trim Wood Door Template
- 606KR Trim Wood Door Template
- 608DT/NL Trim Installation Instructions
- 608NL Trim Wood Door Template
- 608TP & 608TP-BE Trim Wood Door Template
- 696/697TP/TP-BE Trim Installation Instructions
- 696NL & 697NL Trim Wood Door Template
- 696TP, 697TP, 696TP-BE, & 697TP-BE Trim Wood Door Template
- 880, 606, 608, 609 Series Trim Service Manual
- 880DT Surface Applied Trim for 8847/47-F Vertical Rod Device Installation Instructions
- 880K & 880K-BE Trim Wood Door Template
- 880K-DT Trim Wood Door Template
- 880KR Trim Wood Door Template
- 880NL Trim Wood Door Template
- 880TP & 880TP-BE Trim Wood Door Template
- 880TP & TP-BE Trim Wood Door Template
- 990 Series Outside Trim Service Manual
- 990DT EO Trim Installation Instructions
- 990NL Trim Wood Door Template
- 990TP & 990TP-BE Trim Wood Door Template
- 990TP/TP-BE/NL Trim 98/9975 Mortise Lock Device Installation Instructions
- 991K & 992L Trim Wood Door Template
- 991K-BE & 992L-BE Trim Wood Door Template
- 991K/K-BE, 992L/L-BE BE Trim Mortise Lock Device Installation Instructions
- 991KR & 992LR Trim Wood Door Template
- 992L Series Trim Active L to Rigid Conversion Kit Installation
- 994/996L & 994/996L-BE M Series Wood Door Template
- 996L & 996L-BE R/V Series Wood Door Template
- 996L-Rigid Series Wood Door Template
- Cut Sheet
- Cut Sheet
- M996L Series Installation Instructions
- M996L Series Retrofit Installation Instructions
- M996L/L-BE Motor Driven Electrified Trim Data Sheet
- SS333NL/TP Trim for 33/3527 Device Metal Door Installation Instructions
- Von Duprin 22/98/99 Series Device with Active Trim Cylinder Tailpiece Guide Retrofit Installation Instructions
- Von Duprin Finishes Chart
