Description

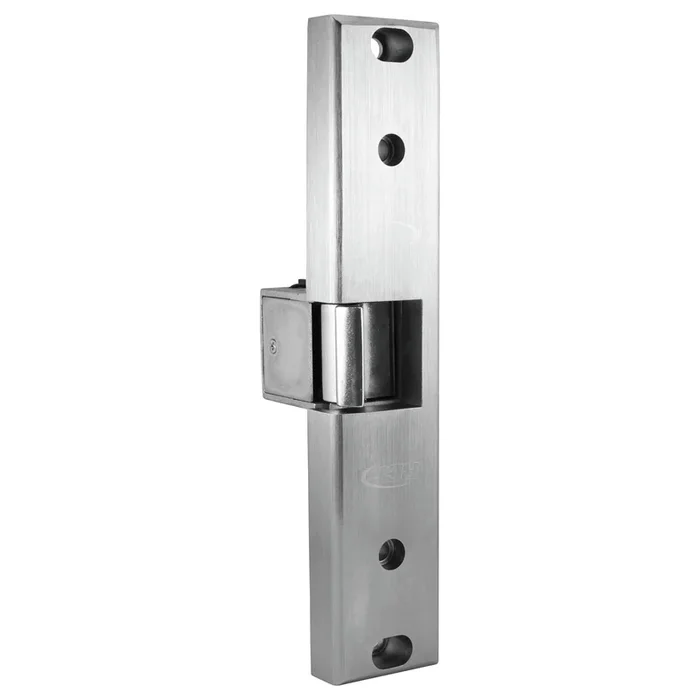

RCI 0161-08 32D 0 Series Rim Exit Strike
RCI 0161-08 32D 0 Series Rim Exit Strike offers a robust solution for secure access control in various environments. This electric strike is designed as a 3/4″ semi-mortise option, tailored for use with Pullman latch rim exit devices. Operating at 24VAC/DC, it features a fail secure function, ensuring that the door remains locked during a power failure, enhancing security without compromise. Constructed from durable satin stainless steel, the strike is not only resilient but also aesthetically pleasing with its matte silver finish. It accommodates latch projections ranging from 1/2″ to 3/4″ (13mm-19mm) and meets the ANSI/BHMA standard A156.31, Grade 1, with an impressive endurance rating of 500,000 cycles, making it suitable for high-traffic areas. Ideal for public buildings, controlled access spaces, fire-rated openings, and industrial settings, the RCI 0161-08 ensures seamless integration into both metal and wood frames. With a faceplate size of 9″ x 1-3/4″ and a depth of 3/4″, installation is straightforward for commercial applications. Backed by a limited 3-year warranty, this electric strike is a reliable choice for enhancing security and access management.
0 Series Rim Exit Strike
Electric Strike, 3/4″ Semi-Mortise for Rim Devices, 24VAC/DC, Fail Secure Satin Stainless Steel
Semi-mortise rim strike designed for use with Pullman latch rim exit devices . Accommodates 1/2″ to 3/4″ (13mm-19mm) latch projection. Certified to ANSI/BHMA standard A156 .31, Grade 1, endurance 500,000 cycles
Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
Attributes
Manufacturer surcharge: 9.0%
Amp Draw: .07 Amps at 24VAC, .11 Amps at 24VDC
Base Material: Stainless Steel
Commercial Residential: Commercial
Faceplate Depth: 3/4″
Faceplate Size: 9″ x 1-3/4″
Finish: 630/US32D
Finish Family: Matte Silver
For Use With: Rim Exit Devices
Frame Application: Metal or Wood
Function: Fail Secure
Installation: Commercial
Limited Warranty: 3 Years
Operating Voltage: 24 VAC/DC
Pack Qty: 1
Series: RCI Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 7.86E+11
