Description

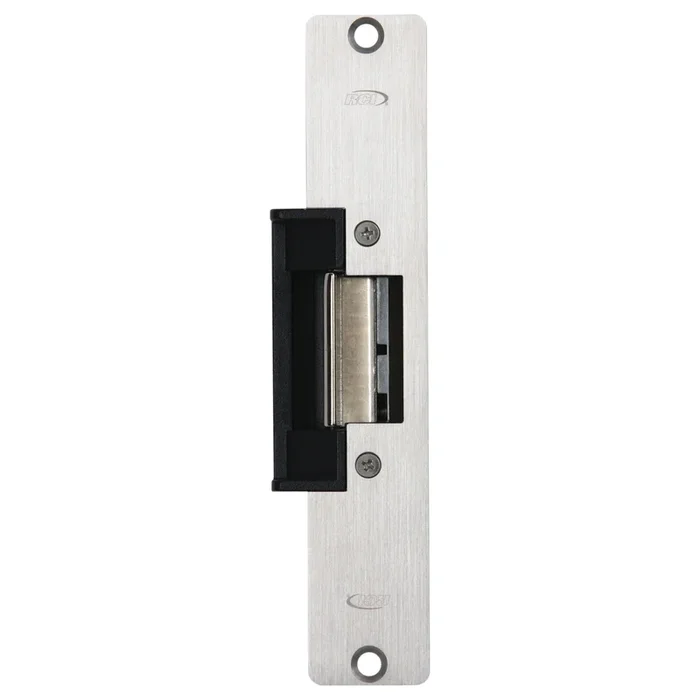

RCI 4108-08 32D 4 Series 24VAC/DC Strike Instructions
RCI 4108-08 32D 4 Series Strike 24VAC/DC delivers reliability and security for a variety of applications. Designed with a robust satin stainless steel finish, this electric strike features a 7-15/16″ round corner faceplate, making it a versatile choice for both metal and wood frames. Engineered to accommodate 3/4″ projection latches, it seamlessly integrates with cylindrical locks, mortise exit, and latch locks, ensuring compatibility across multiple systems. With its fail secure function, the RCI 4108-08 ensures that access control remains tight, particularly in public buildings, controlled access areas, fire-rated openings, and industrial environments. Operating on 24 VAC/DC, it draws a minimal 0.07 amps at 24VAC and 0.11 amps at 24VDC, providing an efficient solution without compromising performance. This electric strike is part of the RCI Electric Strikes series, and it comes with a limited three-year warranty, underscoring its quality and durability. The flat face with round corners not only ensures a sleek appearance but also enhances its adaptability to various installation types. Whether for commercial use or specialized environments, the RCI 4108-08 32D 4 Series Strike is engineered to meet your security needs effectively.
4 Series Strike 24VAC/DC
Electric Strike, 7-15/16″ Round Corner Faceplate, For 3/4″ Projection Latches, 24 VAC/DC, Fail Secure, Satin Stainless Steel
4 Series accommodates 3/4″ (19mm) latch projection . Various faceplate options available to accommodate most frame types .
Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
Attributes
Manufacturer surcharge: 9.0%
Amp Draw: .07 Amps at 24VAC, .11 Amps at 24VDC
Base Material: Stainless Steel
Commercial Residential: Commercial
Faceplate Shape: Flat Face, Round Corners
Faceplate Size: 7-15/16″ x 1-7/16″
Finish: 630/US32D
Finish Family: Matte Silver
For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
Frame Application: Metal or Wood
Function: Fail Secure
Installation: Commercial
Limited Warranty: 3 Years
Operating Voltage: 24 VAC/DC
Pack Qty: 1
Series: RCI Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
