Description

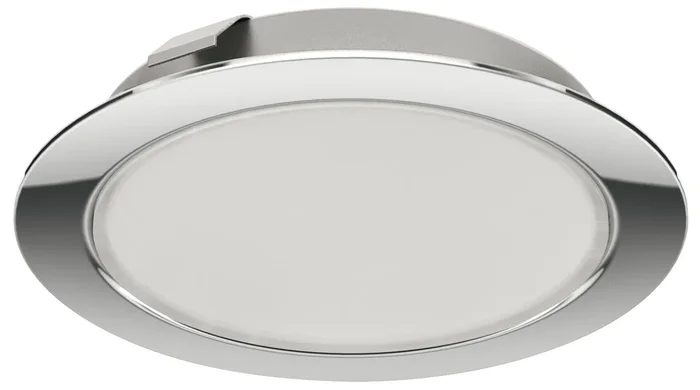

Hafele 833.72.310 Loox LED 2048 Recessed Multi-White Light, 12V
Hafele 833.72.310 Recess Mounted Light offers a sophisticated lighting solution for any area of your home, featuring the innovative Loox LED 2048 technology. This versatile fixture allows for seamless adjustment of light color and brightness, ranging from warm white to cool white, ensuring the perfect ambiance for any setting. With a drill hole diameter of 55 mm (2 3/16″), the polished chrome finish adds a touch of elegance to your interior decor. Designed for flexibility, this light can be recessed mounted or used with an optional surface-mounted housing. It is compatible with a multi-white mixer, which can manage up to 30 W and control up to 10 mixers within a 15 m (49’) radius. The dimmable functionality enables you to tailor the light intensity according to your needs. The Hafele 833.72.310 features a robust steel housing with an IP45 degree of protection, ensuring durability, while the installation is straightforward with clamp fixing. With a cable length of 2,000 mm and a wattage of just 3.00 W, it is an energy-efficient choice, consuming only 3.00 kWh per 1000 hours. Illuminate your spaces with this elegant and functional lighting solution, perfect for enhancing any ambient light in your furniture.
Recess Mounted Light, Multi-White, Hafele Lighting LED 2048, 12 V
Drill hole Dia.: 55 mm (2 3/16″), Polished chrome
Light color and brightness can be adjusted for any area of the house via multi white mixer Optional surface mounted housing provides flexibility in installation Dimmable via multi white mixer only Multi white mixer can handle up to 30 W; Max. 10 multi white mixers with 1 – 10 remote controls within a radius of 15 m (49’)
The light color can be adjusted continuously from warm white to cool white High-quality metal housing
The degree of protection IP45 is reduced to IP20 when using housing for undermounted light.
Attributes
Area of application: As ambient light in furniture
Cable length: 2,000.00 mm
Color temperature: 2700 – 5,000 K
Degree of protection: IP45 (recess mounted light); IP20 (surface mounted downlight)
Dimmable: yes
Drill hole Ø: 55.00 mm
Energy efficiency class: G
Height (inch): 1/2″
Housing color/finish: chrome plated, polished
Housing material: Steel
Installation: For mounting in drilled hole and for clamp fixing
Installation reference: Light color and brightness can be adjusted for any area of the house via multi white mixer Optional surface mounted housing provides flexibility in installation Dimmable via multi white mixer only Multi white mixer can handle up to 30 W; Max. 10 multi white mixers with 1 – 10 remote controls within a radius of 15 m (49’)
Light color: Warm white to cool white
Model: LED 2048
Nominal voltage: 12.00 V
Order reference: Color control via Häfele Connect Mesh 6-way distributor with multi-white adapter and remote control or smartphone. Please order separately. Installation of the free Häfele Connect Mesh app is required.
Refraction angle: 120.00 °
Supplied with: 2 m (78 3/4″) lead
Wattage: 3.00 W
Weighted energy consumption: 3.00 kWh/1000 h
Resources
- CAD data
- Declaration of conformity
- EU Declaration of Conformity
- Installation instructions
- Installation instructions for LED 2048
- Loox – Electrical Code Compliance
