Description

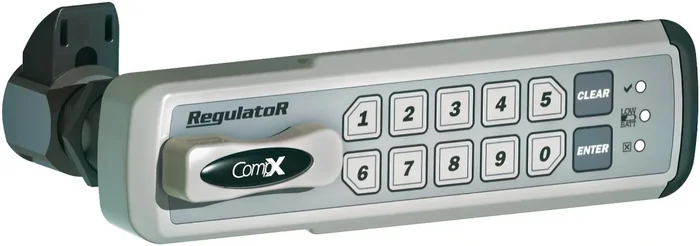

Compx REG-S-L-1 Regulator Self-Locking 7/16in Left
Compx Security Products REG-S-L-1 Regulator Self-Locking 7/16in Left offers a reliable locking solution designed to enhance security for a variety of applications. This self-locking model features SlamCAM technology, a spring-loaded latch that simplifies access-just close the cabinet door or drawer and the lock engages automatically, eliminating the need to manually turn a knob. Ideal for use in cabinet doors, lockers, storage enclosures, file cabinets, and computer server racks, the REG-S-L-1 is versatile enough to meet the demands of various markets, including healthcare, education, laboratories, office furniture, and retail display. It supports up to twenty unique codes-nineteen user codes and one supervisor code-ensuring robust access control with code lengths ranging from 4 to 8 digits. With a lifespan of 75,000 cycles and a low battery indicator, this lock minimizes maintenance costs while providing peace of mind. The battery compartment is conveniently located for easy access, and the lock can be installed on both wood and metal surfaces using a 3/4″ mounting hole. Additionally, the easy-to-clean membrane keypad is available in multiple configurations, making it adaptable to any installation need. Secure your valuable assets with the Compx REG-S-L-1 Regulator for dependable protection.
Regulator Self-Locking 7/16in Left
Notice: The info below is not item specific.
The Regulator is available in two versions: self-locking and manual locking. Self-locking Features: SlamCAM, a spring loaded latch, which allows the user simply to close the cabinet door or drawer — no need to return the knob to the locked position. Manual locking version, which uses existing CompX National cams, requires users to rotate the knob into the unlocked and locked positions.
Applications:
- Cabinet doors or drawers.
- Lockers.
- Storage enclosures.
- File cabinets.
- Computer server racks.
Markets:
- Healthcare / EMS.
- Schools / universities.
- Laboratory.
- Office furniture.
- Retail display.
Features:
- Twenty codes per lock: nineteen user codes and one supervisor code; code length is 4-8 digits.
- Available in two versions — self-locking featuring SlamCAM and manual locking.
- Low battery indicator.
- 75,000 cycles; extended battery life reduces replacement and labor/maintenance costs.
- Battery compartment is easily accessible from the outside of the cabinet.
- Four different keypad configurations: left hand, right hand, vertical bottom and vertical top (available in both self-locking and manual locking).
- Install on new or retrofit applications.
- Uses 3/4″ mounting hole.
Specifications:
- Self-locking:
- Self-locking, featuring SlamCAM.
- Spacers provide additional latching dimensions.
- 75,000 cycles – 2 AAA batteries included.
- Convenient external battery installation/removal.
- Low battery indicator.
- Three cylinder lengths – 7/16″, 1-3/16″, 1-3/4″.
- Easy to clean membrane keypad.
- 19 user codes and 1 supervisor code.
- Installs on wood or metal cabinet doors and drawers.
- Manual locking:
- 75,000 cycles – 2 AAA batteries included.
- Convenient external battery installation/removal.
- Low battery indicator.
- Three cylinder lengths – 7/16″, 1-3/16″, 1-3/4″.
- Uses existing CompX National cams with FlexaCam.
- Single use mode.
- Easy to clean membrane keypad.
- 19 user codes and 1 supervisor code.
- Installs on wood or metal cabinet doors and drawers.
Attributes
Alternate Codes: REG-S-L-1, REGSL1
Category: Cam & Drawer Locks Etc., Lock Sets
