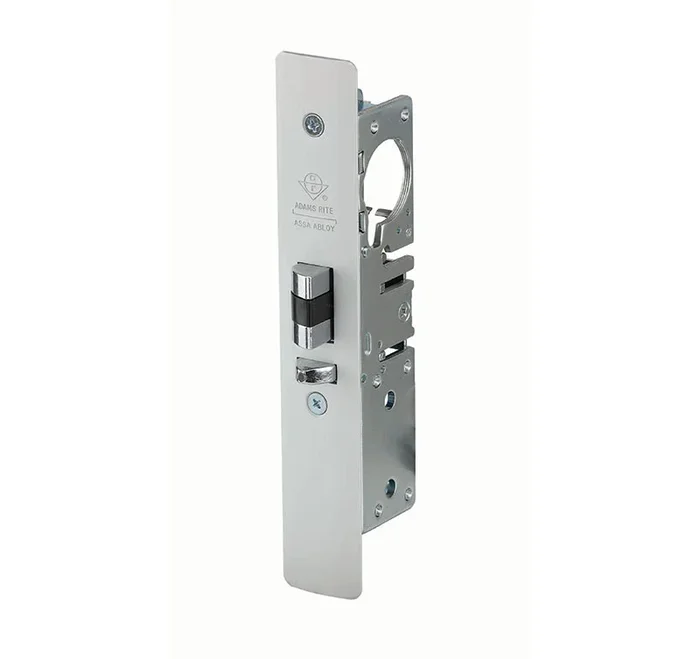

Adams Rite 4530-15-101-335 Retrofit DeadLatch, 7/8″ Backset
Adams Rite 4530-15-101-335 Retrofit DeadLatch 7/8 Backset is expertly designed to enhance security and traffic control in commercial settings. This standard duty deadlatch features a flat faceplate and is specifically crafted for a 7/8-inch backset, making it an ideal retrofit for older MS1850 deadlocks and discontinued 4250 deadlatches without needing any alterations. Flexibility is a key benefit of the 4530, which allows for two-way traffic through a simple reverse turn of the key while the bolt is held retracted. This functionality is particularly useful in environments such as hospitals and banks, where access needs can change throughout the day. The latchbolt is made entirely of metal with hardened steel internal pins, ensuring durability and reliability. Additionally, the deadlatch includes an auxiliary bolt that prevents unauthorized entry. With a case measurement of 1″ x 5-13/16″ and a latch throw of 1/2″, this model is suitable for doors with a thickness of 1-3/4″ to 2″. The package includes the necessary strike and mounting screws, and various cylinder backset options are available. Adams Rite’s 4530 deadlatch, individually boxed for convenience, exemplifies quality and functionality essential for modern security needs.
Retrofit DeadLatch 7/8 Backset
Standard Duty Retrofit Deadlatch, Flat Faceplate, 7/8 In. Backset, 4-5/8 In. Flat Mortised Strike, LH or RHR, Black Anodized
The 4530 Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. 4530 Deadlatches are designed to fit without alteration, the stile cutout for older MS1850 Deadlocks and discontinued 4250 Deadlatches of same backset. Turn key or operate handle to retract spring-loaded Latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Uses any standard mortise cylinder with MS cam. Standard strike furnished is 4901-01 for flat jamb. Available in three cylinder backsets, 7/8 In., 31/32 In. and 1-1/8 In.. Individually boxed with strike and machine screws for mounting. Cylinders, paddles, and handles available separately.
Designed to retrofit into the prep of older MS1850 Deadlocks and 4250 Deadlatches.
The 4530 Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times.
- Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
- Cylinder Backset: 7/8”, 31/32”, or 1-1/8” only
- Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
- Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
- Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.
- FaceplateF: Measures 1-1/4” x 7-13/32”.
- Strikes: Standard strike furnished is 4901-01 for flat jamb. For dimensions of this as well as radiused and/or short strikes seeACCESSORIES.
- Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
- Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering. For information on handles and paddles seeTRIM.
- Standard Package: Individually boxed with strike and machine screws for mounting. Cylinders, paddles, and handles available separately. Shipping weight: 1-1/4 lbs.
Attributes
Baa Qualified: Yes
Base Material: Aluminum
Bolt Projection: 1/2″
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Less Cylinder
Door Thickness: 1-3/4″ – 2″
Dust Box: Plastic
Finish: 315/335
Function: Narrow Stile Latch Lock
Handing: Field Reversible
Installation: Commercial
Limited Warranty: 5 Years
Lock Face Size: 7-13/32″ x 1-1/4″
Origin: USA
Pack Height: 2.13″
Pack Length: 8.88″
Pack Qty: 1
Pack Volume: 61.29 in³
Pack Width: 3.25″
Pbs Options: 10371975,10390932,10393728
Product Height: 1.52″
Product Length: 7.41″
Product Width: 1.25″
Screws: Machine
Series: 4530 Standard Duty Deadlatch
Ship Weight: 1.25 lbs.
Std Latch Backset Dim: 7/8″
Std Latch Type: Guarded Latch
Std Strike Height: 4-5/8″
Std Strike Number: 4901-01
Std Strike Type: Mortise
Std Strike Width: 1-9/16″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 4510/4530 Series Deadlatch Installation Instructions
- 4510/4530 Series Re-handing Instructions
- 4530 Catalog Page
- 4530 Standard Duty Deadlatch Cut Sheet
- What is Backset and How Do I Measure it?
