Description

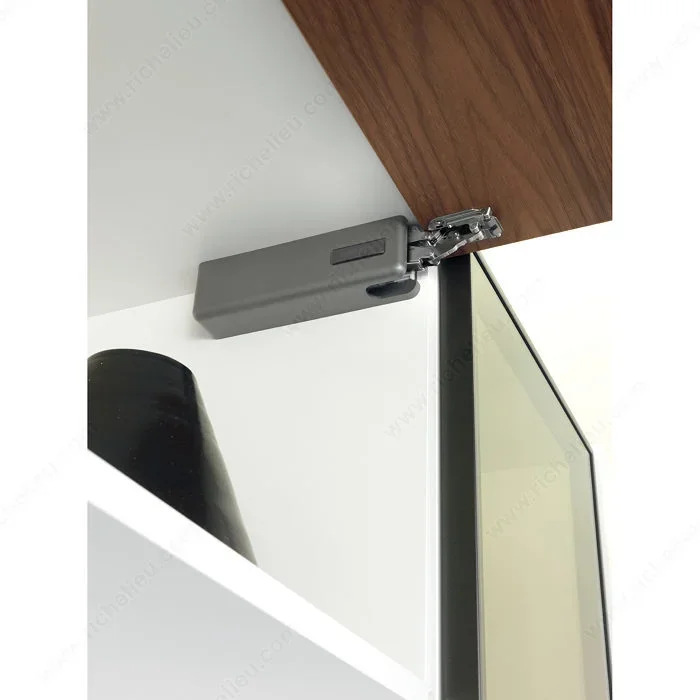

Richelieu FRAKFEPSSN9 Wind Lift System – Push Instructions
Richelieu FRAKFEPSSN9 Wind Lift System – Push offers a cutting-edge solution for flap doors, characterized by its compact design and elegant functionality. This innovative lift system is specifically engineered for modern kitchens, where space efficiency and aesthetic appeal are paramount. The integrated damping system ensures a soft closing action, while the push-to-open feature provides a handle-free experience, enhancing the overall look of your cabinetry. Designed to accommodate door thicknesses ranging from 16 mm (5/8″) to a maximum of 28 mm (11/8″), the Wind Lift System allows for overlays between 16 mm to 20 mm. Installation is straightforward, with door drilling ranging from 3 mm to 7 mm at the edge, making it adaptable to various design requirements.In terms of fine-tuning, the system offers depth adjustment of -1 mm to +3 mm, lateral adjustment of +2 mm to -2 mm, and height adjustment of +2 mm to -2 mm, ensuring a precise fit for every application. With a hinge opening angle of +94°, this system supports lift-up opening types, making it ideal for wood doors with heights between 8 21/32 to 23 5/8 inches. Elevate your cabinetry with the Richelieu Wind Lift System for a seamless blend of style and practicality.
Wind Lift System – Push
Wind is a new innovative lift door system for flap doors. It stands out for its compact size, elegance and discretion. Thanks to its small size, it takes up minimal space, which makes it ideal for flap doors that are common in kitchens. The Wind Lift System contains an integrated damping system, for a soft closing or a push-to-open system for doors without a handle.
– Opening pressure mechanism (Push series)
– Door thickness – maximum: 28 mm (11/8″), minimum: 16 mm (5/8″)
– Overlay from 16 mm to 20 mm
– Drilling of the door from 3 mm to 7 mm of the edge
– Depth adjustment: -1 mm, +3 mm
– Lateral adjustment: +2 mm, -2 mm
– Height adjustment: +2 mm, -2 mm
Attributes
Brand: Salice
Door Height: 320 to 610 mm
Door Type: Wood Door
Hinge Opening Angle: +94°
Load Capacity: 6.2 to 18.6 kg
Opening Angle: 94°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 4 641 to 5 888
Product #: FRAKFEPSSN9
Product number: FRAKFEPSSN9
Product №: FRAKFEPSSN9
System Name: Wind S
Unit: Box
Unit 1: case – 10
Unit 2: case – 10
Resources
- Datasheet
- Instructions
- Instructions
- Instructions
- Line art
- Line art
- Line art
