Description

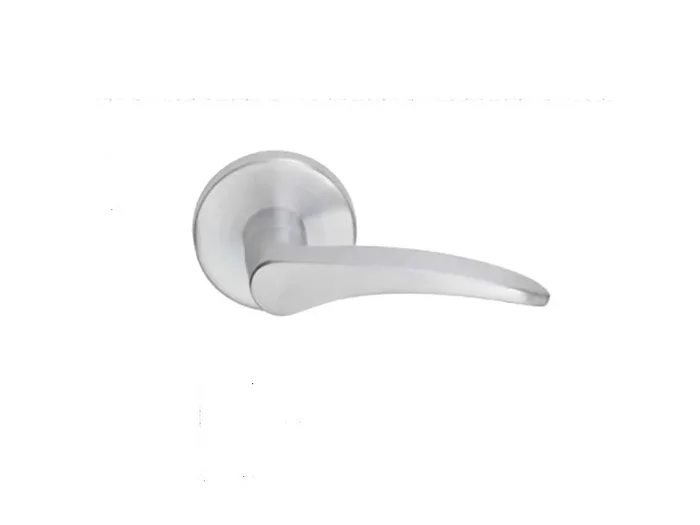

Schlage L9473P12A626RH Right Hand Dormitory Mortise Lock C Keyway, 12 Lever, Satin Chrome
Schlage Commercial L9473P12A626RH Right Hand Dormitory / Bedroom Mortise Lock offers a blend of security and style, making it an ideal choice for various residential and commercial environments. Featuring a robust C keyway and a sleek satin chrome finish, this lockset not only enhances the aesthetic appeal of any door but also provides reliable performance. Designed specifically for dormitory and bedroom applications, the lockset accommodates doors with a thickness of 1-3/4″ and utilizes a 2-3/4″ backset for versatile installation. The 12 lever design paired with an A rose ensures a modern and sophisticated look, while the 1-1/4″ x 8″ latch faceplate and ANSI strike guarantee durability and compatibility with standard door frames. With a 6-pin cylinder and a single inner configuration, this lockset is engineered for security without compromising ease of use. It is UL Listed for 3-hour fire door applications, adding an extra layer of safety. Backed by a 3-year limited mechanical warranty and a 1-year limited electromechanical warranty, the Schlage L9473P is a trusted choice for those seeking quality and reliability in door hardware. Whether for new construction or renovation, this mortise lockset stands as a testament to Schlage’s commitment to excellence.
Right Hand Dormitory / Bedroom Mortise Lock C Keyway with 12 Lever and A Rose Satin Chrome Finish
- Dormitory / Bedroom, Latchbolt Retracted by Knob/Lever From Either Side, Deadbolt Thrown or Retracted by Key Outside or Thumbturn Inside
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
Attributes
Ansi Function: F21 – Entry Office
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latch, 1″ Deadbolt
Bolt Protection: 3/4″ Latch, 1″ Deadbolt
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Design: 12 Lever and A Rose
Dimension: 2-1/8″ Rose with 4-5/8″ Lever and 3-1/16″ Projection
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish : Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9473-Dormitory Bedroom Lock
Grade: Grade 1
Hand: RH
Handing: Right Hand
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: S123
Latch Faceplate Dimension: 1-1/4″ x 8″
Lever Knob Design: 12 – Lever
Leverknob Design: 12 Lever
Limited Warranty: 3 Years
Lock Face Size: 8″ x 1-1/4″
Manufacturer Warranty: 3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Pins: 6
Rose Escutcheon Design: A – Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Keyway: S123
Std Strike Height: 4-7/8″
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike: ANSI Strike
Strike Dimension: 4-7/8″ with 1-1/4″ Lip
Strike Height: 4-7/8″
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4″
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
