Description

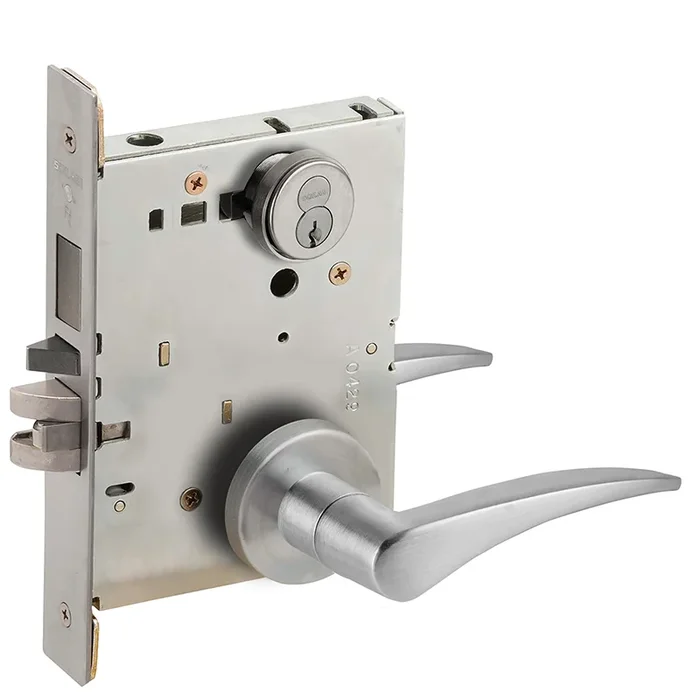

Schlage L9453R12A626RH Right Hand Entry Office Mortise Lock, Deadbolt, IC Core, Satin Chrome
Schlage Commercial L9453R12A626RH Right Hand Entry / Office with Deadbolt Mortise Lock offers a robust solution for securing entryways in both residential and commercial spaces. Designed with a large format IC core C keyway, this lock ensures enhanced security and flexibility. The satin chrome finish not only adds a modern touch but also provides durability against wear and tear. This lock features a 2-3/4″ backset, making it a versatile option for various door configurations. With a sleek design that includes a 2-1/8″ rose and a 4-5/8″ lever, it combines functionality with aesthetic appeal. The 3-1/16″ projection allows for easy operation, while the ANSI strike ensures a reliable and secure fit. Designed for right-hand applications, the L9453 model is perfect for entry or office use, providing both a deadbolt and mortise lock function for added security. Whether for a busy office environment or a private entryway, this lock meets the demands of daily use with grace and efficiency. Schlage’s commitment to quality ensures that this lock will stand the test of time, making it an ideal choice for professionals seeking reliable architectural hardware solutions.
Right Hand Entry / Office with Deadbolt Mortise Lock with Large Format IC Core C Keyway with 12 Lever and A Rose Satin Chrome Finish
- Entry/Office Lock with Deadbolt, Latchbolt Retracted by Either Side, Locked by 20° Turn, Bolt Thrown by 90° Turn, Key or Handle Retracts Dead and Latchbolt, Locked Until Turn Restored Upright, Auxiliary Deadlocks Latchbolt, Inside Always Free
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
Attributes
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Category: Mechanical Commercial Locksets
Country of Origin: Mexico
Design: NULL
Dimension: 2-1/8″ Rose with 4-5/8″ Lever and 3-1/16″ Projection
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Finish: Satin Chrome
Finish Code: 626
Finish : Satin Chrome
Fire Rated: 3 Hours {A}
Function: Entry / Office with Deadbolt
Grade: Grade 1
Handing: Right Hand
Hazardous Material: NO
Keyway: C Keyway
Latch Faceplate Dimension: 1-1/4″ x 8″
Lever Knob Design: 12 Lever
Limited Warranty: 3 Years
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Order_ Qty: 1
Rose Escutcheon Design: A Rose
Series: L Series
Strike: ANSI Strike
Strike Dimension: 4-7/8″ with 1-1/4″ Lip
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
