Description

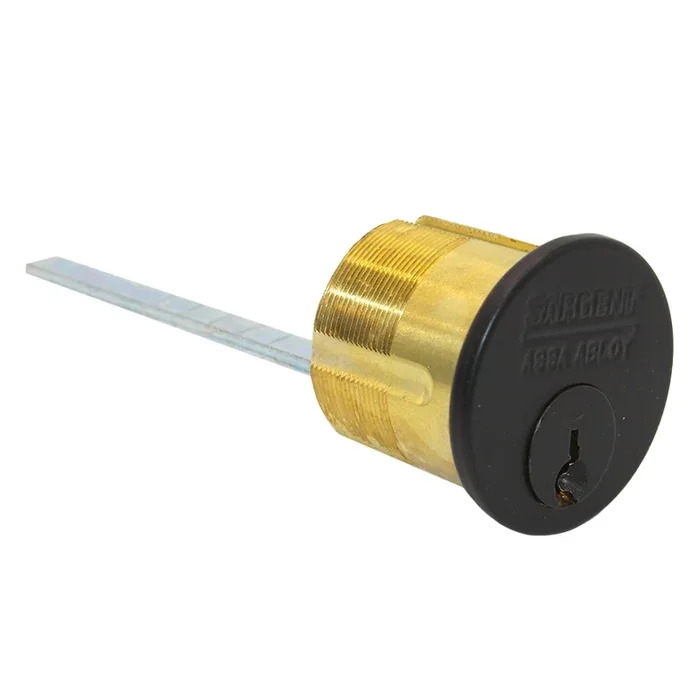

Sargent 34 RC BSP Rim Cylinder
Sargent Rim cylinders are made from solid brass and have a brass, bronze or stainless steel face cap available in all architectural finishes. They are furnished standard with number 97 rosette and compression spring, and break off screws and tailpiece. Tailpieces are horizontal only.
Features
- Cap: Brass, bronze or stainless steel
- Horizontal tail piece only
- Plug finishes: 4, 15
- 27/32″ (21mm) screw pattern for through-bolted Sargent exit devices
- Door Thickness when used with outside trim: 2-3/8″ to 3-1/4″ (60mm to 82mm)
- Furnished standard with No. 97 rosette and compression spring, “break-off” screws and back plate
- Door Thickness when used with outside trim: 2-1/2″ to 3-1/2″ (64mm to 89mm)
- Cylinder finishes: 3, 4, 9, 10, 10B, 10BE, 10BL, 15, 20D, 32, 32D
- Cylinder: Solid brass
- Dim. A (Min.): 1-1/16″ (27mm)
- For 7 pin specify “7 pin”
- 6 pin standard
- Dim. A (Min.): 1-7/32″ (31mm)
Attributes
Alternate Codes: 34-RC-BSP, 34RCBSP
Baa Qualified: Yes
Category: Cylinders, Key Blanks & Accessories, Lock Components, Etc., Lock Parts, Lock Sets, Rim Cylinders
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Rim Cylinder
Finish: BSP
Finish : Black Suede Powder Coat
Finish Family: Black
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Of Keys: 2
Origin: USA
Pack Height: 1.88″
Pack Length: 4.13″
Pack Qty: 1
Pack Volume: 18.37 in³
Pack Width: 2.38″
Pins: 6
Series: Rim Cylinders
Ship Weight: 0.53 lbs.
Std Keyway: RC
Subtype: Rim Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- Rim Cylinders Cut Sheet
