Description

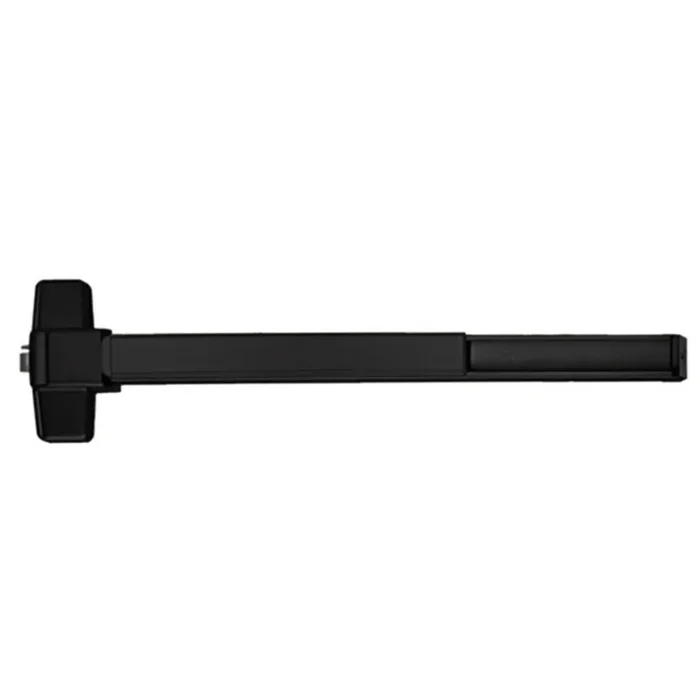

Marks Hardware M9900F-10B-48 (19 BLACK) Fire Rated Rim Exit Device, Hex Key Dogging, 48 in, Grade 1, Flat Black
Marks Hardware M9900F-10B-48 Rim Exit Device offers a robust and reliable solution for high-impact environments like schools, universities, and commercial buildings. This fire-rated device is designed for easy installation and retrofits all popular preps, making it a versatile choice for any project. Constructed with a heavy-duty cast chassis and an ultra-durable, heavy-gauge aluminum rail assembly, it stands up to rigorous use while minimizing catch hazards through its smooth, reduced projection touch-bar assembly. The M9900F-10B-48 features a solid beveled panic protector end cap and a stainless steel dead latch bolt with a 3/4″ throw, ensuring maximum security and durability. With a 3-hour fire rating and compliance with ANSI BHMA A156.3 grade 1 and ANSI/UL305 standards, this exit device is ideal for panic situations. The hex key dogging mechanism allows for straightforward operation, while the non-handed design provides installation flexibility. Available in a sophisticated matte black finish, this model not only meets safety standards but also enhances the aesthetic appeal of your entrance. Backed by a lifetime mechanical warranty, the Marks Hardware M9900F-10B-48 is the perfect choice for those seeking a reliable and stylish exit solution.
Rim Exit Device, Fire Rated, Less Trim, Hex Key Dogging, 48 in, Grade 1, 622/US19 Flat Black Powder Coat (10B not Available, made in 19 Black)
Notice: The info below is not item specific.
The M9900 panic exit devices offer a simple, heavy-duty, easily installed solution where high quality panic and fire listed hardware is needed. These extremely durable, grade 1 exit devices are perfect for high impact applications such as schools, universities and other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touch-bar assembly minimizes catch hazards and mitered steel flush mounted panic protector end caps, prevent abuse. Other variations include the M9900 VR, with a vertical rod, and M9900 lockdown with visual lockdown indicator. M8800 Narrow stile exit device is designed for use on all types of narrow stile single and double doors, of 36″ door width, and conveniently, non-handed for installation flexibility. Marks also stands behind its products with a lifetime mechanical warranty, an industry first. In compliance with ANSI BHMA A156.3 grade 1, ANSI/UL305 panic hardware and 2013 CA building code 11B-309.4, etc.
Features:
- Popular M9900 series, proven performance for high impact applications such as schools, universities and other institutional or commercial buildings, retrofitting all popular preps
- Choice of finishes and matching lever handles: Satin stainless US32D & trendy new matte black US19
- Ultra-durable, heavy-gauge extrusion with varying device lengths
- Solid flush mounted panic protector end cap & popular smooth case
- Easy installation and retrofits all popular preps.
- ANSI 156.3 (2001), grade 1
- 3 Hour fire-rated dead latch bolt; stainless steel 3/4″ throw
- Miami-Dade hurricane version available
- Electronic latch retraction, REX, digital access, alarmed and delayed egress models available
- Narrow stile (M8800 series) ideal for glass door applications
- New! lockdown model (M99LD series) with clear view visual lockdown Indicator on inside, red or green, confirms outside handle is open or locked-down
- Key or T-turn on inside toggles the outside trim (included), with choice of finishes & many cylinder options, i.e., IC core
- Field reversible for easy stock and field application
Specifications:
- End Cover: Solid beveled “panic protector” design
- Strike: Roller strike
- Rail Assembly: Heavy gauge aluminum
- Dead latch Bolt: Stainless steel 3/4″ throw
- Dead latch Bolt: Stainless steel 5/8″
- Dogging feature: Allen key (M9900)
- UL listed: For “panic hardware” and fire rated model 3 hour fire doors up to 38″ x 86″
- ANSI: ANSI 156.3 (2001), requirements for grade 1
- 3 Hour fire rating
Finishes:
- 19 – Matte black
- US32D – Satin stainless
Attributes
Alternate Codes: M9900F-10B-48, M9900F10B48, M9900F-10B-48 (19 BLACK), M9900F10B48(19BLACK), MARM9900F-10B-48
Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Certifications: A156.3, ANSI, UL Listed 3 Hour
Device Width: 48″
Dogging: HD – Hex Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim Exit
Finish Code: 613E
Finish Color: Dark Oxidized Satin Bronze
Fire Rated: Yes
Fire Rating: 180 min
Grade: Grade 1
Handing: Non-Handed
Manufacturer: Marks USA
Series: M9900
Strike Type: Roller Strike
Throw: 3/4″
